Henan Pvdf Pipes, Pvdf Pipe Prices

Henan Pvdf Pipes, Pvdf Pipe Prices thumbnail-1
Henan Pvdf Pipes, Pvdf Pipe Prices thumbnail-2
Henan Pvdf Pipes, Pvdf Pipe Prices thumbnail-3
Henan Pvdf Pipes, Pvdf Pipe Prices photo-1

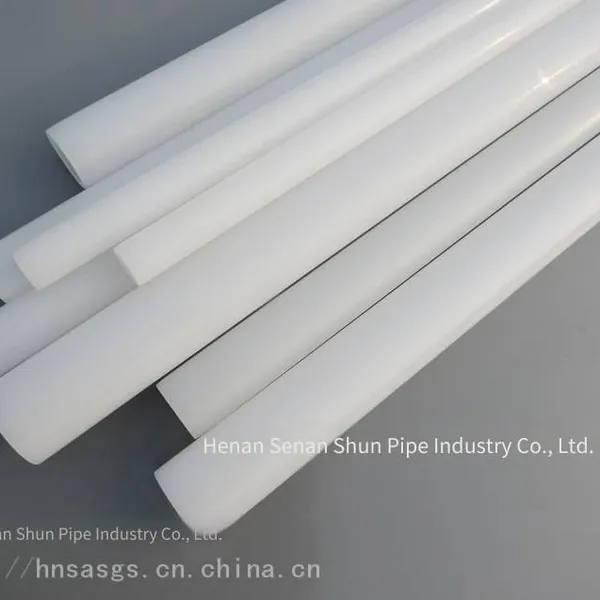

Henan Pvdf Pipes, Pvdf Pipe Prices photo-2
Henan Pvdf Pipes, Pvdf Pipe Prices photo-3
US$ 13.69 5 - 49 Meters
US$ 13.23 50 - 99 Meters
US$ 13.08 ≥100 Meters
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Zhengzhou, Henan, China
Contact Supplier Request Quote Chat Now
Henan Senanshun Pipe Industry Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Introduction
Product Description

  • Production Process:

  •   PVDF (Polyvinylidene Fluoride) mainly refers to the homopolymer of vinylidene fluoride or the copolymer of vinylidene fluoride and other small amounts of fluorine-containing vinyl monomers. Its appearance is translucent or white powder or granules. The molecular chains are closely arranged, and there are strong hydrogen bonds.

  • Product Advantages:

  •  PVDF In addition to having good chemical corrosion resistance, high-temperature resistance, oxidation resistance, weather resistance, and radiation resistance, it also has special properties such as piezoelectricity, dielectricity, and thermoelectricity. It has good chemical resistance, processability, and resistance to fatigue and creep. It is one of the materials for the overall valves, pipes, pipeline fittings, storage tanks, and heat exchangers in the fluid handling systems of petrochemical equipment. Its good chemical stability and electrical insulation performance enable the manufactured equipment to meet the requirements of TOCs and flame retardancy, and it is widely used in the storage and transportation of industries such as petrochemical, power electronics, semiconductor industry, and high-purity chemicals. Storage and transportation of high-purity chemicals in the semiconductor industry

  • Common Materials:

  • PVDF Pipe Parameters

  • Characteristics



    Inspection Method



     Unit of measurement

     Value

    Density

    ISO 1183

    g/cm3

    1.78

    Water absorption (23℃ 24H)

    ISO 62

    %

    ＜0.04

    Melt flow index (230℃, 5kg)



    ASTM1238/ISO

    1133

    g/10min

    6

    Vicat softening temperature

    ISO 306

    ℃

    140

    HDT bending temperature

    143-147

    Flexural Modulus

    ASTM D790

    MPa= N/mm2

    2200

    IZOD Notched Impact Strength I

    ASTM D256

    J/m

    65

  • Product Specifications:

  •    Code

    Size (DN)

      D mm

          Name and Content  Detail

      S mm

    Weight (Kg)  Weight

    100106301

    50

    63

    63-MOP 10PN

    1.9

    0.68

    100107501

    65

    75

    75-MOP 10PN

    1.9

    0.86

    1001009001

    80

    90

    90-MOP 10PN

    2.8

    1.21

    1001011001

    100

    110

    110-MOP 10PN

    3.4

    1.77

    1001012501

    100

    125

    125-MOP 10PN

    3.9

    2.31

    1001014001

    125

    140

    140-MOP 10PN

    4.3

    2.9

    1001016001

    150

    160

    160-MOP 10PN

    4.9

    3.74

    1001018001

    150

    180

    180-MOP 10PN

    5.5

    4.66

    1001020001

    200

    200

    200-MOP 10PN

    6.2

    5.72

    1001022501

    200

    225

    225-MOP 10PN

    6.9

    7.24

    1001025001

    250

    250

    250-MOP 10PN

    7.7

    9.06

    1001028001

    250

    280

    280-MOP 10PN

    8.7

    11.22

    1001031501

    300

    315

    315-MOP 10PN

    9.8

    14.09

    1001035501

    350

    355

    355-MOP 10PN

    11.3

    17.89

    1001040001

    400

    400

    400-MOP 10PN

    12.5

    22.70
Product actual shot
Double-click to add picturesRecommended size: 350*350

Product function:

The pipeline materials for the transportation of high-purity water and ultra-pure water are all made ofPVDF pipes. Due to the good chemical stability, cleanliness, smoothness and other properties of PVDF pipes, they have been widely used in the microelectronics industry and achieved good social and economic benefits.

Product function:


PVDF pipes have good chemical stability, chemical corrosion resistance and heat stability.

It can be used for a long time in the temperature range of -62℃ - +150℃, and can resist all salts, acids, alkalis, aromatics, halogens and other media except strong solvents.

Product features

  • Product function:

  • PVDF material has good chemical stability and super weather resistance. It has good anti-corrosion effects on general acids, alkalis and salts, and is especially suitable for pipelines of corrosive media such as strong acids and mixed acids. Therefore, it is often used in industries such as petrochemical, power electronics, semiconductor industry and high-purity chemicals.

  • Production process:

  • PVDF is flame-retardant, resistant to fatigue and not easy to break, wear-resistant, has good self-lubricating performance, and is a good insulating material.

  • It has high mechanical strength, large tensile strength, and large compressive strength. Its wear resistance is outstanding. When temperature and pressure exist simultaneously, its performance is far superior to other plastic pipes. It is mainly used for the transportation of corrosive media in fields such as waste acid recovery and regeneration in the smelting industry.

Company Introduction
Company Profile:

 Henan Senanshun Pipe Industry Co., Ltd. is a company specializing in the one-stop service of development, sales, and installation of sheets, bars, and plastic pipe systems of UPVC, CPVC, ABS, CL-PVC, HT-PVC, PP, PPH, PVDFABS, PC, PA, POM, PETP, PBT, PEI, PES, PSU, PPS, COC, LCP, PEEK, PI, PE, PVC, etc. It has rich construction experience and strong technical strength. Our company's products are well - sold at home and abroad for their reliable quality, reasonable design, beautiful appearance, and fast installation. They are widely used in environmental protection, oil fields, hot springs, pharmaceuticals, semiconductors, food, chlor - alkali, fire protection, steel, nuclear power, bio - engineering, electronics, power, metallurgy, municipal, hotels, and water treatment industries, etc.
           Our product standards include DIN, ANSI (SCH80, SCH40), BS, JIS, CNS, etc. We base on integrity, take quality asthe core, and seek development through reputation. We always establish long - term and friendly trade relations with domestic and foreign customers on the basis of equality and mutual benefit. We warmly welcome domestic and foreign customers to call or write for business negotiation.

After - sales Instructions
  • 1. Logistics and Distribution



  • 2. Payment Method



  • 3. Return and Exchange Policy



  • 4. Invoice Issuance
