Pph Flanged Diaphragm Valve

Pph Flanged Diaphragm Valve thumbnail-1
Pph Flanged Diaphragm Valve thumbnail-2
Pph Flanged Diaphragm Valve thumbnail-3
Pph Flanged Diaphragm Valve photo-1

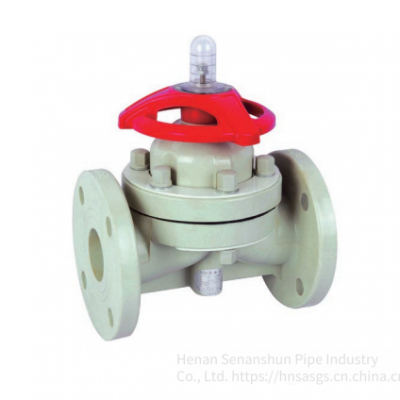

Pph Flanged Diaphragm Valve photo-2
Pph Flanged Diaphragm Valve photo-3
US$ 86.15 1 - 9 Piece
US$ 81.54 ≥10 Piece
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Zhengzhou, Henan, China
Contact Supplier Request Quote Chat Now
Henan Senanshun Pipe Industry Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Introduction
Product Description

  • Production Process: The PPH diaphragm valve is a new type of valve and a special form of shut-off valve. Its opening and closing part is a diaphragm made of soft material, which separates the inner cavity of the valve body from the inner cavity of the valve cover and the driving parts.

  • Product Advantages: PPH diaphragm valve is equipped with a flexible diaphragm or a combined diaphragm inside the valve body and valve cover. Its closing part is a compression device connected to the diaphragm. The valve seat can be weir-shaped or the pipe wall of the straight-through flow passage.

  • Commonly Used Materials:

  • Nominal diameter

    DN15-DN250

    Standard

    ANSI/DIN

    End type

    Flanged

    Body

    UPVC/CPVC/PVDF/PPH

    Diaphragm

    EPDM/FPM/PTFE

    Sealing material - Solid end O-ring

    EPDM/FPM

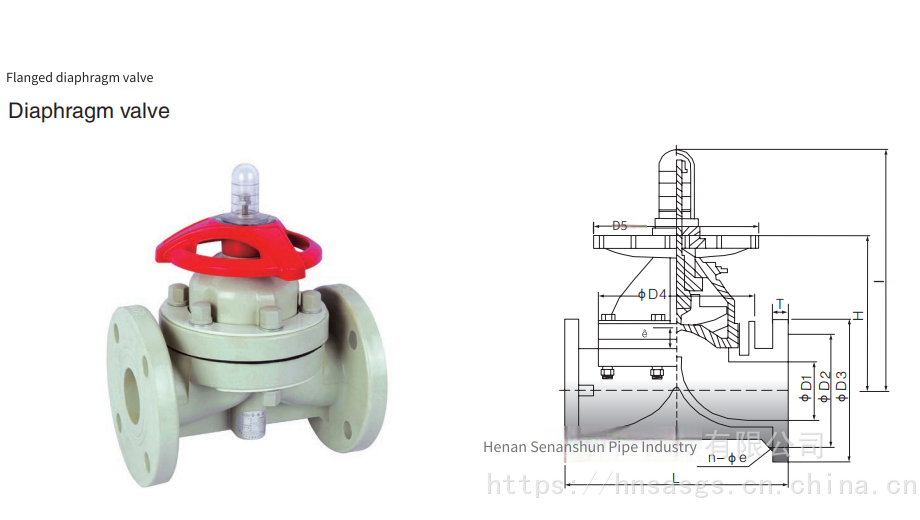

  • Product specifications:

  •    Code

    Size (DN)

    D1

    mm

    D2

    mm

    D3

    mm

    n-Φe

    D4

    mm

    D5

    mm

    Lift E

    L

    mm

    T

    mm

    H

    mm

    I

    mm

    301202001

    15

    16

    65

    95

    4-Φ14

    59×53

    94

    13

    130

    23

    101

    140

    301202501

    20

    20

    75

    105

    4-Φ14

    74×63

    94

    13

    150

    23

    106

    152

    301203201

    25

    25

    85

    115

    4-Φ14

    80×66

    94

    14

    160

    23

    113

    158

    301205001

    40

    41

    110

    150

    4-Φ18

    126

    147

    24

    200

    23

    133

    193

    301206301

    50

    52

    125

    165

    4-Φ18

    148

    147

    28

    230

    21

    145

    210

    3017501

    65

    68

    145

    185

    4-Φ18

    190

    202

    32

    290

    22

    197

    276

    301209001

    80

    78

    160

    200

    8-Φ18

    215

    202

    34

    310

    22

    218

    293

    3012011001

    100

    100

    180

    220

    8-Φ18

    255

    241

    54

    350

    25

    261

    370

    3012014001

    125

    125

    210

    250

    8-Φ18

    320

    274

    72

    400

    24

    308

    412

    3012016001

    150

    148

    240

    285

    8-Φ23

    385

    395

    72

    480

    30

    334

    471

    3012022501

    200

    198

    295

    340

    8-Φ23

    430

    395

    96

    600

    32

    419

    625

    3012025001

    250

    248

    350

    395

    12-Φ23

    540

    555

    132

    680

    32

    510

    750

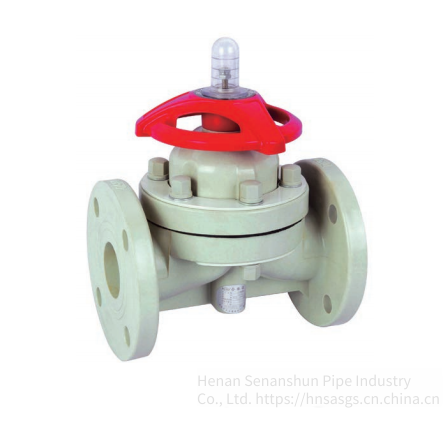

Actual product photos
Product function:

PH pipes are widely used in chemical plants,metallurgy,electronic semiconductor factories, pharmaceutical factories, sewage treatment plants. They are widely applied in high - acid and high - alkali chemical product transportation systems, pure water transportation systems, drinking water transportation systems, sewage and wastewater transportation systems, environmental engineering and general pipeline systems.fieldsapplicationsetc.

Product function:

PH pipes are widely used in chemical plants,metallurgy,electronic semiconductor factories, pharmaceutical factories, sewage treatment plants. They are widely used in high-acid and high-alkali chemical product transportation systems, pure water transportation systems, drinking water transportation systems, sewage and wastewater transportation systems, environmental engineering, and general pipeline systems.fieldsapplicationsetc.

Product features

  • Product function: The advantage of the PPH diaphragm valve is that its operating mechanism is separated from the medium passage, which not only ensures the purity of the working medium but also prevents the possibility of the medium in the pipeline impacting the working parts of the operating mechanism. In addition, no separate sealing of any form is required at the valve stem, unless it is used as a safety facility in the control of harmful media. In the diaphragm valve, since the working medium only contacts the diaphragm and the valve body, both can be made of a variety of different materials. Therefore, this valve can ideally control a variety of working media, especially suitable for media with chemical corrosion or suspended particles.

  • Production process: In the PPH diaphragm valve, since the working medium only contacts the diaphragm and the valve body, both can be made of a variety of different materials. Therefore, this valve can ideally control a variety of working media, especially suitable for media with chemical corrosion or suspended particles.

Company Introduction
Company Profile:



Henan Senanshun Pipe Industry Co., Ltd. is a company specializing in the one-stop service of development, sales, and installation of sheets, bars, and plastic pipe systems such as UPVC, CPVC, ABS, CL-PVC, HT-PVC, PP, PPH, PVDF, ABS, PC, PA, POM, PETP, PBT, PEI, PES, PSU, PPS, COC, LCP, PEEK, PI, PE, and PVC. It has rich construction experience and strong technical strength. Our company's products are well - sold at home and abroad for their reliable quality, reasonable design, beautiful appearance, and fast installation, and are widely used in environmental protection, oil fields, hot springs, pharmaceuticals, semiconductors, food, chlor - alkali, fire protection, steel, nuclear power, bio - engineering, electronics, power, metallurgy, municipal works, hotels, and water treatment industries.

Our company's product standards include DIN, ANSI (SCH80, SCH40), BS, JIS, CNS, etc. We are based on integrity, take quality as the core, and seek development through reputation. We always establish long - term and friendly trade relations with domestic and foreign customers on the basis of equality and mutual benefit. We warmly welcome domestic and foreign customers to call or write for business negotiation.


After - sales Instructions
  • 1. Logistics and Distribution

           Logistics Express

  • 2. Payment Method

  •    Bank Transfer

  • 3. Return and exchange policy

       Return and exchange within 7 days without reason

  • 4. Regarding invoicing

       13% VAT invoice


Product Tags: PPH diaphragm valve , Diaphragm valve
