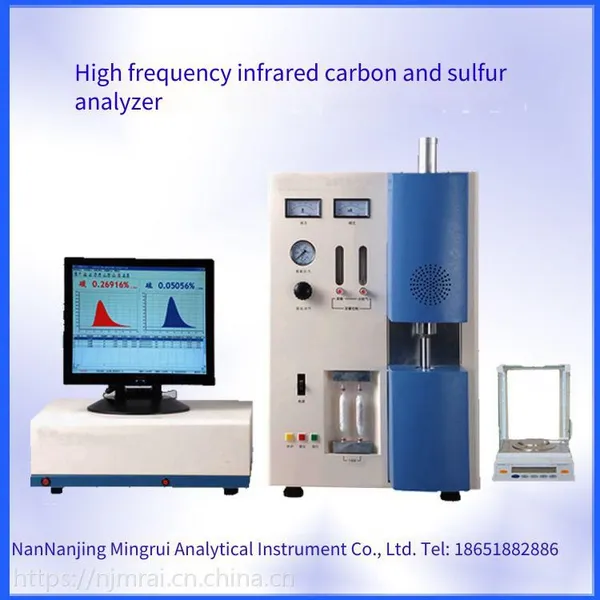

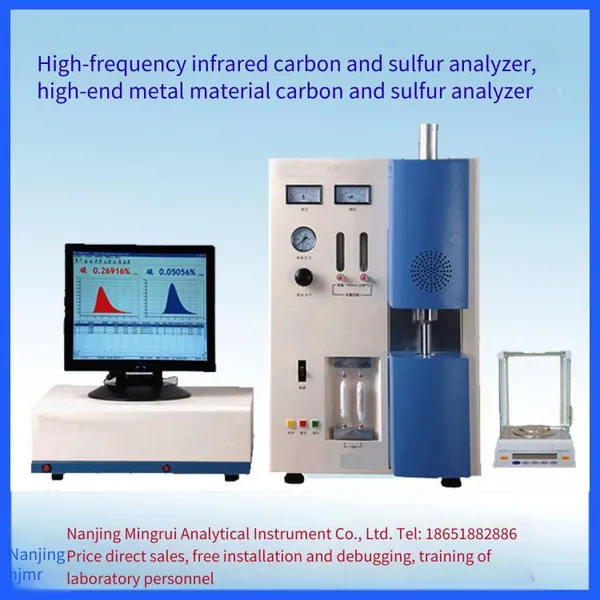

Nanjing Mingrui MR - CS995 Lithium Iron Phosphate Carbon - Sulfur Analyzer , with a computer operation interface. The analysis software is compiled with Deliph software, featuring powerful function settings, a clear and intuitive interface. The infrared detection part is connected to the high - frequency furnace via optical fiber, and is equipped with a multi - stage concealed isolation circuit to solve the high - frequency interference problem. The dust removal and purification device adopts an internal pressure - type enclosure, which has good sealing performance and purification effect, and is easy to replace. It can quickly determine the mass fractions of carbon and sulfur in steel, new energy materials, rare earth metals, ferroalloys, magnetic materials, non - ferrous metals, carbides, ceramics, inorganic substances, graphite, batteries, refractory materials, iron ores, catalysts, glass, furnace slags, cement, coal, coke, rocks and other materials. It is mainly used in the fields of new energy, metallurgy, machinery, mining, commodity inspection, nuclear industry, coal, automotive, shipbuilding, aviation, food, aerospace, building materials, universities, geology, petrochemicals, etc. Tel: 18651882886 (WeChat ID).
Lithium Iron Phosphate Carbon - Sulfur Analyzer Technical Specifications and Indicators
1. Basic Parameters: Instrument Performance and Accessories
Determination Elements: Simultaneous determination of carbon and sulfur
Analysis Principle: Detection by high - frequency furnace combustion - infrared absorption method
Analysis Range: Carbon: 0.0005% - 6.0000% (can be extended to 99.999%), Sulfur: 0.0005% - 0.3500% (can be extended to 99.999%)
Sample Weight (Solid Steel Standard): Standard 0.5g
Analysis Precision: Carbon: Complies with ISO9556 standard; Sulfur: Complies with ISO4935 standard
Sensitivity (Reading): C/S: 0.1ppm
Analysis Time: Adjustable from 20 - 100 seconds (usually 35 seconds)
High - Frequency Induction Heating Furnace:
1. Output Power of High - Frequency Furnace: 2200W; Frequency: 20MHz
2. Automatic leak detection, over - time and over - current alarm
3. Adjust the furnace temperature by current/voltage/power/selection method: Suitable for samples of different materials
4. Gas Path: A high - precision flow controller ensures stable gas flow and an imported gas path system
Dust Filter: A 0.4 - micron ultra - microporous metal filter ensures complete separation of dust and gas
Furnace Head Heating: Improves the conversion rate of sulfur and stabilizes the sulfur analysis results
Dust Removal System: Automatic cleaning: Can reduce the influence of dust on the analysis results
Ash Discharge System: A pneumatic automatic furnace head cleaning device, which cleans more thoroughly and reduces the influence of dust on the analysis results.

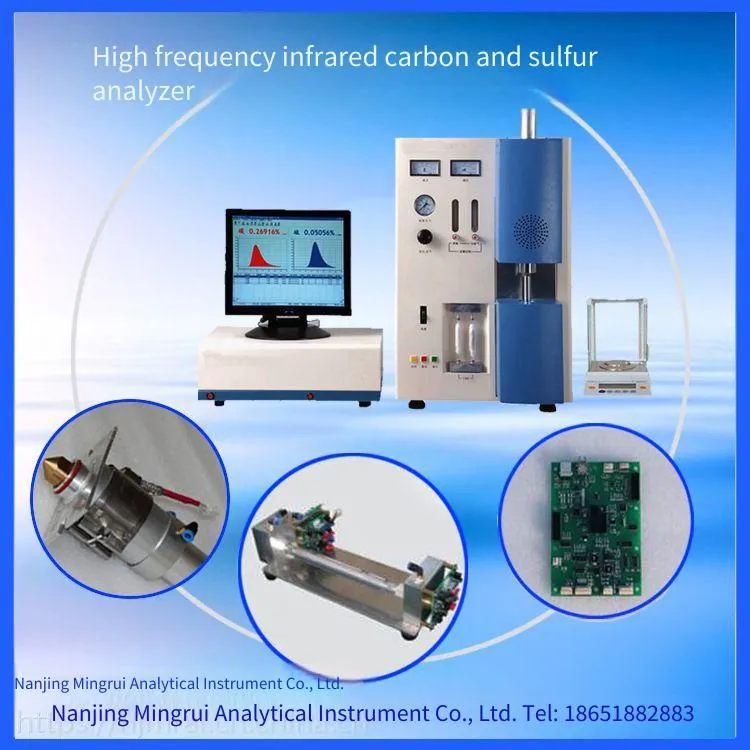

Detection system:
1. Circuit design: The whole machine adopts a modular design of dual CPUs for the upper and lower computers. The lower computer selects Atmega162 as the control single - chip microcomputer. The electronic circuit is highly integrated, stable and reliable;
2. Sampling: It uses a high - speed 24 - bit ADS1224 sampling chip with high sampling accuracy;
3. Communication: The upper and lower computers communicate through a USB2.0 interface, which greatly improves the communication speed;
4. Connection: The infrared detection part is connected to the high - frequency furnace through a high - speed optical fiber. Combined with a multi - stage concealed isolation circuit, it solves the high - frequency interference;
5. Power supply: An industrial - grade integrated linear module power supply with stable output;
6. Light source: A platinum infrared light source with continuous heating and high - efficiency spectral characteristics;
7. Analysis cell: A gold - plated carbon - sulfur analysis cell and a high - precision pyroelectric infrared detector.
2. Analysis software
(1). Operating software: Compiled with Deliph software, it is a fully Chinese - language operating software for WINDOWS XP.
(2). Analysis channels: It provides channel management functions. Carbon and sulfur channels can be added, deleted and edited freely without quantity limitation.
(3). Analysis function: Dynamic data integration during the analysis process, sampling 20 times per second, which improves the sensitivity and accuracy of the analysis;
(4). It provides sample management functions, allowing editing of sample names and identifiers, and addition and deletion of sample names;
(5). The software provides a multi - user management system, and administrators can set different user permissions.
(6). Display function: One curve box for carbon and one for sulfur, dynamically displaying real - time data during the analysis process and the release curves of carbon and sulfur.
(7). Data processing function: The analysis results are stored in the ACCESS database, which can store all data and curves of each carbon - sulfur analysis;
(8). The analysis results can be queried freely, and queries can be made according to multiple aspects such as time, operator, sample name, and identifier;
(9). It provides multiple functions such as curve/data storage, blank deduction, parameter setting, channel selection, mathematical statistics, result correction, and curve comparison;
(10). The generation of carbon - sulfur working curves and curve fitting can be realized in the software.
(11). Printing function: There are diverse printing modes, providing two printing modes for the laboratory and the testing station, and the printing format can be designed independently.
(12). Self - diagnosis function: The system diagnosis function can detect the airtightness of the furnace head and the gas chamber through the software.
