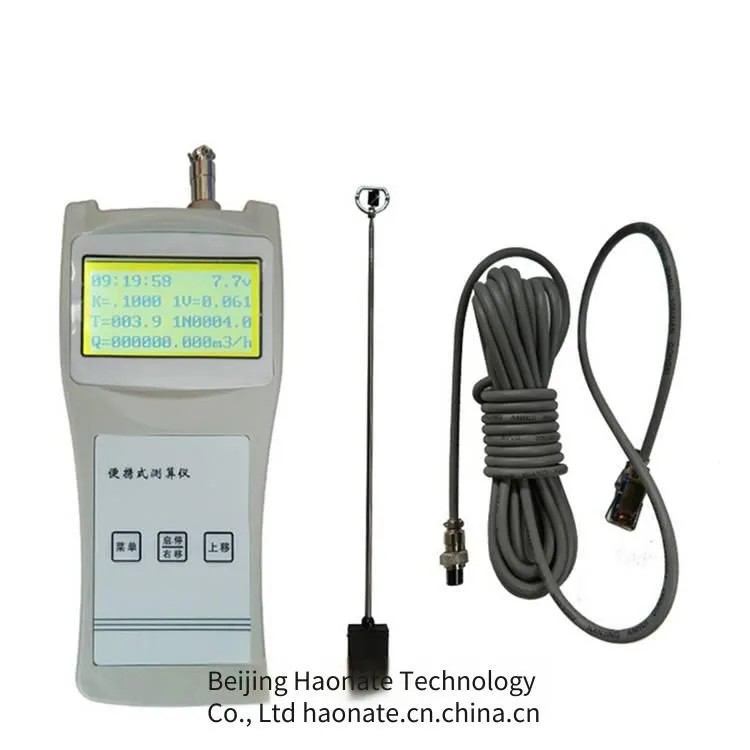

LS10A Honort Portable Flow Velocity Measuring Instrument
Product Overview:
The Honort LS10A Portable Flow Velocity Measuring Instrument is specially developed for departments such as hydrological stations, factories and mines, environmental protection monitoring stations, farmland irrigation and drainage, and hydrogeological surveys to measure the flow velocity and discharge of open channels in the field. This instrument mainly consists of a propeller-type flow velocity sensor (or other types of cup and propeller flow meters). The whole set of instruments is placed in a high-grade aluminum alloy case. When in use, assemble them into one unit, connect the signal cable, and then you can measure the flow velocity in open channels and the flow velocity will be automatically displayed.
Technical Specifications:
Impeller Rotation Diameter |
Φ15mm |
|
Pitch |
35mm |
|
Flow Velocity Measurement Range |
0.01～5.0m/s |
|
Minimum Sampling Water Depth |
2cm |
|
Sampling Time |
Optional from 0 to 999.9 seconds |
|
Minimum Resolution |
0.001 |
|
Starting Flow Velocity |
≤1cm／s |
|
Flow Capacity Display |
0～999999m3/h |
|
Flow Measurement Error |
≤1.5% |
|
Sampling Standard |
Blue-light Photoelectric Rotor Type |
|
Measuring Water Depth |
Standard 45cm |
|
Medium Temperature |
20～100℃ |
|
Suspended Sediment Concentration in Water |
≤40kg/m3 |
|
Display Screen |
LED Liquid Crystal Display |
|
Measurement Method |
Measuring rod positioning measurement, automatic and manual switching |
|
Standard Measuring Rod |
55cm |
|
Instrument Temperature Range |
－10℃～50℃ |
|
Measuring Medium |
Fresh water, seawater, sewage, clear oil, etc. |
Customizable for measuring the flowing water at the bottom of mines or mine shafts |
LS10A Honort Portable Flow Velocity Tester
