Help CenterPfa Chromatography Column, Teflon Series Filter Column for Semiconductor High-purity Chemical Preparation, Microcolumn Resistant to Acid Corrosion
Related Products
-
High-purity Pfa Purge Bottle for Inert Gas Purging of Reaction Tanks, With 1/4 Connector, Anti-siphon Buffer Bottle, Can be Equipped With ValvesUS$ 92.31 - 169.23MOQ: 1 Piece -
6l Multi-necked Reaction Flask With Flat Bottom Made of High-purity Transparent Pfa, Corrosion-resistant to Fluoride and Free of Dissolution PollutionUS$ 1743.08 - 2076.92MOQ: 1 Piece
-
Polytetrafluoroethylene Buchner Funnel Suction Filtration Device for Solid-liquid Separation in the Laboratory, High-purity Ptfe Suction Filtration Equipment, Anti-corrosionUS$ 892.31 - 953.85MOQ: 1 Set
-
Teflon Sampling Cup, Ptfe Long-handled Sampling Spoon, Sampling Tools for Highly Corrosive SolutionsUS$ 104.62 - 120MOQ: 1 Piece
-
Nanjing Binzhenghong pp Colorimetric Tube Stoppers for 10ml Test Tubes, Polypropylene pp Plastic StoppersUS$ 0.15 - 0.31MOQ: 1 Piece

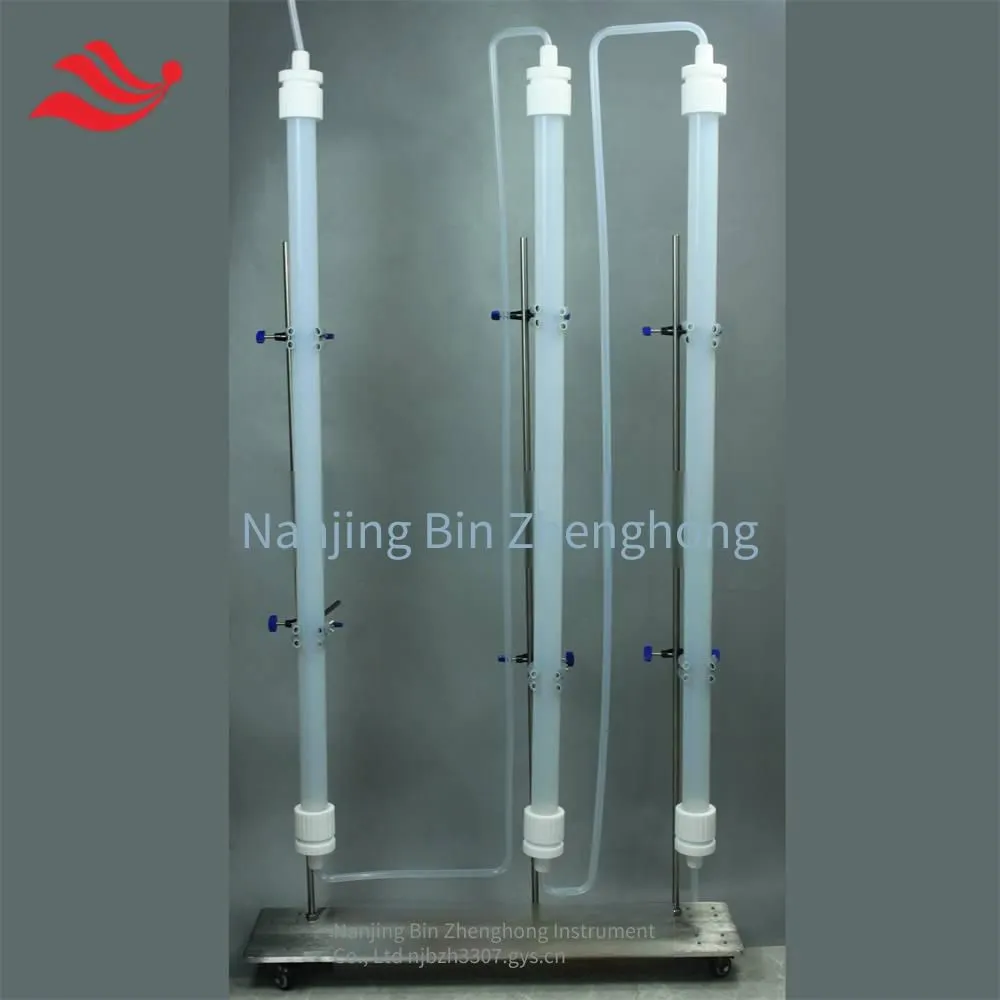

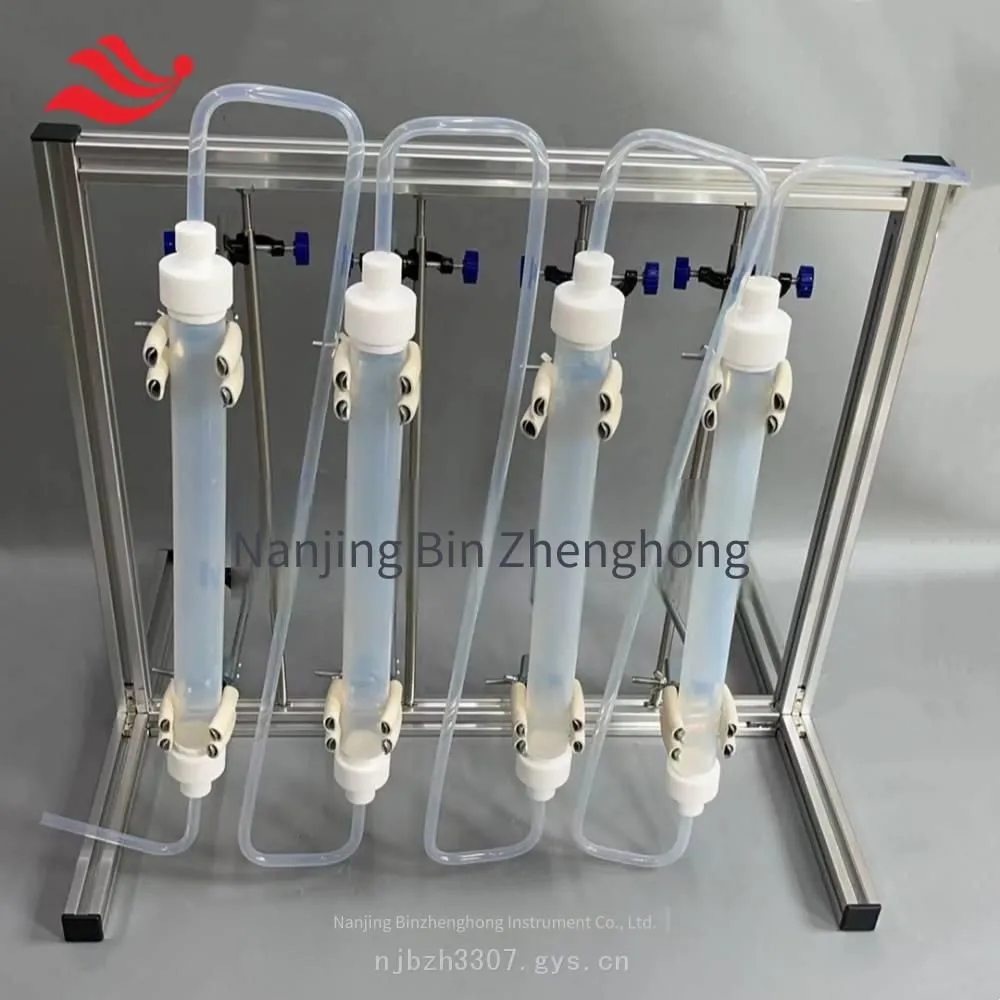

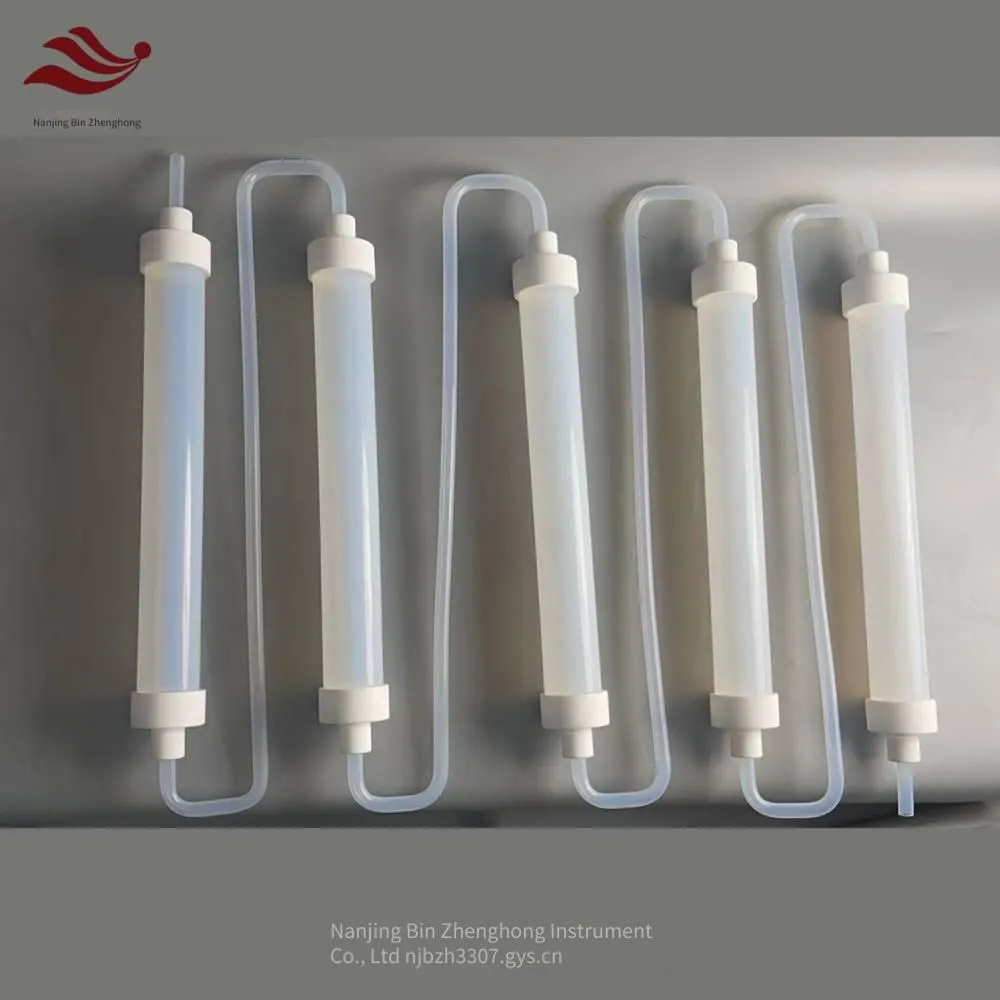

PFA filter columns have become the preferred choice under harsh working conditions due to their characteristics of " Corrosion-resistant - High-purity - Customizable ". They can work individually or in series end to end. They are specifically used in the semiconductor, new materials, new energy, and electronic chemical industries. They use resin to remove impurities such as anions and cations from chemicals, thereby preparing ultra-high-purity chemicals. (Such as purification of organic solvents.)
PFA filter columns can achieve precise separation and purification of chemicals by filling specific functional resins. Their uses are as follows:
1. Preparation of high-purity chemicals
- Deionization purification: Combine cation and anion exchange resins (such as Amberlite IR-120 cation resin + IRA-402 anion resin) to remove trace metal ions (Fe³⁺, Cu²⁺) and halogen impurities (Cl⁻, SO₄²⁻) in the solvent.
- Refining of organic solvents: Conduct deep filtration on PGMEA for photoresist and electronic-grade isopropyl alcohol (IPA) to reduce the particulate matter content.
2. Experimental design and optimization
- Dynamic adsorption experiment of series columns: Study the step-by-step interception efficiency of impurities through multi-column series connection (such as cation column → anion column → macroporous adsorption resin column), and optimize the flow rate and resin packing density.
3. Online monitoring and regeneration
- Integrate online conductivity/TOC detection modules to monitor the purity of the effluent in real time, and develop in-situ resin regeneration processes (such as acid/alkali backwashing) to extend the service life.
In the semiconductor industry, the performance of PFA filter columns is directly related to the chip yield, and they are the key consumables for breaking through process nodes.
Nanjing Binzhenghong Instrument Co., Ltd. PFA filter columns
1. Made of imported high-purity electronic-grade PFA materials, without adding recycled materials, ensuring low metal impurities and high performance;
2. Fine craftsmanship ensures that the column surface is smooth and burr-free, easy to clean, residue-free, highly repeatable, and has good sealing performance;
3. Support customization to meet the needs of various types of experiments.
