  Pre-sales information for VMC855 machining center

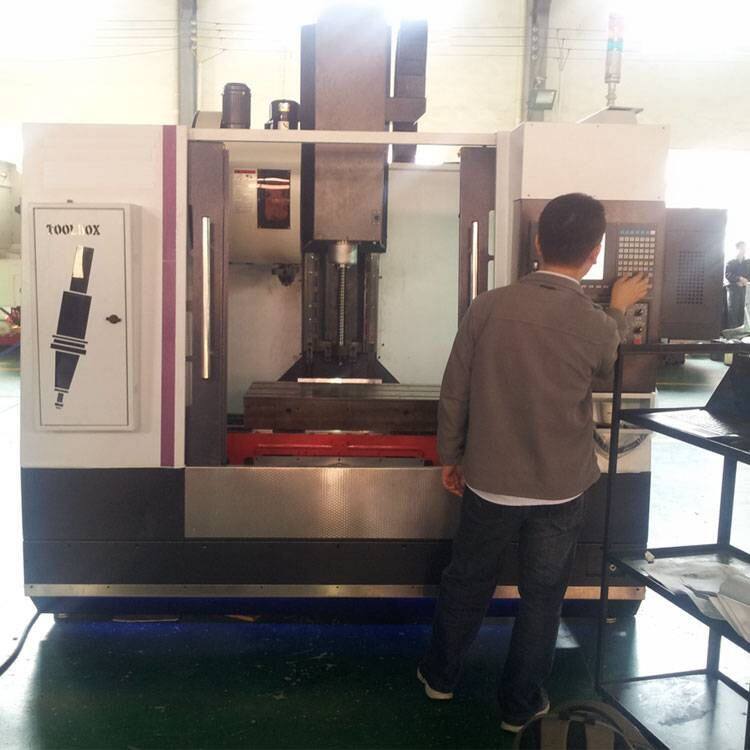

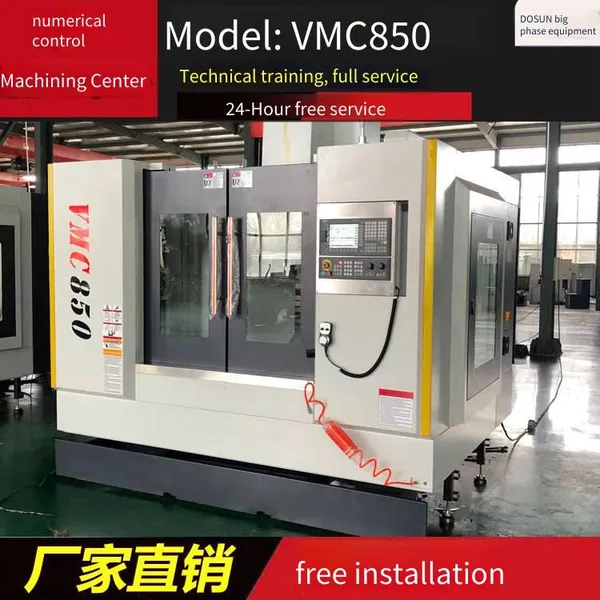

1.          VMC855 Vertical machining center Introduction and uses

This product is a semi-closed-loop vertical machining center with three-axis servo direct-coupled control for the X , Y , and Z axes. All three axes use steel ball rolling linear guides, which have large load capacity, wide span, and high precision. The YZ direction uses 45MM heavy-duty linear guides, and the XZ direction uses 35MM heavy-duty linear guides. The structure and overall dimensions are compact and reasonable. The spindle is driven by a servo motor through a synchronous belt. It can achieve one-time clamping for various complex parts such as discs, plates, housings, cams, and molds, and can complete multiple processes such as drilling, milling, boring, expanding, reaming, and rigid tapping. It is suitable for the production of multi-variety, small to medium batch products and can meet the processing requirements for complex and high-precision parts. It can be equipped with a fourth rotary axis to meet the processing requirements for special parts.

2.           Main structural features

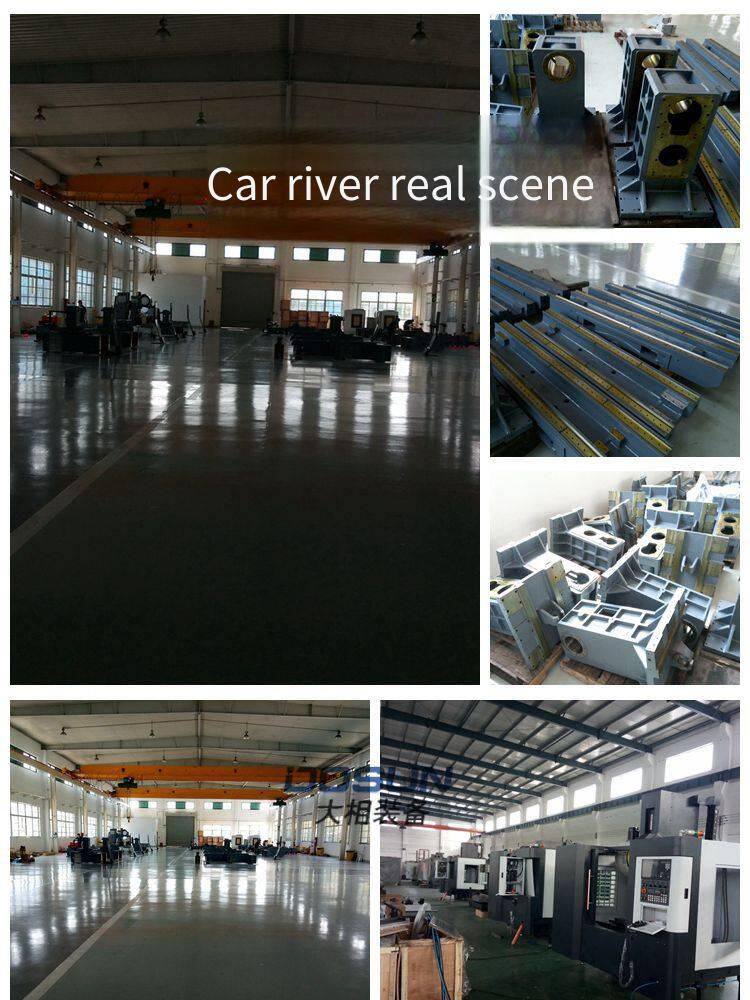

1.        The main basic parts such as the base, slide, worktable, column, and spindle box are made of HT300 cast iron. The base has a box-type structure, and the compact and reasonable symmetrical rib structure ensures high rigidity and anti-bending and shock absorption performance of the basic parts. The A -type bridge-span column and the internal grid-shaped ribs effectively ensure the rigidity and accuracy during powerful cutting of the Z axis. The basic parts are made by resin sand molding and have undergone aging treatment, which provides a guarantee for the long-term stability of the machine tool's performance.

2.        X , Y , Z guide rails are all heavy-duty linear ball guide rails from Taiwan, featuring high speed, high rigidity, low friction, low noise, and low temperature rise variation. Combined with automatic forced lubrication, they improve the accuracy and service life of the machine tool;

3,        Z direction is balanced by adding counterweights to ensure smooth and stable movement of the spindle box; The driving motor in the Z direction is equipped with a power-off braking device;

4,        X , Y , Z three directions of feed adopt high-precision and high-strength internal circulation double-nut preloaded large-lead ball screws, with high feed speed; The driving motor is directly connected to the screw through an elastic coupling. The feed servo motor directly transmits power to the high-precision ball screw without backlash, ensuring the positioning accuracy and synchronization of the machine tool;

5,        A high-speed, high-precision, and high-rigidity spindle unit is adopted, with strong axial and radial load-bearing capacity. The rotational speed can reach 8000rpm ;

6,        The spindle adopts a central air-blowing structure. When the spindle releases the tool, the inner cone of the spindle is quickly cleaned with high-pressure central gas,     ensuring the accuracy and service life of tool clamping;

7,        X , Y , Z the guide rails and screws in three directions are all equipped with protective devices to ensure the cleanliness of the screws and guide rails, and to ensure the transmission, movement accuracy, and service life of the machine tool;

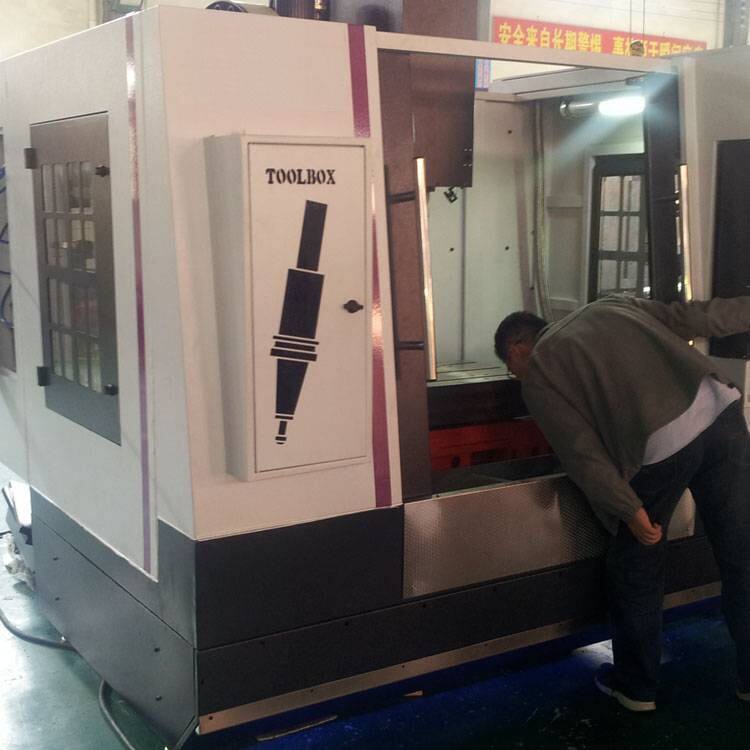

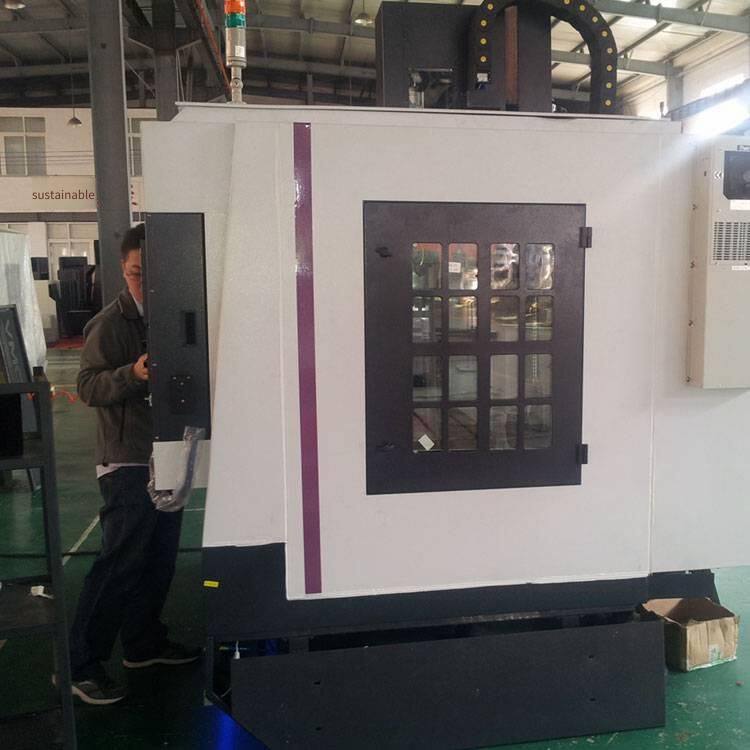

8,        The external protection of the machine tool adopts a full-protection structure design, which is convenient to operate, safe and reliable, and aesthetically pleasing;

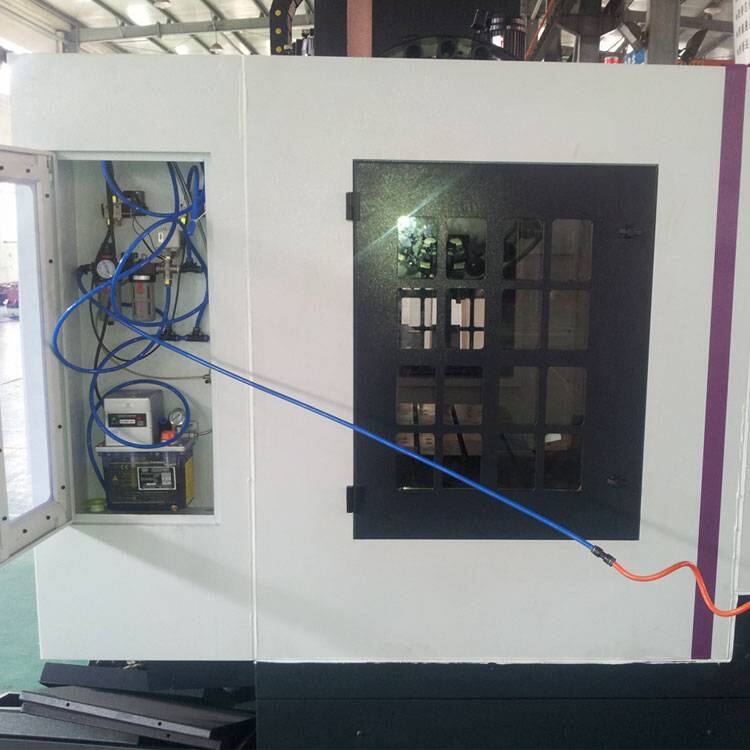

9、        Adopt a reliable centralized automatic lubrication device, which can automatically lubricate each lubrication point of the machine tool intermittently at regular time and quantity. The lubrication time can be adjusted according to the working conditions;

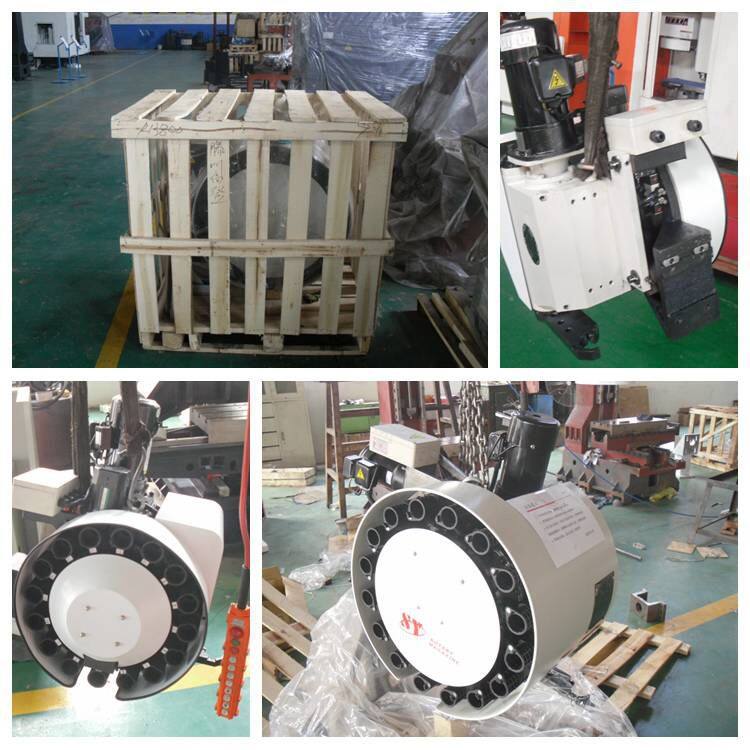

10、    Adopt the tool magazines produced by professional manufacturers in Taiwan, including 20 -piece hat-type tool magazines (optional) or 24 -piece disc-type tool magazines ( optional ). The tool change is accurate, with short time and high efficiency. After millions of operation tests, it meets the reliability requirements. It is equipped with a damping structure, which can reduce the impact during movement and ensure the service life of the tool magazine. It is pneumatically driven, easy to use, and can change tools through the shortest path;

11、    Adopt an oil-water separation device, which can separate most of the collected lubricating oil from the coolant, prevent the rapid deterioration of the coolant, and is beneficial to environmental protection;

12、    The machine tool operating system adopts the principle of ergonomics. The operation box is independently designed and can rotate by itself, which is convenient for operation.

v   VMC855 Vertical Machining Center    Main Technical Parameters

1、     Main Technical Parameters

Travel

   Workbench

   Spindle

   Tool

Tool diameter (adjacent clearance): φ 80/ φ 150mm

Tool length: 300mm

Tool weight: 6kg

   Rapid displacement

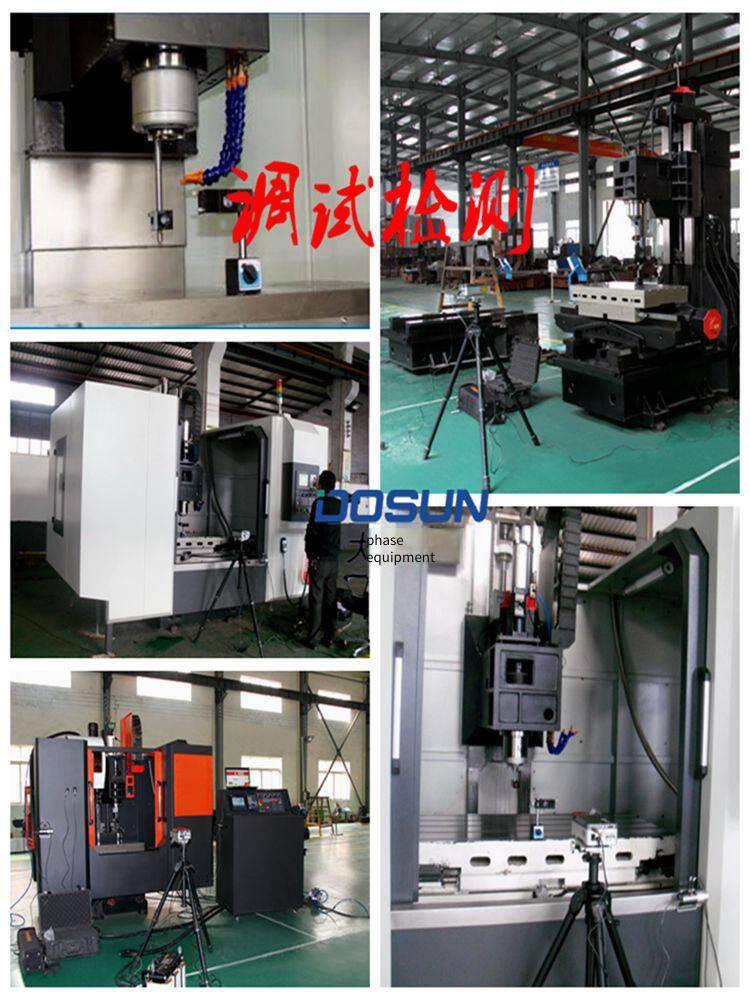

  Precision

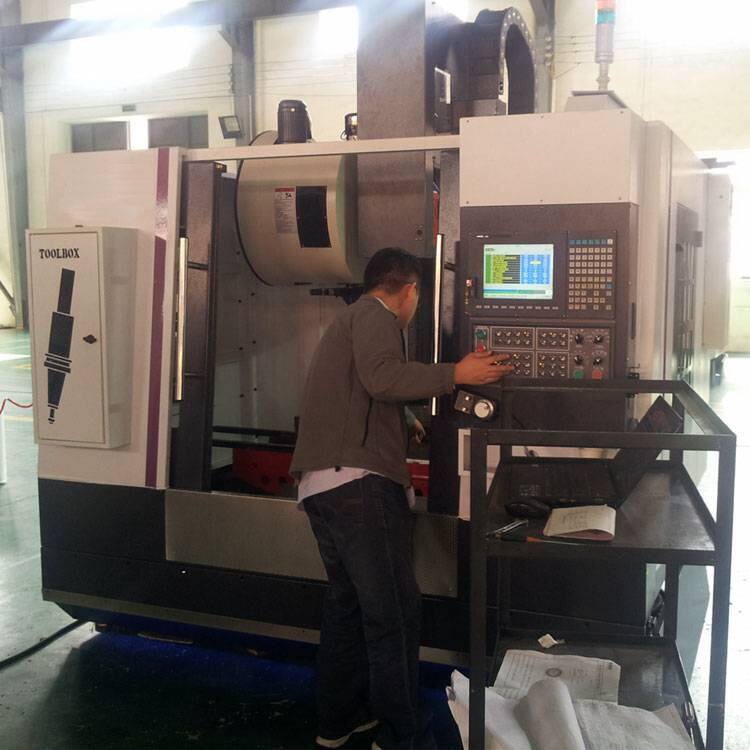

2、    VMC855 Vertical machining center   CNC Control system

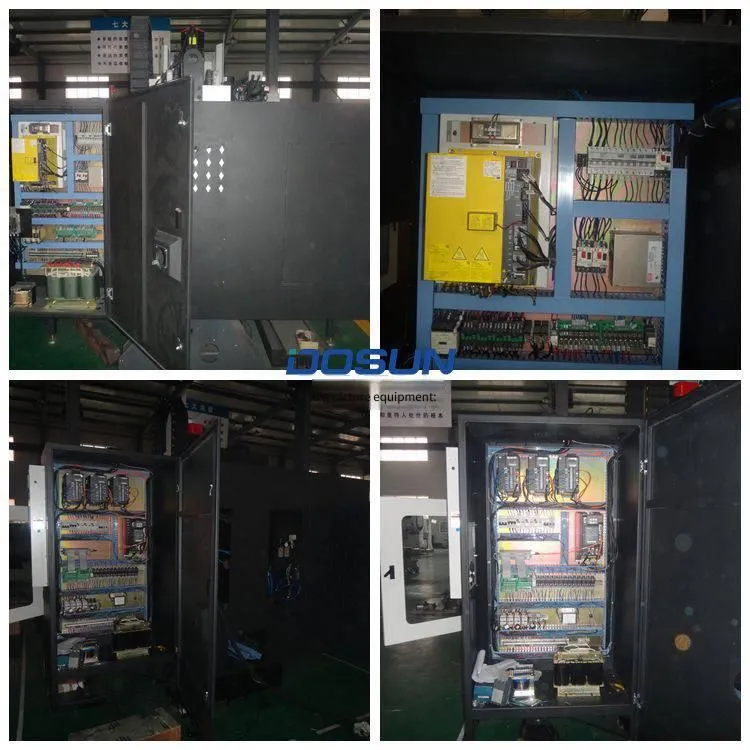

The system has perfect and reliable functions such as interlocking, safety protection, and fault diagnosis and alarm. It is equipped with RS232 standard and network cable communication interfaces, which can be used for program control and storage with a computer and can achieve DNC machining (there are differences depending on the system).

●Motor

X/Y/Z Axis AC servo motor        (   Torque N.m 11/11/20 )

3、     Power supply device

Power supply form                                  Three-phase AC 380V ± 10%   50Hz ± 10%

Power consumption                                 15KVA

4、     Cooling system

Water tank capacity:                             200L

Cooling pump power:                         440W

Cooling pump flow:                         67L/min

Rated lift:               16m

5、     Air source

Operating air pressure:               0.6MPa

6、     Machine tool overall dimensions and weight

Machine tool overall dimensions (depth × width × height) :  2750×2300×2300mm

Machine tool net weight approximately
