MOPAO3st 300mm Automatic Metal Polishing Grinding Machine Touch Screen Double Discs 50-1000 R/min Speed
US$ 4500 - 4500
MOQ: 1 Set
Key Specifications
Get Latest Price
place of origin:
Shandong, China
brand name:
HST
video outgoing-inspection:
Not Available
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HSTMopao3T Automatic Single-Disc Pneumatic Metallographic Grinding Polishing Machine Individual Pressure Loading ElectronicUS$ 3500 - 4000MOQ: 1 Set -
MOPAO4ST Single Center Loading Automatic Metal Testing Equipment Double Discs Grinding PolisherUS$ 4000 - 4500MOQ: 1 Set
-
HST-ZXQ6P Pneumatic Metallographic Specimen Mounting Press 1-Year Warranty for Efficient Lab Sample PreparationUS$ 36249.13 - 37018.90MOQ: 1 Set
-
HST-ZXQ4 High Quality Fast 5-Minute Cycle Automatic Mounting Press for Metallographic Samples 1 Year WarrantyUS$ 16025.20 - 16445.07MOQ: 1 Set
-
HST-ZXQ3S High Quality Automatic Metallographic Specimen Mounting Press Efficient Solution for Lab Sample Preparation 1 YearUS$ 30300.91 - 31140.66MOQ: 1 Set
place of origin
Shandong, China
brand name
HST
video outgoing-inspection
Not Available
machinery test report
Provided
core components
PLC, Engine, Bearing
power (kw)
0.87
weight (kg)
100
key selling points
Easy To Operate
warranty
1 Year
Product name
MOPAO3st 300mm Automatic Polishing Grinding Machine
Disc
double
control way
automatic
Disc Diameter
250mm
Disc Rotating Speed
50~1000 r/min (Stepless Speed)
Grinding Polishing Head Rotating Speed
50~150 r/min
QTY Of Specimen Preparation
4pcs
Specimen Force
5 ~ 60N, Manual Pressure
Time Of Specimen Preparation
0 ~ 9999 s
Specimen Diameter
30 mm Or 22 mm or 45 mm

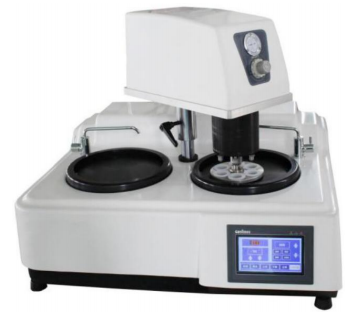

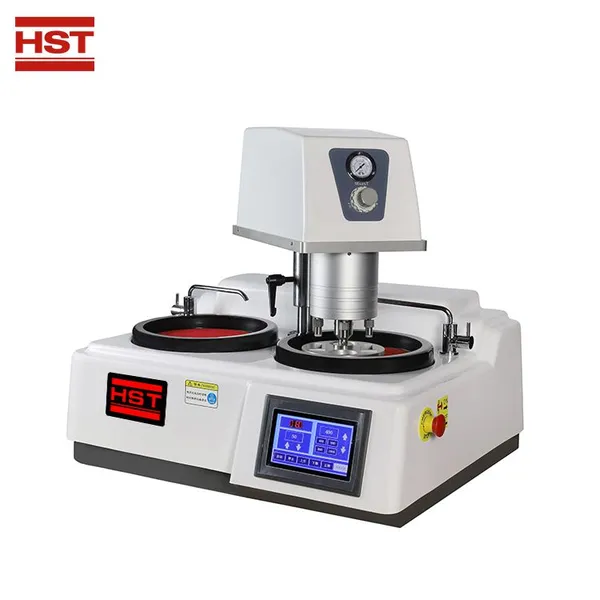

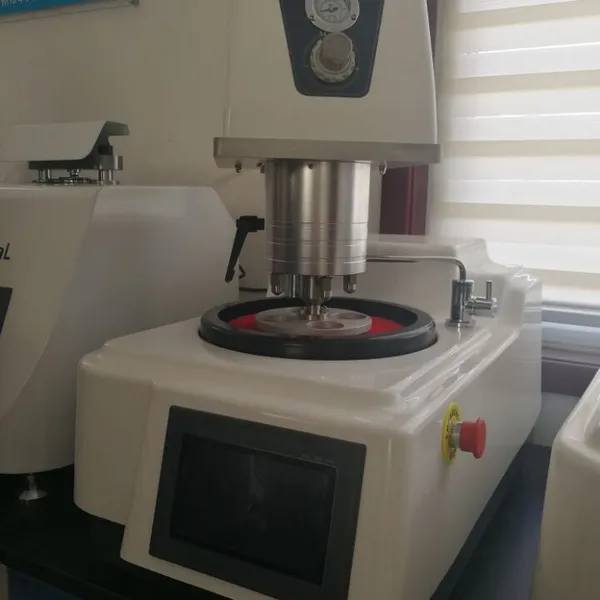

MoPao 3ST Automatic Metallographic Specimen Grinding Polishing Machine is Touch Screen
Digital Display, Double Discs, Desktop Type.
It is a multi-purpose machine, one machine to achieve the metallographic specimen roughing
grinding, precision grinding and polishing the entire process.
It is the enterprises and research institutes ideal device.
2.Technical Parameters:
|
Model |
MoPao 3ST |
|
Disc Diameter |
250 mm OR 3000MM |
|
Disc Rotating Speed |
50~1000 r/min (Stepless Speed) And 150 r/min, 300 r/min (Two-step Constant Speed) |
|
Grinding Polishing Head Rotating Speed |
5 ~ 150 r/min (Stepless Speed) |
|
QTY Of Specimen Preparation |
4 PCS |
|
Specimen Force |
5 ~ 60N, Manual Pressure |
|
Time Of Specimen Preparation |
0 ~ 9999 s |
|
Specimen Diameter |
Φ30 mm (Or Customized Φ22 mm or Φ45 mm) |
|
Supply Power |
Single Phase, AC 220V, 50Hz, 870W |
|
Overall Dimensions |
980*920*470 mm |
|
N.W. / G.W. |
55 KG / 71 KG |
