HST-ZXQ4 High Quality Fast 5-Minute Cycle Automatic Mounting Press for Metallographic Samples 1 Year Warranty
US$ 16445.07
1 - 2 Set
US$ 16025.20
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
Grade1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-ZXQ3S High Quality Automatic Metallographic Specimen Mounting Press Efficient Solution for Lab Sample Preparation 1 YearUS$ 30300.91 - 31140.66MOQ: 1 Set -
HST-ZXQ2A High Quality 1-Year Warranty Automatic Specimen Mounting Press Easy-to-Use Solution for Lab Sample Testing EquipmentUS$ 1540 - 1590MOQ: 1 Set
-
HST-XQ2B Manual Metallographic Specimen Press 1-Year Warranty Thermo-Hardening Plastic Pressing Sample Testing EquipmentUS$ 326 - 418MOQ: 1 Set
-
HST-SQ100 High-Precision Manual Cutting Machine 1-Year Warranty for Metal & Non-Metal Materials Testing EquipmentUS$ 97270.81 - 101469.55MOQ: 1 Set
-
HST-QG4A Lab Grade Metallographic Cutting Machine 65mm Max Cut 2800rpm Cooling System With 1 Year WarrantyUS$ 12526.25 - 13016.10MOQ: 1 Set
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing
customized support
OEM, ODM
power
1650W
Protection Class
IP65
Voltage
Other
warranty
1 Year
Product name
Automatic Metallographic Specimen Mounting Press
The Sample Diameter
25,30,40,50mm
Holding time range
1-99min
Heating temperature range
35~200
Dimensions
625*583*565mm
Net weight
82.3kg
Products Description
Application:

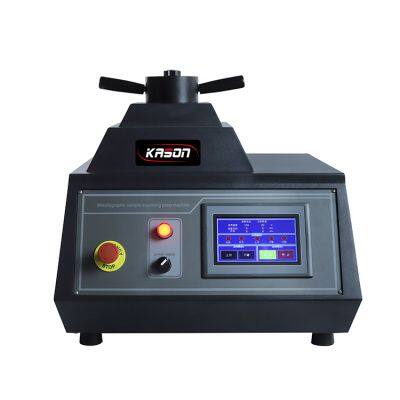

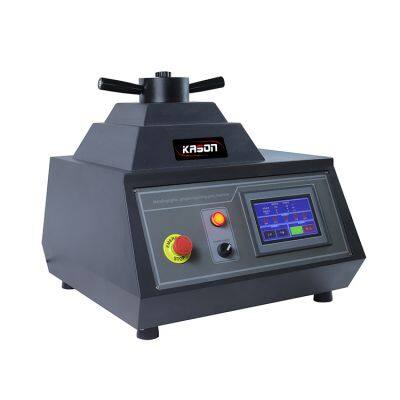

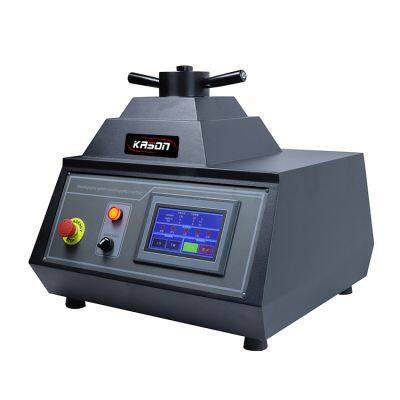

The HST-ZXQ4 mounting machine is used to mount metallographic and petrographic samples that are tiny, difficult to hold or irregular before grinding and polishing.
Features:
* After being mounted in this machine, it is convenient to grind and polish the sample,which is helpful for viewing the material structure of the sample under a metallographic microscope; and testing the hardness of the sample on a hardness tester.
* The inlay material of this machine is limited to thermoset materials. The pressing temperature of different thermoset materials can be adjusted and customized according to the material.
* This machine can automatically heat and pressurize. After pressing and forming, it will cool down and stop automatically. Open the upper cover and press the up button. The sample will automatically rise and you can take out the parts.
* This machine is a multifunctional water-cooled inlay machine for inlaying various samples. It has the advantages of large number of molds and short mold making time.
* The inlay material of this machine is limited to thermoset materials. The pressing temperature of different thermoset materials can be adjusted and customized according to the material.
* This machine can automatically heat and pressurize. After pressing and forming, it will cool down and stop automatically. Open the upper cover and press the up button. The sample will automatically rise and you can take out the parts.
* This machine is a multifunctional water-cooled inlay machine for inlaying various samples. It has the advantages of large number of molds and short mold making time.
Model | HST-ZXQ4 |
The Sample Diameter | Φ25,Φ30,Φ40,Φ50mm |
Heating temperature range | 35-200℃ |
Hold Time | 1~99 min |
Automatic cooling time | 0~60 min |
Cooling method | Water Cooling |
Maximum Consumption | 1650W |
Power Supply | 220V, 50Hz |
Dimension | 625*583*565mm |
Package Size | 915*710*797mm |
Net Weight | 82.3kg |
Gross Weight | 103.5kg |
