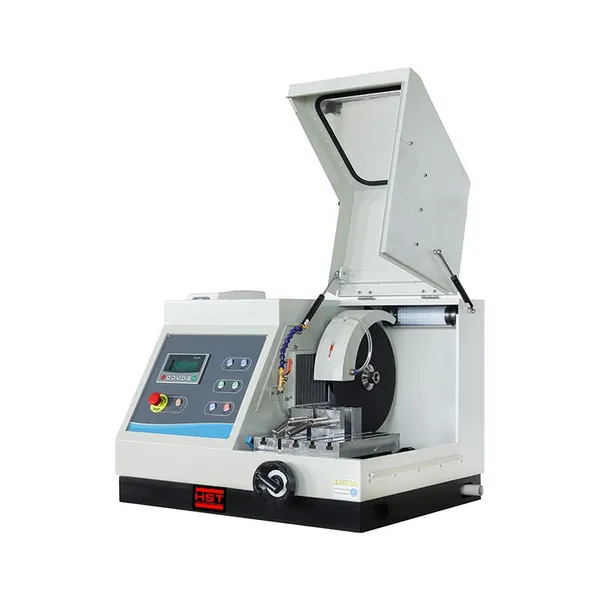

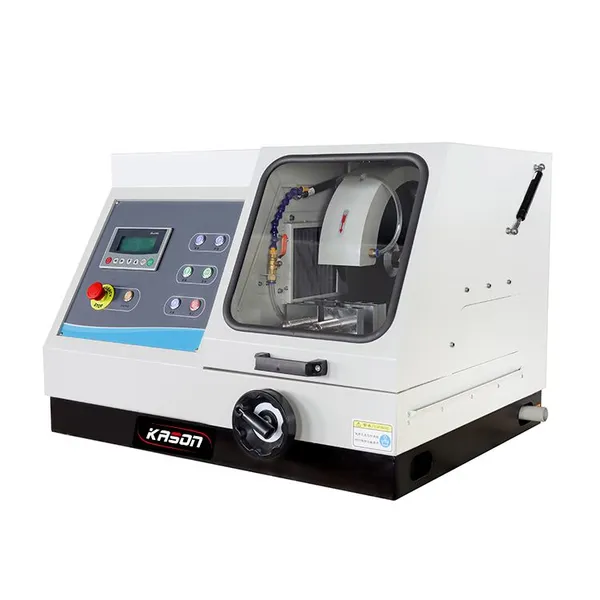

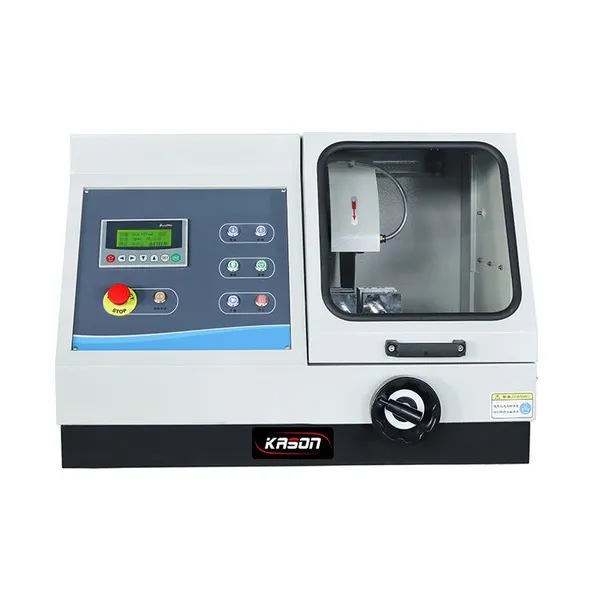

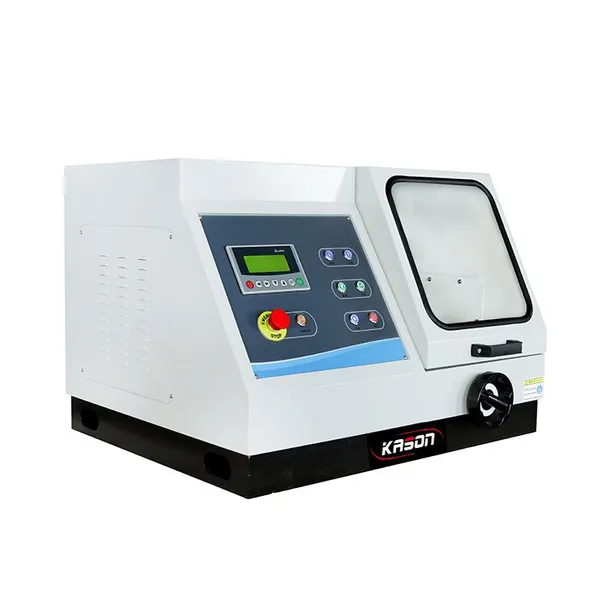

HST-Q80Z Lab Grade 80mm Metallographic Automatic Cutting Machine 2100rpm Manual & Auto Modes 1 Year Warranty Testing Equipment
US$ 13645.91
1 - 2 Set
US$ 13296.01
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
Grade1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-Q2A Lab Grade Metallographic Cutting Machine High Precision 2800rpm 50mm Max Cutting Section Cooling System 1 Year WarrantyUS$ 2939.12 - 3149.06MOQ: 1 Set -
HST-P2T High Quality Dual Disc Metallographic Specimen Polishing Machine Low Noise 1-Year Laboratory Use WarrantyUS$ 2792.17 - 2932.13MOQ: 1 Set
-
HST-P2G High Quality Dual-Disc Metallographic Specimen Polishing Machine Low Noise 1-Year Warranty for Laboratory Testing UseUS$ 2792.17 - 2932.13MOQ: 1 Set
-
HST-P1 High Quality Manual Metallographic Specimen Polishing Machine Smooth Operation With 1 Year WarrantyUS$ 1532.55 - 1609.52MOQ: 1 Set
-
HST-MP2B Stepless Speed Double Disc Metallographic Grinder & Polisher With Cooling System 1 Year WarrantyUS$ 9447.17 - 9790.07MOQ: 1 Set
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing
customized support
OEM, ODM
power
3KW
Protection Class
IP65
Voltage
Other
warranty
1 Year
Product name
Metallographic Automatic Cutting Machine
Cutting chamber shell
Steel plate
Maximum cutting diameter
80mm (pipe)
Infeed depth tracking
LCD Display
Platform moves in Y direction
275mm
Grinding wheel specifications
250*2*32mm
Cutting table size
280*310mm
Net weight
210kg
Dimensions
887*795*600mm
Products Description
Applications:
The HST-Q80Z metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials in order to observe the metallographic and petrographic structures of the materials.
Features:
* This machine is equipped with a cooling system to take away the heat generated during cutting.
* The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
* The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
* The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample cutting.
* The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
* The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
* The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample cutting.
Model | HST-Q80Z |
Cutting chamber shell | Steel plate |
Maximum cutting diameter | 80mm (pipe) |
Infeed depth tracking | LCD Display |
Platform moves in Y direction | 275mm |
Cutting table size | 280*310mm |
Cutting disc specifications | 350*2.5*32mm |
Clamping platform specifications | The fixture table is divided into left and right parts, with a central cutting edge |
Cutting method | Manual / Auto |
Feeding method | Any adjustment (Manual / Auto dual use) |
Cutting speed | Maximum 1mm/s |
Automatic cutting method | Intermittent cutting (metal workpieces) and continuous cutting (non-metallic workpieces) |
Cutting distance | Set as needed |
Reset mode | Automatic reset |
Cooling system | Automatic (water cooling 2 channels) |
Water tank capacity | 50L |
Spindle speed | 2100r/min |
Motor Power | 3KW |
Machine type | Desktop |
Power supply | 380V |
Dimensions | 887*795*600mm |
Package Size | 1100*940*800mm |
Net weight | 210kg |
Gross weight | 241kg |
Water tank dimensions | 470*370*300mm |
Water tank packaging size | 540*460*460mm |
Water tank net weight | 17kg |
Water tank gross weight | 27kg |
