Home > Instruments & Meters > Test Instrument > Test Machine > HST-Q2A Lab Grade Metallographic Cutting Machine High Precision 2800rpm 50mm Max Cutting Section Cooling System 1 Year Warranty

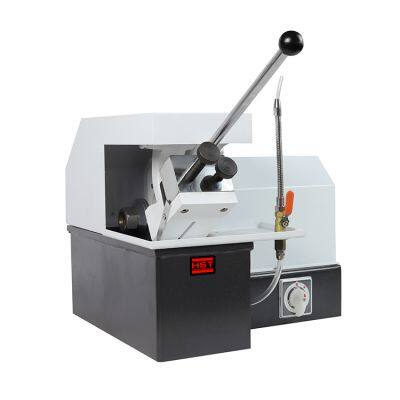

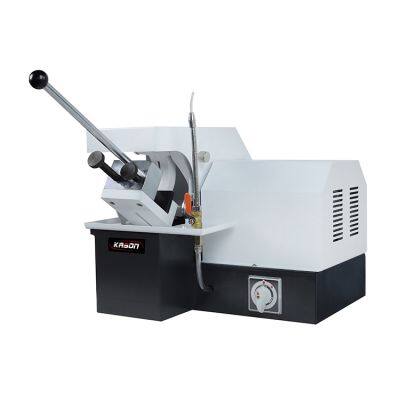

HST-Q2A Lab Grade Metallographic Cutting Machine High Precision 2800rpm 50mm Max Cutting Section Cooling System 1 Year Warranty
US$ 3149.06
1 - 2 Set
US$ 2939.12
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
Grade1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-P2T High Quality Dual Disc Metallographic Specimen Polishing Machine Low Noise 1-Year Laboratory Use WarrantyUS$ 2792.17 - 2932.13MOQ: 1 Set -
HST-P2G High Quality Dual-Disc Metallographic Specimen Polishing Machine Low Noise 1-Year Warranty for Laboratory Testing UseUS$ 2792.17 - 2932.13MOQ: 1 Set
-
HST-P1 High Quality Manual Metallographic Specimen Polishing Machine Smooth Operation With 1 Year WarrantyUS$ 1532.55 - 1609.52MOQ: 1 Set
-
HST-MP2B Stepless Speed Double Disc Metallographic Grinder & Polisher With Cooling System 1 Year WarrantyUS$ 9447.17 - 9790.07MOQ: 1 Set
-
HST-MP2 Advanced Cooling & Precision Control Metallographic Specimen Grinder & Polisher 1-Year WarrantyUS$ 5038.49 - 5248.43MOQ: 1 Set
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing
customized support
OEM, ODM
power
2.2KW
Protection Class
IP65
Voltage
Other
warranty
1 Year
Product name
Metallographic Cutting Machine
Maximum cutting section
50mm
Spindle speed
2800 r/min
Grinding wheel specifications
300*2*32mm
Dimensions
469*455*396mm
Net weight
66.55kg
Products Description
Applications:
The HST-Q2A metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials in order to observe the metallographic and petrographic structures of the materials.
Features:
* This machine is equipped with a cooling system to take away the heat generated during cutting.
* The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
* The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
* The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample cutting.
* The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
* The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
* The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample cutting.
Model | HST-Q2A |
Maximum cutting section | φ50mm |
Spindle speed | 2800 r/min |
Cutting power | 2.2kw |
Input voltage | 3-phase 380V、50HZ |
Grinding wheel specifications | 300*2*32mm |
Dimensions | 469*455*396mm |
Package Size | 615*516*538mm |
net weight | 66.55kg |
gross weight | 77.25kg |
