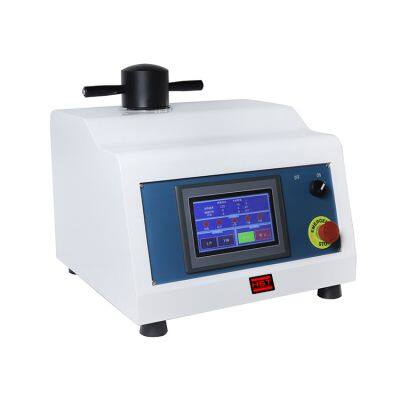

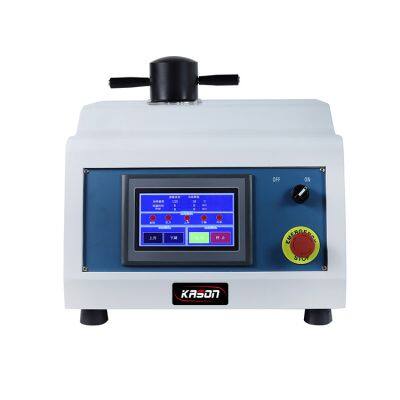

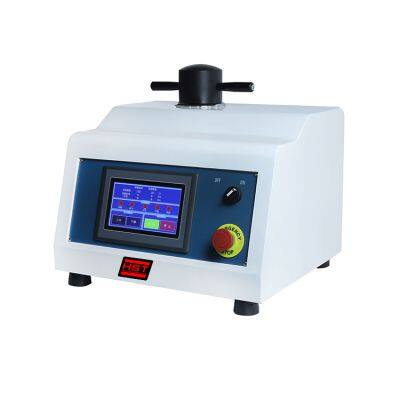

HST-ZXQ2A High Quality 1-Year Warranty Automatic Specimen Mounting Press Easy-to-Use Solution for Lab Sample Testing Equipment
US$ 1540 - 1590
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
Grade1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-XQ2B Manual Metallographic Specimen Press 1-Year Warranty Thermo-Hardening Plastic Pressing Sample Testing EquipmentUS$ 326 - 418MOQ: 1 Set -
HST-SQ100 High-Precision Manual Cutting Machine 1-Year Warranty for Metal & Non-Metal Materials Testing EquipmentUS$ 97270.81 - 101469.55MOQ: 1 Set
-
HST-QG4A Lab Grade Metallographic Cutting Machine 65mm Max Cut 2800rpm Cooling System With 1 Year WarrantyUS$ 12526.25 - 13016.10MOQ: 1 Set
-
HST-Q100B Lab Grade Metallographic Testing Equipment Automatic Cutting Machine 60L Cooling System Manual/Auto Modes 1-YearUS$ 14345.70 - 15745.28MOQ: 1 Set
-
HST-Q80Z Lab Grade 80mm Metallographic Automatic Cutting Machine 2100rpm Manual & Auto Modes 1 Year Warranty Testing EquipmentUS$ 13296.01 - 13645.91MOQ: 1 Set
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing
customized support
OEM, ODM
power
950W
Protection Class
IP65
Voltage
Other
warranty
1 Year
Product name
Automatic Metallographic Specimen Mounting Press
The Sample Diameter
22mm OR 30mm OR 45mm
Holding time range
0-99min
Heating temperature range
35~200
Dimensions
485*457*435mm
Net weight
52kg
Products Description
Application:
The HST-ZXQ2A mounting machine is used to mount metallographic and petrographic samples that are tiny, difficult to hold or irregular before grinding and polishing.
Features:
* After being mounted in this machine, it is convenient to grind and polish the sample,which is helpful for viewing the material structure of the sample under a metallographic microscope; and testing the hardness of the sample on a hardness tester.
* The inlay material of this machine is limited to thermoset materials. The pressing temperature of different thermoset materials can be adjusted and customized according to the material.
Model | HST-ZXQ2A |
The Sample Diameter | 22mm OR 30mm OR 45mm (Choose One) |
Input power | 950W |
Input voltage | 220V 50HZ |
Holding time range | 0-99min |
Heating temperature range | 35~200 |
Cooling method | Water cooling |
Dimension | 485*457*435mm |
Package Size | 610*546*687mm |
Net Weight | 51.8kg |
Gross Weight | 64.5kg |
