Home > Instruments & Meters > Test Instrument > Test Machine > HST-ZXQ6P Pneumatic Metallographic Specimen Mounting Press 1-Year Warranty for Efficient Lab Sample Preparation

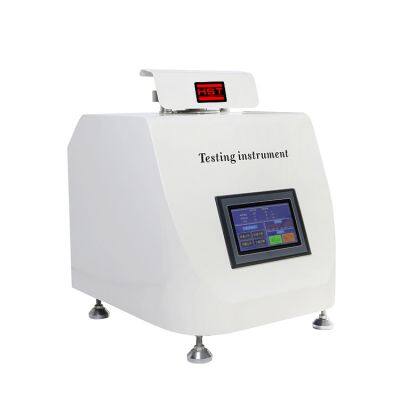

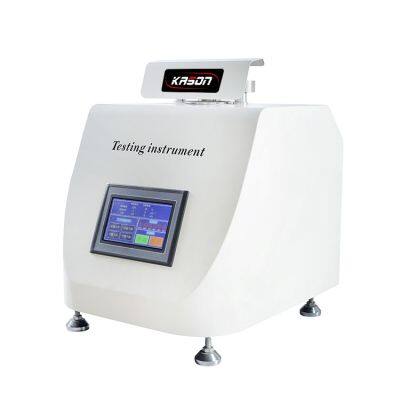

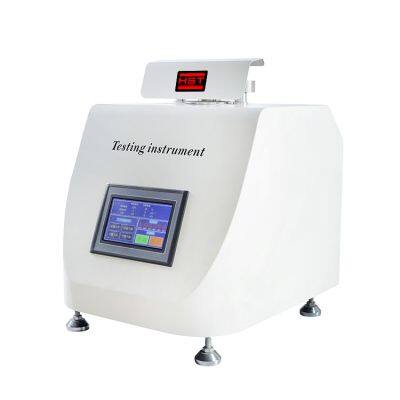

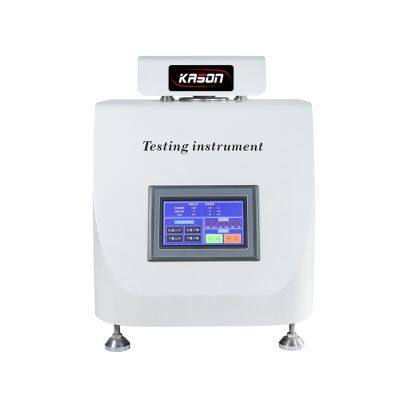

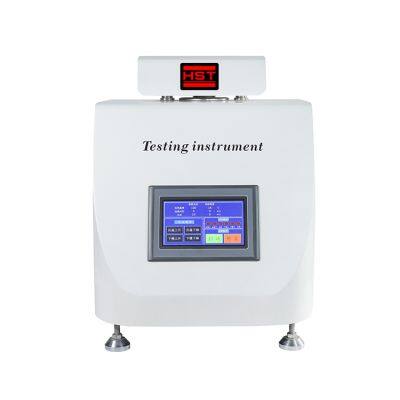

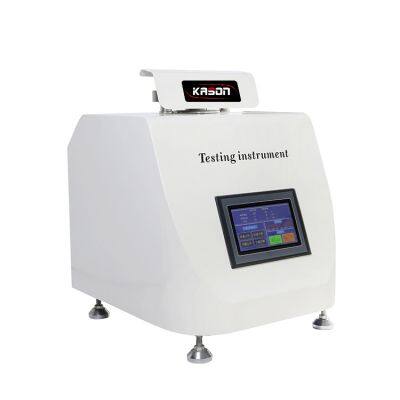

HST-ZXQ6P Pneumatic Metallographic Specimen Mounting Press 1-Year Warranty for Efficient Lab Sample Preparation
US$ 37018.90
1 - 2 Set
US$ 36249.13
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
Grade1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-ZXQ4 High Quality Fast 5-Minute Cycle Automatic Mounting Press for Metallographic Samples 1 Year WarrantyUS$ 16025.20 - 16445.07MOQ: 1 Set -
HST-ZXQ3S High Quality Automatic Metallographic Specimen Mounting Press Efficient Solution for Lab Sample Preparation 1 YearUS$ 30300.91 - 31140.66MOQ: 1 Set
-
HST-ZXQ2A High Quality 1-Year Warranty Automatic Specimen Mounting Press Easy-to-Use Solution for Lab Sample Testing EquipmentUS$ 1540 - 1590MOQ: 1 Set
-
HST-XQ2B Manual Metallographic Specimen Press 1-Year Warranty Thermo-Hardening Plastic Pressing Sample Testing EquipmentUS$ 326 - 418MOQ: 1 Set
-
HST-SQ100 High-Precision Manual Cutting Machine 1-Year Warranty for Metal & Non-Metal Materials Testing EquipmentUS$ 97270.81 - 101469.55MOQ: 1 Set
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing
customized support
OEM, ODM
power
1000W
Protection Class
IP65
Voltage
Other
warranty
1 Year
Product name
Automatic Metallographic Specimen Pneumatic Mounting Press
The Sample Diameter
30mm
Temperature setting range
0-200℃
Cooling temperature range
0-999min
Constant temperature time
0-99min
Dimensions
435*520*605mm
Net weight
77kg
Products Description
Application:
After mounting, it is convenient to grind and polish the sample and to observe the structure of the material normally under a metallographic microscope.
This machine can automatically heat, pressurize, keep warm, and cool. After pressing and forming, the pressure will be
automatically released and the sample will be taken out automatically. Ready for pickup. It is a kind that only requires manual feeding, and automatically completes inlaying and mold taking. A device that reduces the tedious manual operation of taking molds.
Note:
Only for thermosetting materials (such as bakelite powder, etc.), the temperature has been adjusted and automatically controlled.
Model | HST-ZXQ6P |
The Sample Diameter | 30mm |
Heater | 220V,1000W |
Temperature setting range | 0-200℃ |
Cooling temperature range | 0-999min |
Constant temperature time | 0-99min |
Air pressure requirement | 0.4-0.7Mpa |
Total power supply | 1000W |
Cooling method | Water cooling |
Dimension | 435×520×605mm |
Net Weight | 77kg |
