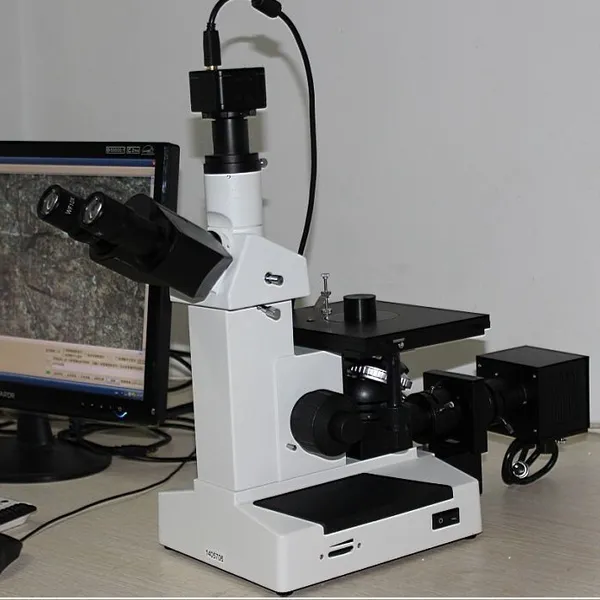

HST High Quality HST101-BW Trinocular Inverted Metallography Microscope
US$ 1280 - 1500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤±1%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST With 1-Year Warranty Double-Disc Grinding and Polishing Testing Equipment Machine HST-MP2C for LabUS$ 1100 - 1400MOQ: 1 Set -
HST Metallographic Grinding Polishing Machine Automatic 250mm 230mm Disc Metallographic Grinding Polishing Machine HST-MoPao3STUS$ 3000 - 3800MOQ: 1 Set
-
HST Metallographic Sample Double Disc Constant-speed Metallographic Grinding and Polishing Machine HST-MoPao260US$ 500 - 800MOQ: 1 Set
-
HST Metallographic Grinding Polishing Machine Single-disc 203 mm Metallographic Grinding Polishing Machine HST-MP1C for LabUS$ 600 - 850MOQ: 1 Set
-
HST Metallographic Grinding Polishing Machine Single Disc 203 mm Metallographic Grinding Polishing Machine HST-MP1BUS$ 500 - 700MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Trinocular Inverted Metallography Microscope
Model
HST101-BW
Eyepiece
Wide field WF10X(18mm)
Observation tube
Hinged binocular tube30 tube distance diopter adjustable
Converter
Ball internal positioning four-hole adapter
Filter
Yellow color filter, green color filter, blue color filter
Focus system
minimum division of fine focusing: 2μm.
Metallographic
FMIA2023 genuine metallographic analysis software, 5
Stage
Double layer mechanical Size:180mmX150mm,moving range:15mmX15mm)
Illumination unit
6V 20W halogen lamp, brightness control.

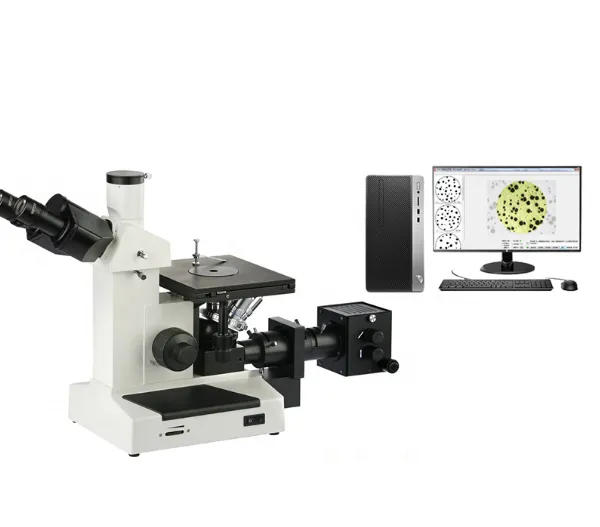

HST101-BW Trinocular Inverted Metallurgical Microscope
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify the product quality in industrial application.
This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
Trinocular Inverted Metallurgical Microscope is mainly used for metal identification and analysis of the internal structure of organizations.
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify the product quality in industrial application.
This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
2.Specifications
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Standard configuration |
Model |
|||
Item |
Specification |
HST101-BW |
||

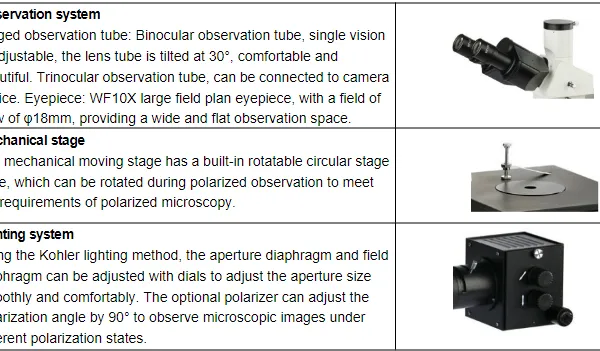

Optical system |
Finite distance chromatic aberration correction optical system |
Included |
||
Observation tube |
Hinged binocular tube, 30° tilt; trinocular tube, interpupillary distance and diopter adjustable. |
Included |
||
Eyepiece |
Large field of view WF10X (Φ18mm) |
Included |
||
Long distance flat field achromatic objective lens |
PL L 10X/0.25 WD8.90mm |
Included |
||
PL L 20X/0.40 WD3.75mm |
Included |
|||
PL L 40X/0.65 WD2.69mm |
Included |
|||
SP 100X/0.90 WD0.44mm (oil) |
Included |
|||
Converter |
Ball internal positioning four-hole adapter |
Included |
||
Focusing mechanism |
Coarse and fine coaxial focusing, fine adjustment grid value: 0.002mm; stroke (from the focus point on the stage surface): 30mm. Adjustable coarse movement, with locking and limiting devices |
Included |
||
Stage |
Double-layer mechanical mobile (size: 180mmX150mm, moving range: 15mmX15mm) |
Included |
||
Lighting system |
6V 20W halogen lamp, adjustable brightness |
Included |
||
Color filter |
Yellow color filter, green color filter, blue color filter |
Included |
||
Metallographic analysis system |
FMIA2023 genuine metallographic analysis software, 5 million pixel Sony chip camera device, 0.65X adapter mirror interface, micrometer (with specifications: 100x0.01mm, 100x0.01cm, calibration points d = 0.15mm, d = 0.07mm). |
Included |
||
Optional configuration |
||||
Item |
Specification |
|||
Eyepiece |
Large field of view WF16X (Φ11mm) |
O |
||
Large field of view WF10X (Φ18mm) with cross dividing ruler |
O |
|||
Long distance flat field achromatic objective lens |
PL L 50X/0.70 WD2.02mm |
O |
||
PL L 60X/0.75 WD1.34mm |
O |
|||
PL L 80X/0.80 WD0.96mm |
O |
|||
PL L 100X/0.85 WD0.4mm |
O |
|||
Ball internal positioning five-hole adapter |
O |
|||
converter |
Analyzer group, polarizer group |
O |
||
Polarizing accessories |
12-megapixel Sony chip camera device |
O |
||
camera device |
HP Business Jet |
O |
||
