Home > Instruments & Meters > Test Instrument > Test Machine > HST-MoPao5ST Double-disc,Pneumatic Individual Pressure Loading Metallographic Automatic Grinding Polishing Machine (Pneumatic)

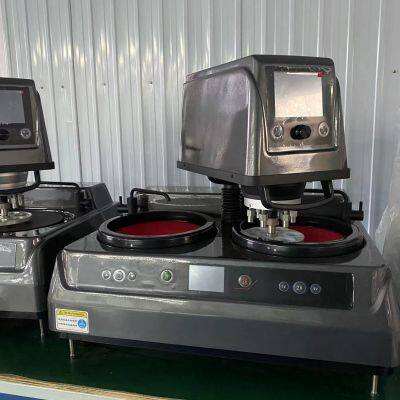

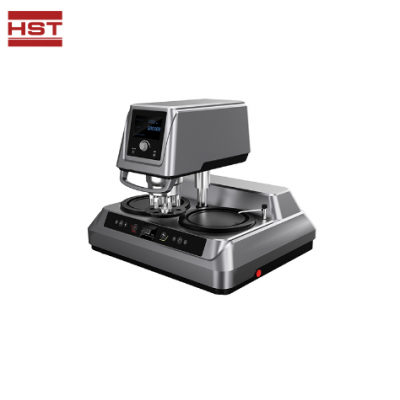

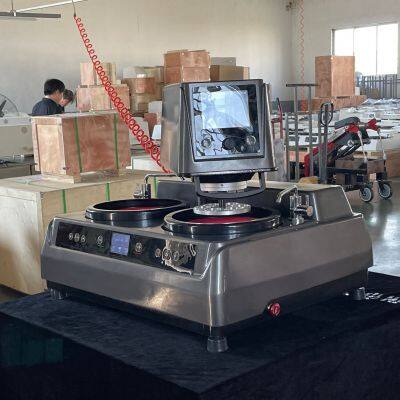

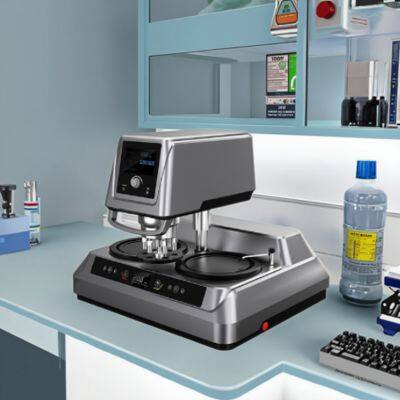

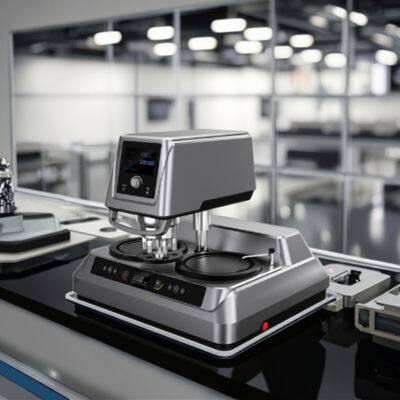

HST-MoPao5ST Double-disc,Pneumatic Individual Pressure Loading Metallographic Automatic Grinding Polishing Machine (Pneumatic)
US$ 41847.45
1 - 2 Set
US$ 39048.29
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
Grade1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-MoPao4T Metallographic Automatic Grinding Polishing Machine (Pneumatic) Single-disc 250mmUS$ 23512.95 - 27151.86MOQ: 1 Set -
HST-MoPao4ST Double-disc,Pneumatic Individual Pressure Loading Metallographic Automatic Grinding Polishing Machine (Pneumatic)US$ 26452.07 - 29951.02MOQ: 1 Set
-
HST-MoPao3T Metallographic Automatic Grinding Polishing Machine (Pneumatic) Single-disc 250mmUS$ 23652.91 - 27711.69MOQ: 1 Set
-
HST-MoPao 2D Double-Disc Grinding and Polishing Testing Equipment Machine With 1-Year Warranty Two Steps Stationary SpeedUS$ 6158.16 - 8047.59MOQ: 1 Set
-
HST-MoPao260 Metallographic Sample Double-disc Constant-speed Grinding and Polishing MachineUS$ 4758.58 - 6018.20MOQ: 1 Set
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing, grinding and polishing
customized support
OEM, ODM
power
900W
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Metallographic Specimen Polishing Grinding Machine
Model
HST-MoPao5ST
Grinding Disc Diameter
250(customizable 230,300)
Grinding and polishing disc speed
50-1000 r/min and 400/600/800/1000 r/min (four-level fixed speed)
Grinding and polishing head speed
5-150 r/min (stepless speed regulation)
Number of prepared samples
6pcs
Net weight
100kg
Dimension
735*570*590mm
Power supply
Single phase 220V, 50HZ
HST-MoPao5ST Metallographic Specimen Grinding and Polishing Machine
If you want to know more about the models and prices, please contact Lisa:
Email: lisa@hssdtest.com WhatsApp/WeChat: 008615866783008
Products Description
1、Application
The HST-MoPao5ST automatic grinding and polishing machine is a double-disc desktop machine, which is an integrated machine with central force pressurization and single-point pressurization. It is a new generation of high-precision, automated sample preparation process grinding and polishing equipment manufactured in accordance with international standards and using international advanced technology. It has the functions of optional selection of the rotation direction of the grinding and polishing disk, quick replacement of the grinding and polishing disk, multi-sample clamp and pneumatic single-point loading. This machine adopts an advanced microprocessor control system, which makes the rotation speed of the grinding and polishing disc and grinding and polishing head infinitely adjustable, and the sample preparation pressure and time settings are intuitive and convenient. Just replace the grinding and polishing disc or sandpaper and fabric to complete the grinding and polishing process.
This enables the machine to exhibit a wider range of applicability. It has the characteristics of stable rotation, safety and
reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
This enables the machine to exhibit a wider range of applicability. It has the characteristics of stable rotation, safety and
reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
2、Features:
* All-in-one machine for central force pressurization and single-point pressurization
* One machine with multiple functions, easily completes pre-grinding, rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples
* Double disc single control, four-level fixed speed, speed control system optimized for grinding and polishing machines
* Easy-to-control LCD screen, simple operation
* Finely ground and surface-treated work disc to ensure smooth sample surface
* The integrally formed high-strength fiberglass material shell is sturdy and durable.
* All-in-one machine for central force pressurization and single-point pressurization
* One machine with multiple functions, easily completes pre-grinding, rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples
* Double disc single control, four-level fixed speed, speed control system optimized for grinding and polishing machines
* Easy-to-control LCD screen, simple operation
* Finely ground and surface-treated work disc to ensure smooth sample surface
* The integrally formed high-strength fiberglass material shell is sturdy and durable.
3、Technical Parameters
Model | HST-MoPao5ST |
Grinding Disc Diameter | φ250mm (φ230mm, φ300mm can be customized) |
Grinding and polishing disc speed | 50-1000 r/min (stepless speed regulation) and 400 / 600 / 800 / 1000 r/min (4-level fixed speed) |
Grinding and polishing disc steering | adjustable forward and reverse selection |
Grinding and polishing head speed | 5-150 r/min (stepless speed regulation) |
Number of prepared samples | 6 pcs |
Input air source | 0.4-0.7Mpa |
Loading range | 0-0.7Mpa adjustable, factory parameters are set within 0.2Mpa |
Sample preparation time | 0-3000S |
Sample diameter | Factory standard φ30mm (can be customized with diameters φ22-φ45mm) |
Machine Dimensions | 735*570*590mm |
Packing Dimensions | 935*865*540mm |
net weight | 100kg |
gross weight | 102kg |
Total power | 900W |
power supply | Single phase 220V, 50HZ |
4、Metallographic consumables.
Focus on metallographic equipment and consumables research and development of professional brand
Company Profile
Customer Photos
Exhibition
Certifications
FAQ:
Are your company a trading one or a factory ?
Factory + trade (integration),19 years focusing on test instruments field,14 years exporting experience.
How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
