Application:

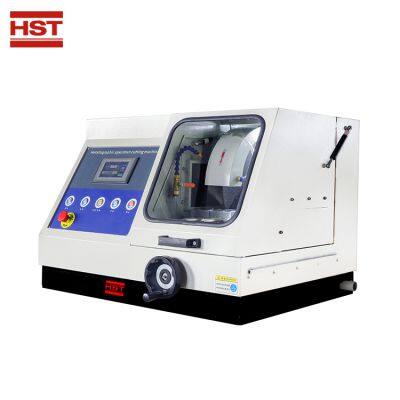

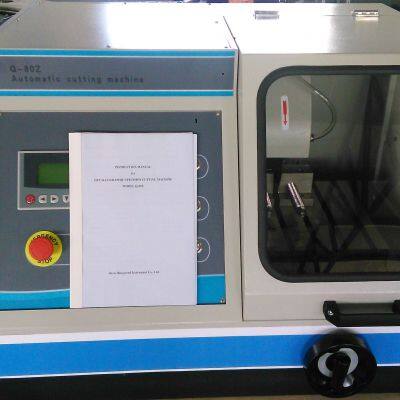

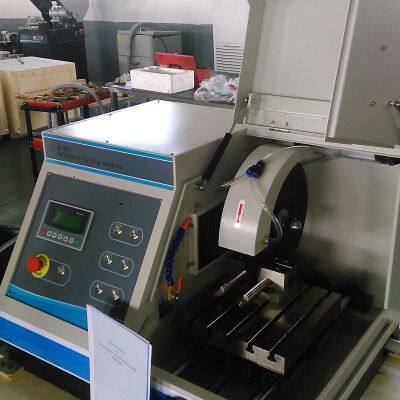

Model Q-80Z manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. Various cutting data can be displayed on high definition backlight type LCD screen. Manual cutting and automatic cutting means can be switched at will. Large cutting chamber, tempered glass observing window and it is equipped with 60L cooling liquid water tank. Non-burning loss swing type cutting means which improved the cutting quality Automatic withdraw function after cutting is finished, bidirectional feeding means increase the length of deep cutting.
|
Model |
HST-Q100B |
|
Cutting chamber shell |
Steel plate |
|
Maximum cutting diameter |
100mm (pipe) |
|
Infeed depth tracking |
LCD display |
|
Platform moves in Y direction |
275mm |
|
Cutting table size |
280*310mm |
|
Cutting disc specifications |
350*2.5*32mm |
|
Clamping table specifications |
The fixture table is divided into left and right parts, with a central cutting edge. |
|
Cutting method |
Manual / Auto |
|
Feeding method |
Any adjustment (manual/auto, dual use) |
|
Cutting speed |
Maximum 1mm/s |
|
Automatic cutting method |
Intermittent cutting (metal workpieces) and continuous cutting (non-metallic workpieces) |
|
Cutting distance |
Set as needed |
|
Reset mode |
Automatic reset |
|
Cooling system |
Automatic (water cooling 2 channels) |
|
Water tank capacity |
50L |
|
Spindle speed |
2100r/min |
|
Motor Power |
3KW |
|
Machine type |
Desktop |
|
Power supply |
380V |
|
Dimensions |
887*795*600mm |
|
Package Size |
1100*940*800mm |
|
Net weight |
210kg |
|
Gross weight |
241kg |
|
Water tank dimensions |
470*370*300mm |
|
Water tank packaging size |
540*460*460mm |
|
Water tank net weight |
17kg |
|
Gross weight of water tank |
27kg |
