HST Grinding Polishing Machine Grinding Disc Metallographic Automatic Grinding Polishing Machine HST-MoPao2T
US$ 31490.55
1 - 2 Set
US$ 30090.97
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
Grade1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST HOT MOPAO3 Touch Screen Desktop Single Disc Automatic Polishing Grinding MachineUS$ 28691.39 - 29391.18MOQ: 1 Set -
Metallographic Analysis Electrolytic Polishing Corrosion TesterUS$ 1995 - 2005MOQ: 1 Set
-
HST-Q100B Metallographic Automatic Cutting MachineUS$ 15360.40 - 16165.15MOQ: 1 Set
-
HST-Q80Z Precision Metallographic Sample Cutting EquipmentUS$ 15360.40 - 16165.15MOQ: 1 Set
-
HST-MoPao5ST Double-disc,Pneumatic Individual Pressure Loading Metallographic Automatic Grinding Polishing Machine (Pneumatic)US$ 39048.29 - 41847.45MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing, grinding and polishing
customized support
OEM, ODM
power
1.1KW
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Metallographic automatic grinding polishing machine
Model
HST-MoPao2T
Power supply
220V 50HZ
Grinding Disc Diameter
250mm (203mm available on request)
Grinding and polishing disc speed
50-1000 rpm
Grinding and polishing head speed
5-150 rpm
Number of prepared samples
1~4 pcs
Net weight
98kg
Dimension
594*795*687 (mm)

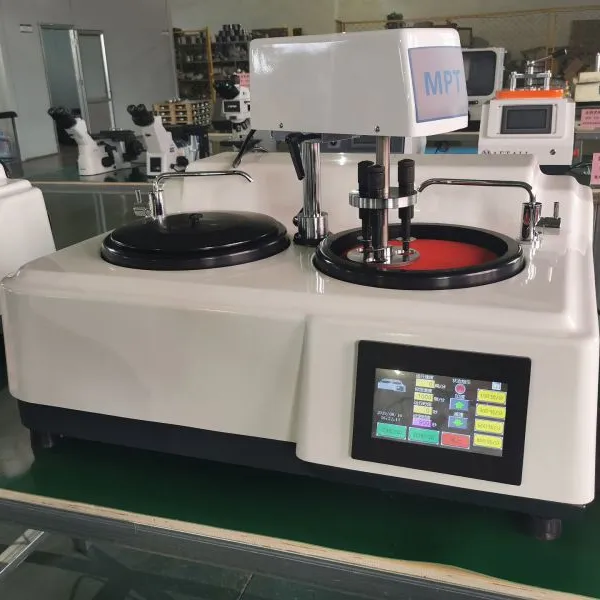

HST-MoPao-2T Metallographic Specimen Polishing And Grinding Machine
Products Description
Overview
The MoPao2T automatic grinding and polishing machine is a dual-disc tabletop machine. Manufactured in accordance with international standards and utilizing advanced technology, it is a new generation of high-precision, automated grinding and polishing equipment.
This machine utilizes an advanced microprocessor control system, enabling stepless adjustment of the grinding and polishing disc and head speeds. Sample pressure and time settings are intuitive and convenient. The operator simply replaces the grinding and polishing disc or metallographic sandpaper and polishing fabric to complete the grinding and polishing process, extending its versatility. This machine features flexible and quick disc replacement, multiple sample holders, pneumatic single-point loading, and automatic abrasive dispensing (with an optional dispenser). It also boasts smooth, safe, reliable operation, low noise levels, and a cast aluminum base for enhanced grinding and polishing rigidity. This machine is equipped with a water cooling device and an abrasive flushing nozzle, which cools the specimen during grinding to prevent damage to the metallographic structure caused by overheating and to flush away abrasive particles. Its ABS housing and stainless steel components enhance its aesthetic appearance, improve corrosion and rust resistance, and facilitate cleaning.
The MoPao2T automatic grinder and polisher is suitable for automated sample preparation from rough grinding to fine grinding and rough polishing of metallographic specimens. It is an ideal sample preparation device for laboratories in enterprises, research institutes, and universities.
Main Technical Parameters
1. Grinding and Polishing Disc Diameter: φ250mm (φ203mm available on request)
2. Grinding and Polishing Disc Speed: 50-1000 rpm (Stepless Speed Adjustment), 150 rpm, 300 rpm (Two-Stage Fixed Speed)
3. Grinding and Polishing Head Speed: 5-150 rpm (Stepless Speed Adjustment)
4. Loading Range: 5-60 Newtons (N)
5. Compressed Air Pressure: 0.6-0.9 MPa
6. Sample Preparation Time: 0-995 seconds (s)
7. Specimen Diameter: φ30mm (φ22mm, φ45mm, or other sizes available on request)
8. Maximum Number of Samples Prepared at a Time: 4
9. Input Voltage: Single-Phase AC220V 50Hz
10. Input Power: 1.1KW
11. Dimensions: 594×795×687 (mm)
12. Net Weight: 98kg
13. Gross Weight: 122kg
2. Grinding and Polishing Disc Speed: 50-1000 rpm (Stepless Speed Adjustment), 150 rpm, 300 rpm (Two-Stage Fixed Speed)
3. Grinding and Polishing Head Speed: 5-150 rpm (Stepless Speed Adjustment)
4. Loading Range: 5-60 Newtons (N)
5. Compressed Air Pressure: 0.6-0.9 MPa
6. Sample Preparation Time: 0-995 seconds (s)
7. Specimen Diameter: φ30mm (φ22mm, φ45mm, or other sizes available on request)
8. Maximum Number of Samples Prepared at a Time: 4
9. Input Voltage: Single-Phase AC220V 50Hz
10. Input Power: 1.1KW
11. Dimensions: 594×795×687 (mm)
12. Net Weight: 98kg
13. Gross Weight: 122kg
