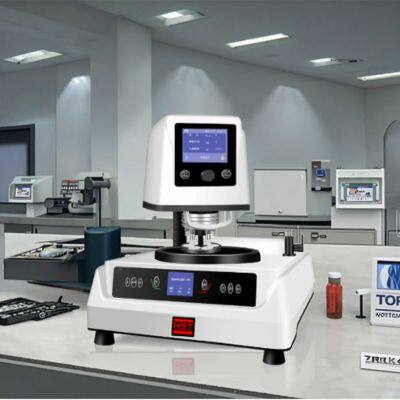

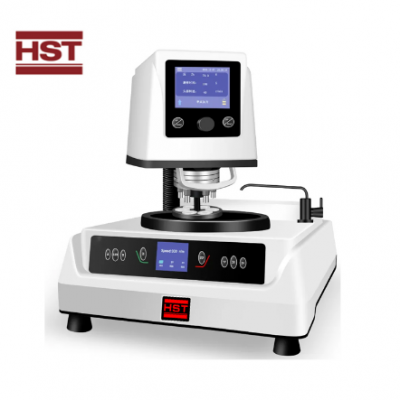

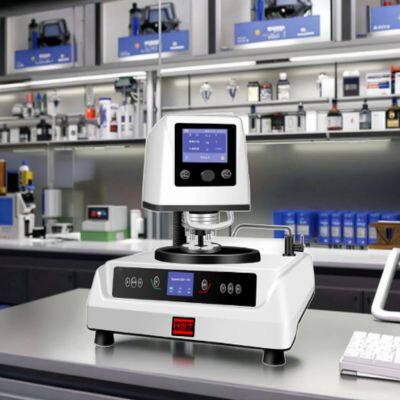

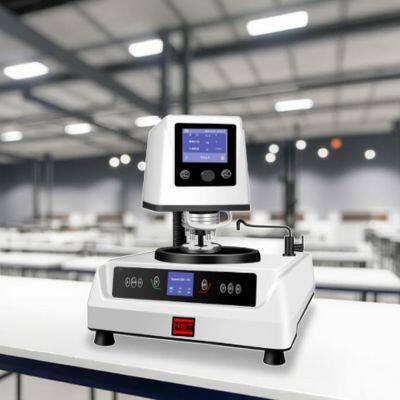

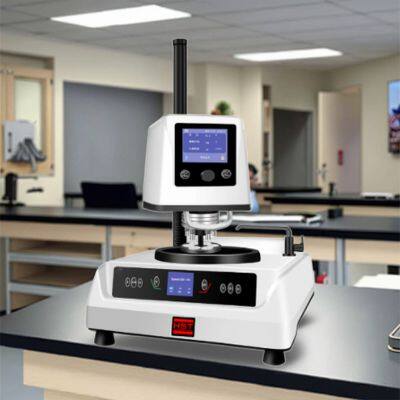

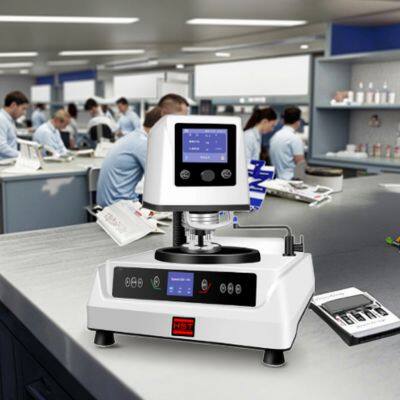

HST-MoPao4T Metallographic Automatic Grinding Polishing Machine (Pneumatic) Single-disc 250mm
US$ 27151.86
1 - 2 Set
US$ 23512.95
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
Grade1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-MoPao4ST Double-disc,Pneumatic Individual Pressure Loading Metallographic Automatic Grinding Polishing Machine (Pneumatic)US$ 26452.07 - 29951.02MOQ: 1 Set -
HST-MoPao3T Metallographic Automatic Grinding Polishing Machine (Pneumatic) Single-disc 250mmUS$ 23652.91 - 27711.69MOQ: 1 Set
-
HST-MoPao 2D Double-Disc Grinding and Polishing Testing Equipment Machine With 1-Year Warranty Two Steps Stationary SpeedUS$ 6158.16 - 8047.59MOQ: 1 Set
-
HST-MoPao260 Metallographic Sample Double-disc Constant-speed Grinding and Polishing MachineUS$ 4758.58 - 6018.20MOQ: 1 Set
-
HST-Mopao160E Metallographic Grinding Polishing Machine Single-disc Polishing MachineUS$ 5948.22 - 7697.69MOQ: 1 Set
Accuracy
Grade1
brand name
HST
place of origin
Shandong, China
Application
Laboratory Testing, Lab Testing, Auto Testing, grinding and polishing
customized support
OEM, ODM
power
900W
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Metallographic Specimen Polishing Grinding Machine
Model
HST-MoPao4T
Grinding Disc Diameter
250(customizable 230,300)
Grinding and polishing disc speed
50-1000 rpm, 400/600/800/1000 rpm
Grinding and polishing head speed
5-150 r/min (stepless speed regulation)
Number of prepared samples
4pcs
Net weight
60kg
Dimension
550*760*640mm
Power supply
Single phase 220V, 50HZ
HST-MoPao4T Metallographic Specimen Grinding and Polishing Machine
If you want to know more about the models and prices, please contact Lisa:
Email: lisa@hssdtest.com WhatsApp/WeChat: 008615866783008
Products Description
1、Application
The HST-MoPao4T automatic grinding and polishing machine is a single table grinding and polishing machine. According to international standards and using international advanced technology, a new type of grinding and polishing equipment with single-point force is developed and manufactured. (No electronic proportional valve, manual pressure regulation)
2、Features:
The rotation direction of the grinding and polishing disk can be selected arbitrarily, and the grinding and polishing disk can be quickly replaced; it has a multi-sample clamp and a specific pneumatic single-point loading function. This machine adopts an advanced microprocessor control system, which makes the rotation speed of the grinding and polishing disc and grinding and polishing head infinitely adjustable, and the sample preparation pressure and time settings are intuitive and convenient. Just replace the grinding and polishing disc or sandpaper and fabric to complete the grinding and polishing process. This enables the machine to exhibit a wider range of applicability. It has the characteristics of stable rotation, safety and reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
The automatic locking function of the electromagnetic lock of the grinding head of this machine is safe and convenient. Equipped with a water cooling device, the sample can be cooled during grinding to prevent damage to the metallographic structure due to overheating of the sample and to flush away the abrasive particles at any time; coupled with a fiberglass shell and stainless steel standard parts, the appearance is more beautiful. It is beautiful and elegant, and has improved anti-corrosion and anti-rust properties and is easy to clean.
It is suitable for automatic sample preparation of metallographic samples from rough grinding, fine grinding, rough polishing to fine polishing. It is an ideal sample preparation equipment for enterprises, scientific research institutions and laboratories of universities and colleges.
The rotation direction of the grinding and polishing disk can be selected arbitrarily, and the grinding and polishing disk can be quickly replaced; it has a multi-sample clamp and a specific pneumatic single-point loading function. This machine adopts an advanced microprocessor control system, which makes the rotation speed of the grinding and polishing disc and grinding and polishing head infinitely adjustable, and the sample preparation pressure and time settings are intuitive and convenient. Just replace the grinding and polishing disc or sandpaper and fabric to complete the grinding and polishing process. This enables the machine to exhibit a wider range of applicability. It has the characteristics of stable rotation, safety and reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
The automatic locking function of the electromagnetic lock of the grinding head of this machine is safe and convenient. Equipped with a water cooling device, the sample can be cooled during grinding to prevent damage to the metallographic structure due to overheating of the sample and to flush away the abrasive particles at any time; coupled with a fiberglass shell and stainless steel standard parts, the appearance is more beautiful. It is beautiful and elegant, and has improved anti-corrosion and anti-rust properties and is easy to clean.
It is suitable for automatic sample preparation of metallographic samples from rough grinding, fine grinding, rough polishing to fine polishing. It is an ideal sample preparation equipment for enterprises, scientific research institutions and laboratories of universities and colleges.
3、Technical Parameters
Model | HST-MoPao4T |
Grinding Disc Diameter | φ250mm (φ230mm, φ300mm can be customized) |
Grinding and polishing disc speed | 50-1000 r/min (stepless speed regulation) and 300/600/900 r/min (3-level fixed speed) |
Grinding and polishing disc steering | adjustable forward and reverse selection |
Grinding and polishing head speed | 5-150 r/min (stepless speed regulation) |
Number of prepared samples | 4 pcs |
Input air source | 0.4-0.7Mpa |
Loading range | 0-0.7Mpa adjustable |
Sample preparation time | 0-3000S |
Sample diameter | Factory standard φ30mm (can be customized with diameters φ22-φ45mm) |
Dimensions | 550*760*640mm |
net weight | 60kg |
Input power | 1.1KW |
power supply | Single phase 220V, 50HZ |
4、Metallographic consumables.
Focus on metallographic equipment and consumables research and development of professional brand
Company Profile
Customer Photos
Exhibition
Certifications
FAQ:
Are your company a trading one or a factory ?
Factory + trade (integration),19 years focusing on test instruments field,14 years exporting experience.
How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
