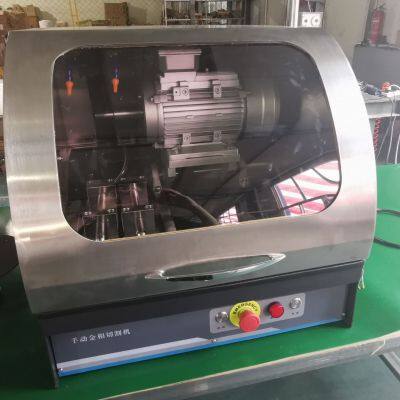

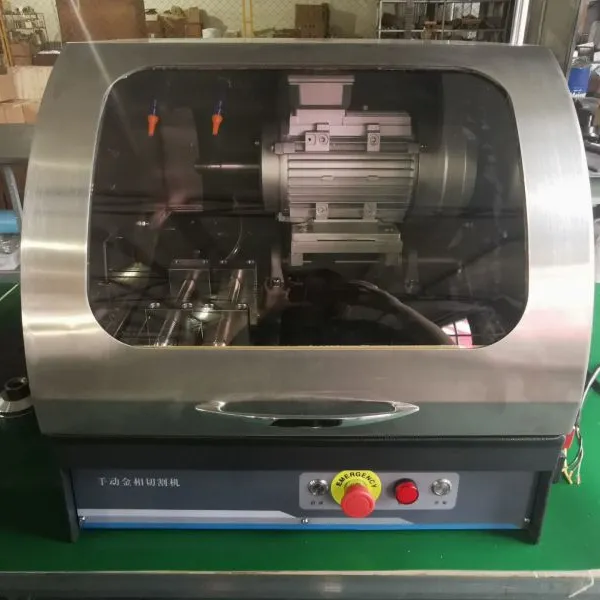

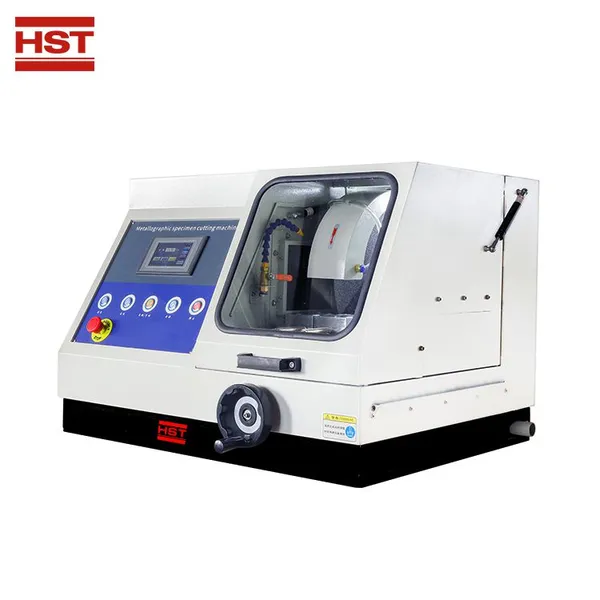

Model Q-80Z manual / automatic metallographic specimen cutting machine
Application:
Model Q-80Z manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. Various cutting data can be displayed on high definition backlight type LCD screen. Manual cutting and automatic cutting means can be switched at will. Large cutting chamber, tempered glass observing window and it is equipped with 60L cooling liquid water tank. Non-burning loss swing type cutting means which improved the cutting quality Automatic withdraw function after cutting is finished, bidirectional feeding means increase the length of deep cutting.
Application:
The HST-Q80Z metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metal materials in order to observe the metallographic and petrographic structures of the materials.
Features:
This machine is equipped with a cooling system to take away the heat generated during cutting.
The cutting machine uses a high-speed rotating thin-reinforced grinding wheel to cut the sample.
The machine has the advantages of easy operation and easy maintenance, and is superior to similar domestic products.
The cutting range and transmission power are also larger than similar domestic products, making it the best choice for sample cutting.
Parameters:
|
Model |
HST-Q80Z |
|
Cutting chamber shell |
Steel plate |
|
Maximum cutting diameter |
80mm (pipe) |
|
Infeed depth tracking |
LCD Display |
|
Platform moves in Y direction |
275mm |
|
Cutting table size |
280*310mm |
|
Cutting disc specifications |
350*2.5*32mm |
|
Clamping platform specifications |
The fixture table is divided into left and right parts, with a central cutting edge |
|
Cutting method |
Manual / Auto |
|
Feeding method |
Any adjustment (Manual / Auto dual use) |
|
Cutting speed |
Maximum 1mm/s |
|
Automatic cutting method |
Intermittent cutting (metal workpieces) and continuous cutting (non-metallic workpieces) |
|
Cutting distance |
Set as needed |
|
Reset mode |
Automatic reset |
|
Cooling system |
Automatic (water cooling 2 channels) |
|
Water tank capacity |
50L |
|
Spindle speed |
2100r/min |
|
Motor Power |
3KW |
|
Machine type |
Desktop |
|
Power supply |
380V |
|
Dimensions |
887*795*600mm |
|
Package Size |
1100*940*800mm |
|
Net weight |
210kg |
|
Gross weight |
241kg |
|
Water tank dimensions |
470*370*300mm |
|
Water tank packaging size |
540*460*460mm |
|
Water tank net weight |
17kg |
|
Water tank gross weight |
27kg |
