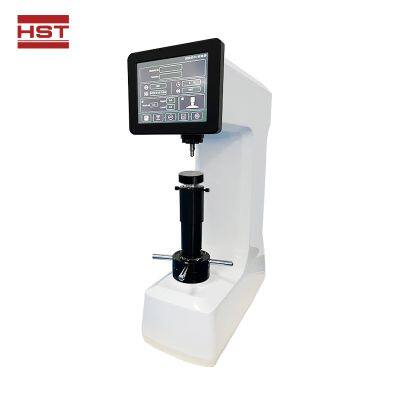

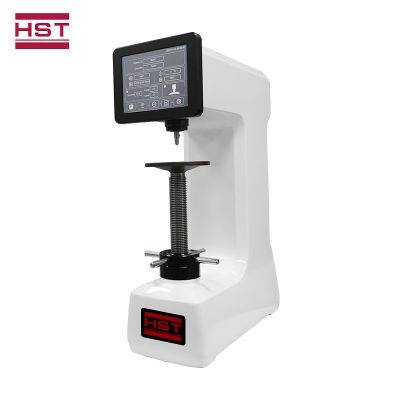

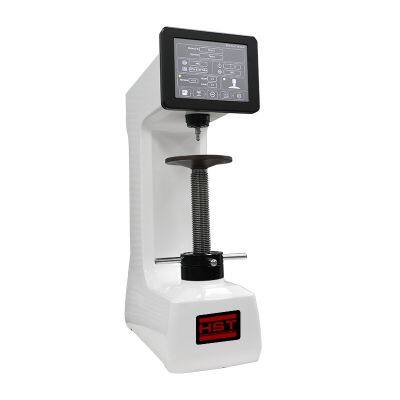

HST-HRS150T Touch Screen Rockwell Hardness Tester Touch Screen Digital Display,Electronic Driven
US$ 1280 - 1480
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality HST-HR150A Manual Rockwell Hardness TesterUS$ 980 - 1180MOQ: 1 Set -
High Quality HST-HRS150B Digital Display High Stroke Rockwell Hardness TesterUS$ 2100 - 2380MOQ: 1 Set
-
HST-HUS-250 Universal Hardness Tester 1-Year Warranty Brinell, Rockwell, Vickers Hardness MachinesUS$ 13000 - 14500MOQ: 1 Set
-
HVS-30Z Digital Automatic 30kgf Turrent Vickers Hardness Tester High Precision for Test EquipmentUS$ 2500 - 3000MOQ: 1 Set
-
HBRV-187.5D Brinell Rockwell Vick Hardness Tester Universal Hardness Tester at an Price Including Durometer MeasurementUS$ 800 - 1500MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
,
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Logo/graphic design
Digital Printing
Product name
Touch screen Rockwell Hardness Tester
Model
HST-HRS150T
Test force application mode
Main initial test: Automatic (loading, retaining and unloading)
Measuring Range
20-95hra,10-100hrb,10-70hrc
All Testing Force
60kg,100kg,150kg
Maximum height for the specimen
400mm
Head center to machine wall distance
170mm
Hardness resolution
0.1HR
measuring ruler
HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM,
Power supply
AC220V,50Hz
HST-HRS150T Touch Screen Rockwell Hardness Tester
Electric loading
Electric loading
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Applications Range :
The Rockwell hardness test method can measure harder and softer samples by using diamond indenter and steel ball indenter. It is applicable to a wide range of scenarios and can be used to measure ferrous metals, non-ferrous metals, non-metallic materials, as well as quenching, tempering, etc. Heat treated Rockwell hardness. Such as hard alloy, carburizing pot, annealed steel, tempered steel, quenched steel, hard cast iron, mild steel, aluminum alloy, titanium alloy, malleable cast iron, etc. hardness measurement.
Specifications
Item |
HST-HRS150 |
Measuring Range |
20-88HRA, 20-100HRB, 20-70HRC |
All Testing Force |
60 kgf (588.4N), 100 kgf (980.7N), 150 kgf (1471N) |
Max. Height Of Speciment |
210 mm |
Distance from indenter center to machine wall |
165 mm |
Harness resolution |
0.1HR |
Weight |
98 KG |
Overall Dimension |
522 x 220 x 729mm (L×W×H) |
Power Supply |
AC220V, 50Hz |
Features:
This machine cancels the weight afterforce, using the electronic loading test force, improve the accuracy of the force value,using the measurement value more stable; Eight-inch touch screen operation and display, humanized operation interface, complete the instrument Settings; Bluetooth link computer, analyze and manage data through special hardness software; Customers can choose different levels of automation according to the product testing requirements. Powerful data processing function, test the 15 hardness and surface Roche scale is optional, and can be converted to HB, HV and other hardness system; The operation interface is simple, the humanized interface sets parameters, the host independently stores 500 sets of data, and the power is off without losing data. It has value correction function to correct each ruler; the hardness value can be corrected according to the size of the cylinder. Initial load holding time and loading time can be set freely (optional automatic model completes the workpiece with one key)
