Home > Instruments & Meters > Test Instrument > Test Machine > Manual Rockwell Hardness Tester HST-HR150A Head Center to Machine Wall Distance 135mm High Quality for Test
Manual Rockwell Hardness Tester HST-HR150A Head Center to Machine Wall Distance 135mm High Quality for Test
US$ 430 - 800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤±1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HUS-187.5 Universal Hardness Tester 1-Year Warranty Brinell, Rockwell, Vickers Hardness MachinesUS$ 8500 - 11000MOQ: 1 Set -
HST-HBRV250TH Touch Screen Display Universal Hardness Tester Brinell, Rockwell, Vickers Hardness MachinesUS$ 3980 - 4780MOQ: 1 Set
-
HST-HBRV187.5STEW Universal Hardness Tester 187.5kgf 1-Year Warranty Brinell, Rockwell, Vickers Hardness MachinesUS$ 8380 - 9980MOQ: 1 Set
-
HST-HBRV250STE Electric Universal Hardness Tester 1-Year Warranty Brinell, Rockwell, Vickers Hardness MachinesUS$ 3980 - 4680MOQ: 1 Set
-
HST-HBRVI-150-XYZFully Automatic Instrumentation Universal Hardness Testers Series Brinell, Rockwell, Vickers Hardness MachinesUS$ 55000 - 65800MOQ: 1 Set
Accuracy
≤±1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Manual Rockwell Hardness Tester
Model
HST-HR150A
Test force
60,100,150kgf
Measuring range
20-95HRA,10-100HRBW,20-70HRC
Maximum height for the specimen
170mm
Head center to machine wall distance
135mm
Hardness resolution
0.5HR
Power supply
AC220V,50Hz
Outline dimension
470*210*620mm
Net weight
82kg

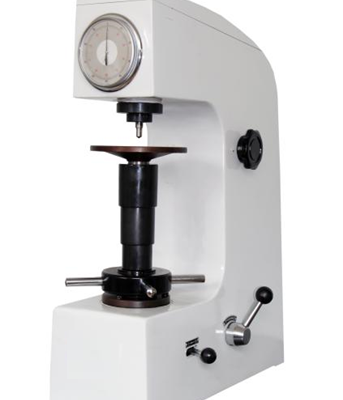

HST-HR150A Manual Rockwell hardness tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Applications :
2.Specifications
HST-HR150A Manual Rockwell hardness tester is normal type of rockwell hardness tester. Wide range of application, easy to operate, with good economy and practicability.
2.Specifications
Item | HST-HR150A |
Test force | 60、100、150kgf |
588.4、980.7、1471N | |
Measuring range | 20-95HRA，10-100HRBW，20-70HRC； |
Maximum height is allowed for the specimen | 170mm |
Head center to machine wall distance | 135mm |
Hardness resolution | 0.5HR |
Power supply | AC220V，50Hz |
Outline dimension | 470*210*620mm |
Package size | 565*415*730mm |
Net weight | 75kg |
Gross weight | 82kg |
Product Features:
* Using mechanical manual testing, no power supply, a wide range of application, easy to operate
* Good economy and practicality; the dial directly read the hardness value, and optional Roche other scale, such as HRD, HRF and other hardness scale
* Using integrated casting precision hydraulic buffer, no buffer leakage, and smooth loading, no impact, adjustable speed
* The accuracy meets the GB/T230.2-2018, ISO6508-2 and US ASTM E18 standards
* Good economy and practicality; the dial directly read the hardness value, and optional Roche other scale, such as HRD, HRF and other hardness scale
* Using integrated casting precision hydraulic buffer, no buffer leakage, and smooth loading, no impact, adjustable speed
* The accuracy meets the GB/T230.2-2018, ISO6508-2 and US ASTM E18 standards
Scale,Indenter, Test Force and Application Field of the Rockwell Test
Scale | Type of Indenter | Initial Test Force | Total Test Force (N) | Application Field |
HRA | Diamond indenter Ball indenter | 98.07N（10kg） | 588.4（60kg） | Hard Alloys, Tempered steel with carbonized surface, Hardened Steel Plates |
HRD | 980.7（100kg） | Thin steel plates, steel with tempered surface | ||
HRC | 1471（150kg） | Quenched steel, tempered steel, hard cast iron | ||
HRF | φ1.5875m （1/ 16inches） | 588.4（60kg） | Cast iron, aluminum-magnesium alloy, bearing alloy, annealed copper alloy, thin and soft steel plate | |
HRB | 980.7（100kg） | Soft steel, aluminum alloy, copper alloy, forgeable cast iron, annealed steel | ||
HRG | 1471（150kg） | Phosphorus bronze, beryllium bronze, forgeable cast iron | ||
HRH | Ball indenter φ3. 175mm （1/8 inches） | 588.4（60kg） | Aluminum, Zinc, Lead | |
HRE | 980.7（100kg） | Bearing alloy, tin, hard plastic materials | ||
HRK | 1471（150kg） |
