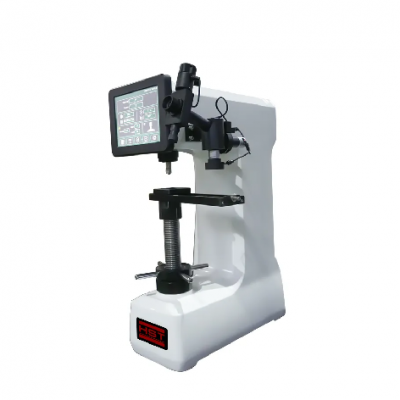

HST-HBRV187.5STE Electric Universal Hardness Tester 1-Year Warranty Brinell, Rockwell, Vickers Hardness Machines
US$ 2300 - 2750
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HBRV187.5D Electric Universal Hardness Tester 1-Year Warranty Brinell, Rockwell, Vickers Hardness MachinesUS$ 1250 - 1460MOQ: 1 Set -
Digital Hardness Tester Meter Shore 0-100 A/C/D for Testing Hardness in Plastic Leather Rubber Various Multi-Resin MaterialsUS$ 384.89MOQ: 50 Pieces
-
HST Optical Brinell Vickers Type Rockwell Hardness Tester HST-HRD150 Universal Model Grade1 Accuracy 380V 2.0KW IP65US$ 4023.80 - 4128.77MOQ: 1 Set
-
HST-HBM3000EG Portal Brinell Hardness Testing MachineUS$ 1000 - 2000MOQ: 1 Set
-
HST-HBM3000EG Portal Brinell Hardness TesterUS$ 1000 - 2000MOQ: 1 Set
Accuracy
≤± 1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V, 110 V
warranty
1 Year
Product name
Universal hardness tester
Model
HST-HBRV187.5STE
Hardness scale
Brucellosis, Vickers, Rockwell, Superficial Rockwell
Rockwell test force
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell test force
2.5kgf(24.5N)~187.5kgf(1837.5N)
Vickers test force
3kgf(29.4N)~ 100kgf(980N)
Resolution
Rockwell: 0.1HR, Brinell: 0.1HB, Vickers: 0.1HV
Max. Height of Specimen
Rockwell: 230mm, Brinell & Vickers: 160mm
Throat
170mm
Power supply
AC110-220V,50Hz
HST-HBRV187.5STE Electric Universal Hardness Tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Product Introduction :
Specifically designed to provide industry-leading user-friendliness and rugged construction, the machine delivers clear images for accurate and repeatable Vickers, Rockwell and Brinell hardness test measurements in the laboratory as well as in original production environments. It is ideal for educational institutions such as technical schools, universities and multifunctional general workshops.
The machine comes standard with an 8-inch LCD touch screen, CCD camera (optional), automatic measurement software (optional) and consumables for all 3 testing methods, providing a turnkey solution for your hardness testing needs.
2.8-inch large-screen touch screen interface, easy to operate;
3. Closed-loop system with high-precision weighing sensor, force sensor and force feedback system, no need to install weights;
4. Lighting: Integrated LED lighting for test point lighting;
5. Manual or automatic measurement of Vickers and Brinell indentation is optional;
6. Automatic test force correction and force compensation to ensure high accuracy and stability of measured values;
7. With hardness conversion function;
8. The Rockwell hardness testing function has the ability to automatically correct the radius of curvature;
9. Standards: Meet or even exceed the requirements of ASTM and ISO standards
3.Specifications
Model HST-HBRV187.5STE is a multifunctional Brinell, Rockwell and Vickers integrated hardness testing machine. To cover a variety of hardness testing methods, a wide test force range is designed: from 3 kg to 187.5 kg to perform hardness testing on many different materials and components in various industries.
Specifically designed to provide industry-leading user-friendliness and rugged construction, the machine delivers clear images for accurate and repeatable Vickers, Rockwell and Brinell hardness test measurements in the laboratory as well as in original production environments. It is ideal for educational institutions such as technical schools, universities and multifunctional general workshops.
The machine comes standard with an 8-inch LCD touch screen, CCD camera (optional), automatic measurement software (optional) and consumables for all 3 testing methods, providing a turnkey solution for your hardness testing needs.
Features:
1.Adopt Brinell, Rockwell and Vickers test principles and testing methods;
2.8-inch large-screen touch screen interface, easy to operate;
3. Closed-loop system with high-precision weighing sensor, force sensor and force feedback system, no need to install weights;
4. Lighting: Integrated LED lighting for test point lighting;
5. Manual or automatic measurement of Vickers and Brinell indentation is optional;
6. Automatic test force correction and force compensation to ensure high accuracy and stability of measured values;
7. With hardness conversion function;
8. The Rockwell hardness testing function has the ability to automatically correct the radius of curvature;
9. Standards: Meet or even exceed the requirements of ASTM and ISO standards
3.Specifications
Model |
HST-HBRV187.5STE |
Rockwell Test Force |
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
Superficial Test Force |
15kgf(147.11N),30kgf(294.2N),45kgf(441.3kgf) （optional） |
Brinell Test Force |
2.5kgf(24.5),5kgf(49N),6.25kgf(61.25N),10kgf(98N),15.625kgf(153.125N),30kgf(294N),31.25kgf(306.25N),62.5kgf(612.5N)100kgf(980N), 125kgf(1225N), 187.5kgf(1837.5N) |
Vickers Test Force |
3kgf(29.4N)5kgf(49N),10kgf(98N),20kgf(196N),30kgf(294N),50kgf(490N), 100kgf(980N) |
Indenter |
Diamond Rockwell Indenter, Diamond Vickers Indenter, ф1.588mm, ф2.5mm, ф5mm Ball Indenter |
Loading Method |
Automatic (Loading/Dwell/Unloading) |
Hardness Reading |
Touch Screen Display |
Test Scale |
HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100 |
Conversion Scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
Lense magnification |
Eyepiece:15X, Objective:2.5X(Brinell),5X(vickers),optional 10X,20X |
Magnification |
Brinell: 37.5×, Vickers: 75× |
Resolution |
Rockwell: 0.1HR, Brinell: 0.1HB, Vickers: 0.1HV |
Dwell Time |
0~60s |
Data Output |
Printer |
Max. Height of Specimen |
Rockwell: 230mm, Brinell & Vickers: 160mm |
Throat |
170mm |
Power Supply |
AC110-220V，50Hz |
Execute Standard |
ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2 ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2 ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2 |
Dimension |
475×200×700mm，Packing Dimension: 620×420×890mm |
Weight |
Net Weight: 64kg，Gross Weight: 92kg |

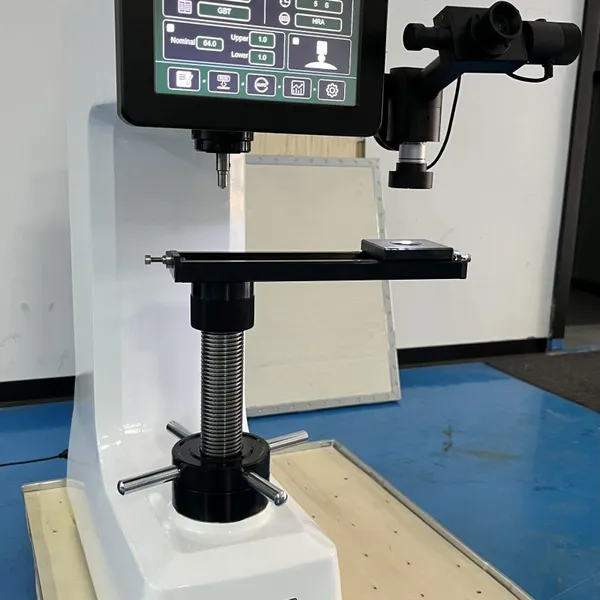

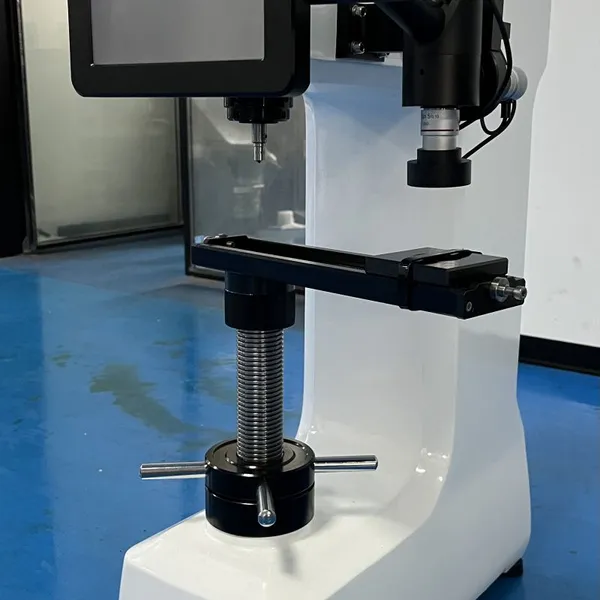

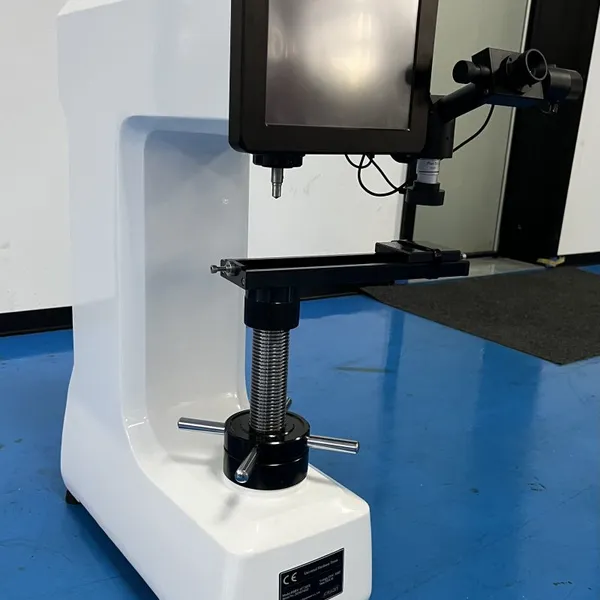

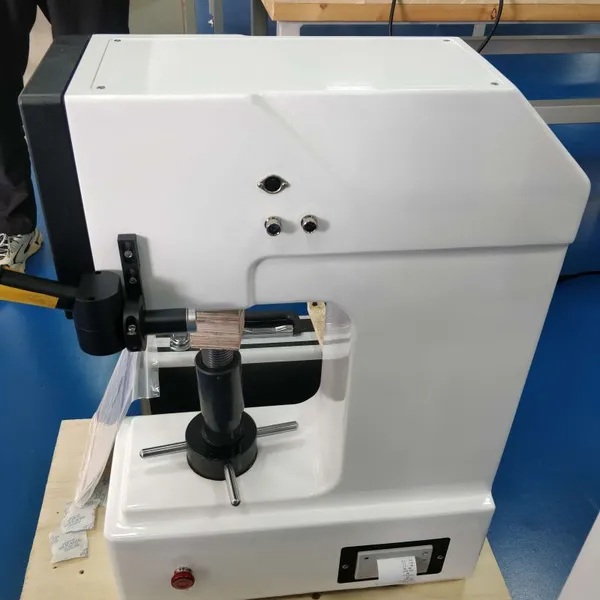

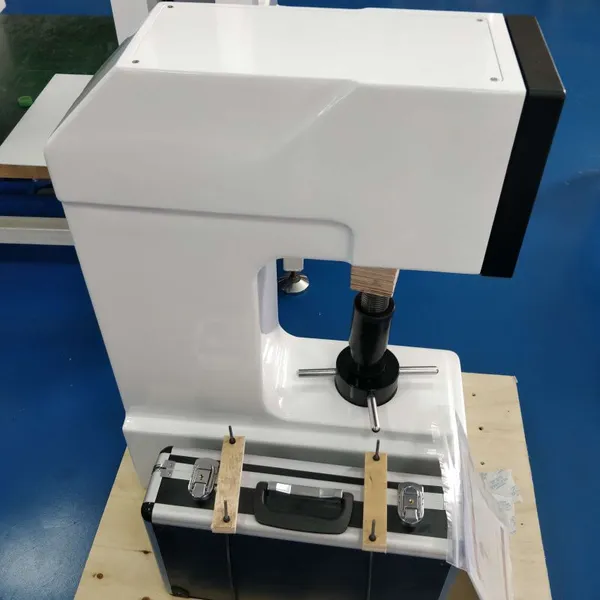

Detailed Photos:
Digital eyepiece (for Vickers, Brinell hardness test) Built-in cold light source (for Vickers hardness test)
External ring lamp (for Brinell hardness test) Slipped test table, frictionless screw
