Home > Instruments & Meters > Test Instrument > Test Machine > HST-HBRV250TH Touch Screen Display Universal Hardness Tester Brinell, Rockwell, Vickers Hardness Machines
HST-HBRV250TH Touch Screen Display Universal Hardness Tester Brinell, Rockwell, Vickers Hardness Machines
US$ 3980 - 4780
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HBRV187.5STEW Universal Hardness Tester 187.5kgf 1-Year Warranty Brinell, Rockwell, Vickers Hardness MachinesUS$ 8380 - 9980MOQ: 1 Set -
HST-HBRV250STE Electric Universal Hardness Tester 1-Year Warranty Brinell, Rockwell, Vickers Hardness MachinesUS$ 3980 - 4680MOQ: 1 Set
-
HST-HBRVI-150-XYZFully Automatic Instrumentation Universal Hardness Testers Series Brinell, Rockwell, Vickers Hardness MachinesUS$ 55000 - 65800MOQ: 1 Set
-
HST-HBRV250DX Universal Hardness Testers Series With Touch Screen 1-Year Warranty Brinell, Rockwell, Vickers Hardness MachinesUS$ 6150 - 7400MOQ: 1 Set
-
HST-HBRV187.5TH Touch Screen Display Universal Hardness Tester Brinell, Rockwell, Vickers Hardness MachinesUS$ 2400 - 2800MOQ: 1 Set
Accuracy
≤± 1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V, 110 V
warranty
1 Year
Product name
Universal hardness tester
Model
HST-HBRV250TH
Hardness scale
Brucellosis, Vickers, Rockwell, Superficial Rockwell
Rockwell test force
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell test force
15.628kgf(153.2N)~250kgf(2452N)
Vickers test force
5kgf(49.03N)~ 100kgf(980N)
Resolution
Rockwell: 0.1HR, Brinell: 0.1HB, Vickers: 0.1HV
Max. Height of Specimen
Rockwell: 180mm, Brinell & Vickers: 165mm
Throat
160mm
Power supply
AC110-220V,50Hz
HST-HBRV250TH Universal Hardness Tester
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Product Introduction :
It has the characteristics of high test accuracy, simple operation, high sensitivity, convenient use and stable indication.
Equipped with a built-in printer, and an optional RS232 data cable can be connected to a computer through a hyper terminal to export measurement reports.
2. Car baking paint, high-grade paint quality, strong scratch resistance, and still bright as new after many years of use;
3. It can be used immediately after power on, no need to install weights；
4. It adopts a large-screen touch LCD interface, which is rich in content and easy to operate;
5. The electronic closed-loop control applies the test force, and the force sensor controls the test force with an accuracy of 5‰, which fully realizes the automatic operation of the application, maintenance and removal of the test force;
6. It can be converted to each other through the measured hardness values of each scale；
7. The fuselage is equipped with a microscope, and is equipped with a high-definition microscope optical system to make the observation and reading clearer and reduce errors；
8. Equipped with a built-in micro-printer, and optional RS232 data cable can be connected to the computer through a hyper terminal to export measurement reports.
9. It has three test methods of Brinell, Rockwell and Vickers, and multi-level test force, which can meet various hardness test requirements;
It can be converted into each other through the measured hardness values of each scale;
3.Specifications
HBRVS-187.5TH The digital Universal Hardness Tester has a novel appearance, complete functions, convenient operation, clear and intuitive display, and stable performance. It is a high-tech product integrating light, machine and electricity. Test, with multi-level test force, can meet a variety of hardness testing needs.
It has the characteristics of high test accuracy, simple operation, high sensitivity, convenient use and stable indication.
Equipped with a built-in printer, and an optional RS232 data cable can be connected to a computer through a hyper terminal to export measurement reports.
Features:
1. The body part of the product is formed at one time by the casting process, and has undergone a long-term aging treatment. Compared with the paneling process, the long-term use of the deformation is extremely small, and it can effectively adapt to various harsh environments;；
2. Car baking paint, high-grade paint quality, strong scratch resistance, and still bright as new after many years of use;
3. It can be used immediately after power on, no need to install weights；
4. It adopts a large-screen touch LCD interface, which is rich in content and easy to operate;
5. The electronic closed-loop control applies the test force, and the force sensor controls the test force with an accuracy of 5‰, which fully realizes the automatic operation of the application, maintenance and removal of the test force;
6. It can be converted to each other through the measured hardness values of each scale；
7. The fuselage is equipped with a microscope, and is equipped with a high-definition microscope optical system to make the observation and reading clearer and reduce errors；
8. Equipped with a built-in micro-printer, and optional RS232 data cable can be connected to the computer through a hyper terminal to export measurement reports.
9. It has three test methods of Brinell, Rockwell and Vickers, and multi-level test force, which can meet various hardness test requirements;
It can be converted into each other through the measured hardness values of each scale;
3.Specifications
MODLE |
HST-HBRV250TH |
Rockwell test force |
60、100、150Kgf |
588、980、1471N |
|
Rockwell scale range |
HRA、HRB、HRC、HRD、HRF、HRG |
Rockwell measuring range |
20-90HRA、20-100HRB、20-70HRC |
Brinell test force |
15.625、31.25、62.5、125、187.5、250Kgf |
153.2、306.5、612.9、1226、1839、2452N |
|
Brinell scale range |
HBW2.5/15.625、 HBW2.5/31.25、 HBW2.5/62.5 、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250 |
Brinell measuring range |
5-650HBW |
Vickers test force |
5、10、20、30、50、100Kgf |
49.03、98.07、196.1、294.2、490.3、980.7N |
|
Vickers scale range |
HV5、HV10、HV20、HV30、HV50、HV100 |
Vickers measuring range |
5-3000HV |
Overall lens magnification |
150X，75X，37.5X |
Max. allowable height of the test piece |
Rockwell 180mm |
Brinell 165mm |
|
Vickers 165mm |
|
The distance from the center of the indenter to the machine wall |
160mm |
power supply |
AC220V，50Hz |
Dimensions |
550*230*780mm |
weight |
80Kg |

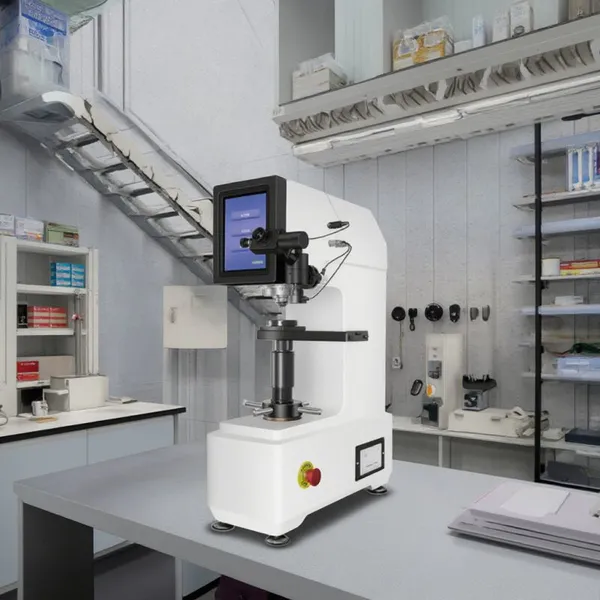

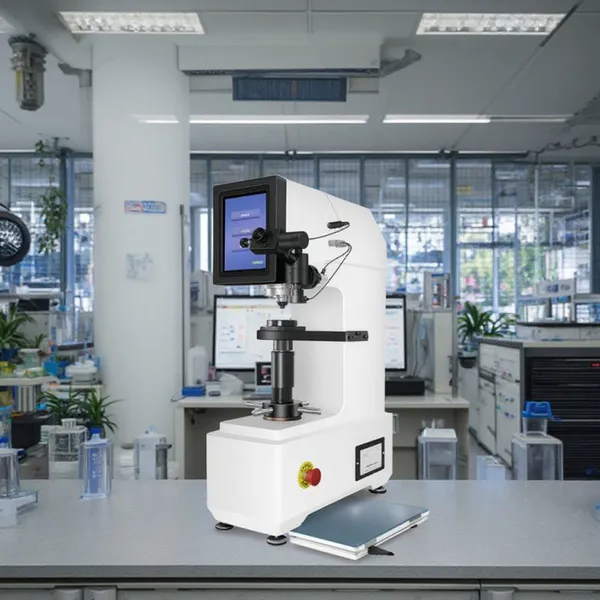

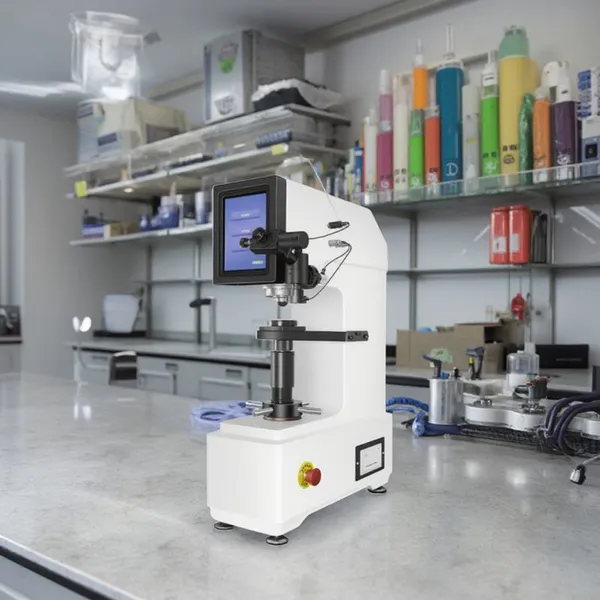

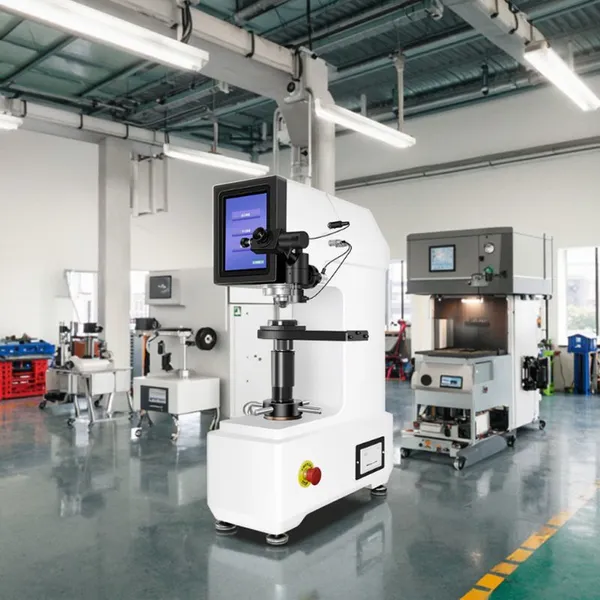

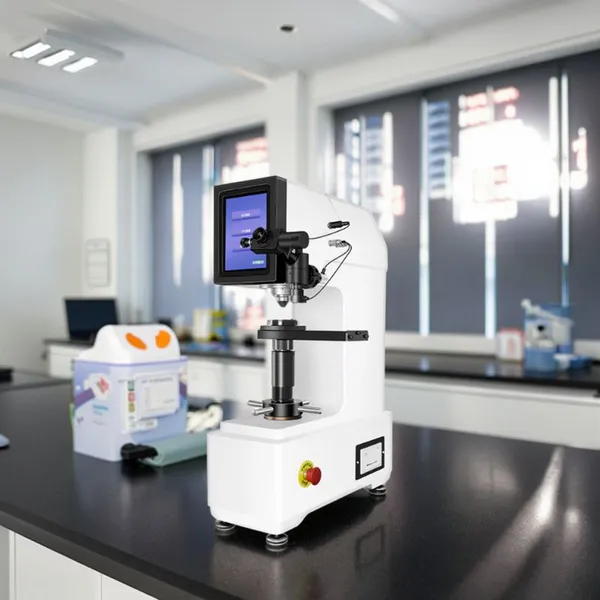

Detailed Photos:
