Home > Instruments & Meters > Physical Measuring Meter > Hardness Tester > HVS-1000ZTH 1kgf Touch Screen Automatic Turret Micro Vicker Hardness Testing Machine

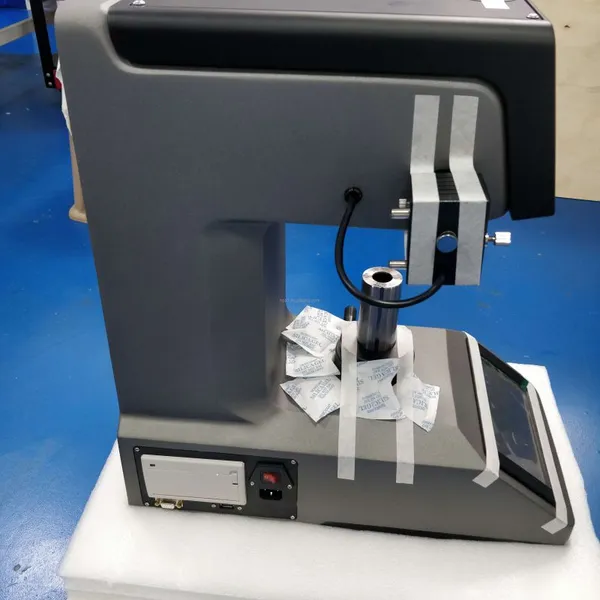

HVS-1000ZTH 1kgf Touch Screen Automatic Turret Micro Vicker Hardness Testing Machine
US$ 20993.70
≥1 Set
Key Specifications
Get Latest Price
type:
NEW
model number:
HVS-1000ZTH
brand name:
hensgrand
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HBS-3000ET 3000KGF Load Cell Digital Display Brinell Hardness Testing MachineUS$ 1000 - 2000MOQ: 1 Set -
W-20 Copper Portable Webster Hardness Tester for Hard BrassUS$ 299 - 799MOQ: 1 Set
-
HBRV-187.5STEW 3-187.50kg Automatic Loading Universal Hardness TesterUS$ 9200 - 9800MOQ: 1 Set
-
HST-HBRV250STEW 250KGF Electronic Loading Touch Screen Universal Hardness TesterUS$ 2200 - 2800MOQ: 1 Set
-
Digital Rockwell Hardness Tester Rokwell Metal Hardness TesterUS$ 10496.85MOQ: 1 Set
type
NEW
model number
HVS-1000ZTH
brand name
hensgrand
place of origin
Shandong, China
customized support
OEM, ODM
material
Plastic, Metal
size
1
warranty
1 YEAR
Product Name
Touch Screen automatic turrent micro vicker hardness testing machine
Test force
10gf-1000gf
Test force application method
automatic loading
Min.test unit
0.025um Electronic measuring eyepiece
Test microscope magnification
100X (Observation) 400X(test)
X-Y Test table
Size:100*100mm
Data output
LCD display readout, built-in printer and RS-232 interface
Max Height of Specimen
110mm
est power and load retention time
1-60s
Distance from center head to outer wall
110mm
Products Description
1.Application
HVS- 1000TH-Z touch screen automatic turret digital micro hardness
tester is mainly used for micro Vickers hardness measurement of
various metals and some non-metallic materials. ), non-ferrous metals,
heat post-treated parts, various tiny and thin parts, glass, ceramics,
agate, gemstones, etc. for hardness determination, and also suitable
for carbonization, effective depth of quenching and hardening layer,
coating, surface coating and welding Heat-affected parts of parts. It can
also be used to observe the internal metallographic structure of various
metal parts and to collect, display and output images. It is especially
suitable for measuring the hardness gradient distribution curve of the
workpiece and measuring the surface hardness of the gear after heat
treatment, and the depth of the effective hardened layer.3.Main technical parameters
HST-HVS-1000TH Manual Turret Digital Micro Hardness Tester |
||
Name |
Specification |
|
Test Force |
10gf、25gf、50gf、100gf、200gf、300gf、500gf、1kgf |
|
0.098N 、0.245N 、0.49N 、0.98N 、1.96N 、2.94N 、4.9N 、9.8N |
||
Convert Scales |
HRA 、HRB 、HRC 、HRD 、HRF 、HV 、HK 、HBW 、HR15N 、HR30N 、HR45N、 HR15T 、HR30T 、HR45T |
|
Min. Unit of measurement |
0.0025 μm |
|
Test Mode |
HV/HK |
|
Hardness Test Range |
5~3000HV |
|
Test Force Application Method |
Automatic (loading, dwelling, unloading) |
|
Turret Method |
Automatic |
|
Objective Lens |
10X 、40X |
|
Eyepiece |
10X |
|
Total Magnification |
100X (observation) 400X (measurement) |
|
Test Force Dwell Time |
1~60s |
|
X-Y Table Size |
100*100mm |
|
X-Y Test Table Maximum |
25*25mm |
|
Data Output |
Touch Screen Readout, Built-in Printer |
|
Max. Height of Specimen |
110mm |
|
The Distance From the Center of |
110mm |
|
Power Supply |
AC220V±5％，50~60Hz |
|
Executive Standard |
ISO 6507 ，ASTM E384 ， JIS Z2244 ， GB/T 4340 2 |
|
Dimensions |
405*290*480mm |
|
Net Weight |
About 40KG |
|
