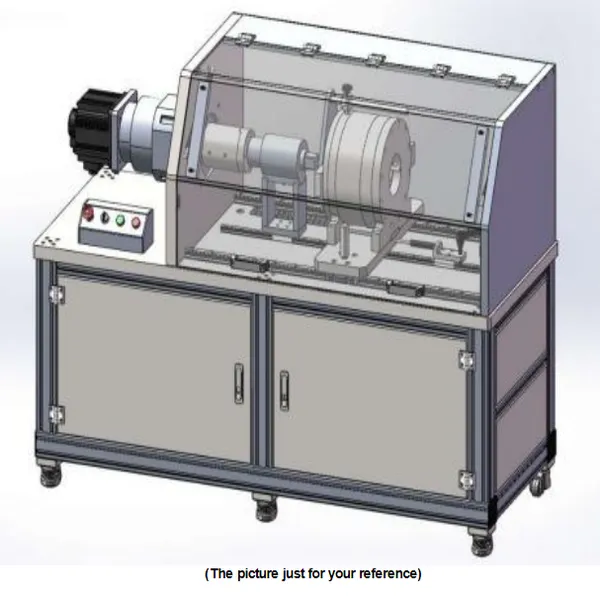

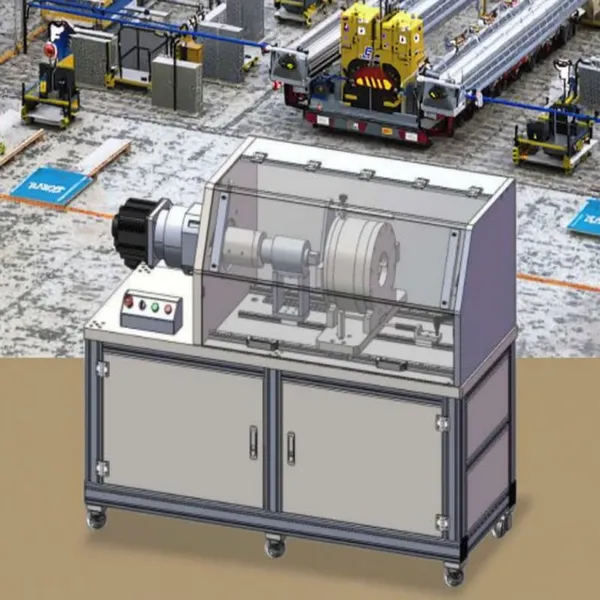

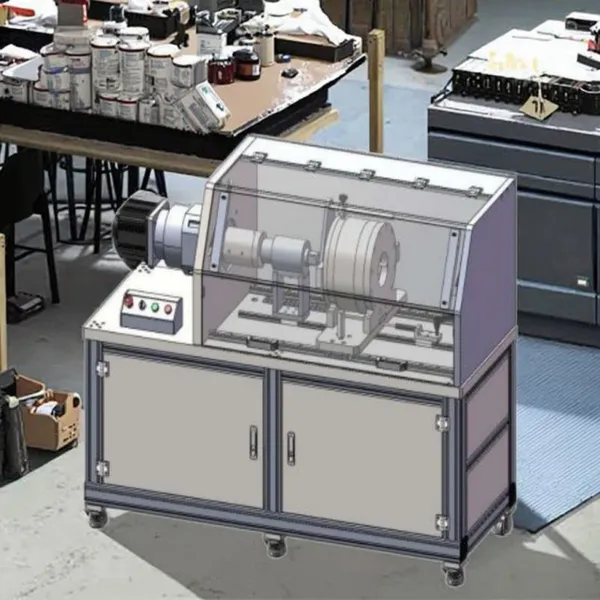

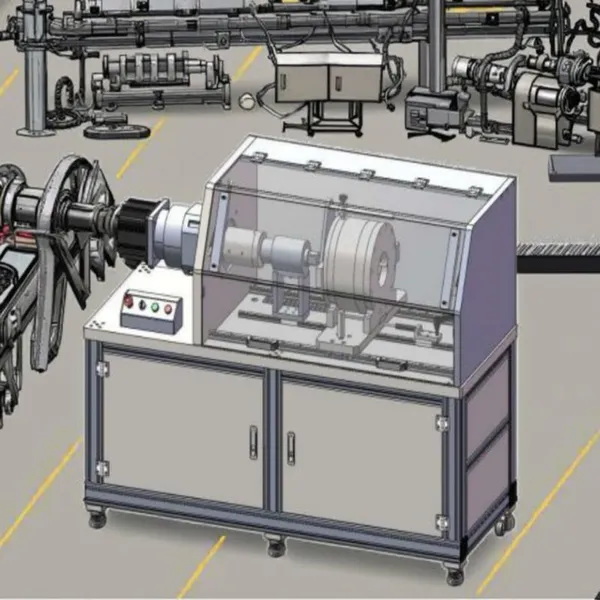

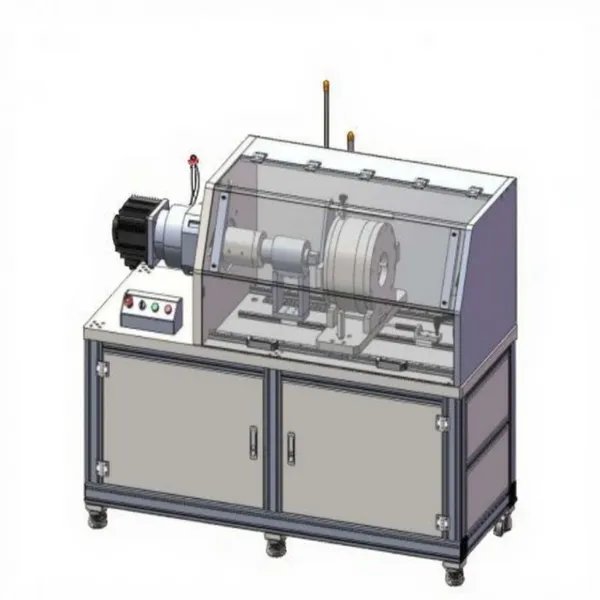

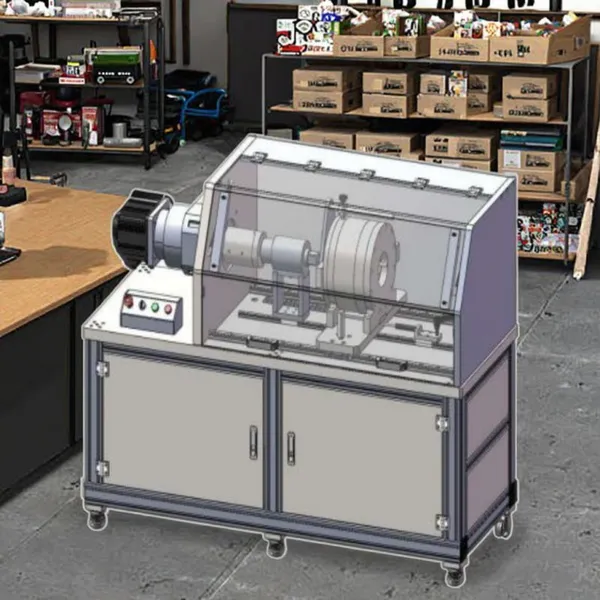

HST-BN7000F High Strength Bolt Coefficient Friction Testing Machine
US$ 722183.28
1 - 2 Set
US$ 603218.98
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-BF1000E M10-M20 Bolt Friction Coefficient Tester Bolt Testing EquipmentUS$ 101469.55 - 121063.67MOQ: 1 Set -
HST-BW1500F M33-M56 Computer Control High Strength Bolt Testing MachineUS$ 103568.92 - 187543.72MOQ: 1 Set
-
HST-WN50 Bone Screw Torque Testing MachineUS$ 123862.83 - 153953.80MOQ: 1 Set
-
HST-BW5000 M12-M36 High Strength Bolt Torsion Testing MachineUS$ 99370.18 - 117564.72MOQ: 1 Set
-
Wire and Cable Torsion Testing Machine/ Metal Wire Torsion TesterUS$ 18124.57 - 18194.54MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
7.5kw
Protection Class
IP65
Voltage
220 V, 380 V
warranty
1 Year
Product name
Bolt Testing Machine
Model
HST-BN7000F
Max test torque
7000Nm
Torque measurement range(7000Nm)
70-7000N m
Measurement range (3000NM)
30~3000 N.m
Axial force measurement range
8 to 800 kN
Relative error of torque indication
±1%
Torque resolution
1/500000 of maximum torque
Torsion speed
6 ~ 9600 ° /min
Power
Three-phase 380±10% VAC , 50Hz
HST-BN7000F High Strength Bolt Coefficient Friction Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
HST-BN7000F Fastener Friction Coefficient Testing Machine is a new generation of bolt and nut friction coefficient testing equipment independently developed by our company using internationally advanced technology. It is used to test total torque, end torque, thread torque, total friction coefficient, end friction coefficient, and thread friction coefficient of bolts and nuts. It meets ISO 16047 Fastener Test Methods - Torque/Clamp Force Test and automatically measures mechanical properties of bolts and nuts, including tightening torque, thread torque, bearing torque, axial tightening force, torque coefficient K, total friction coefficient μtot , thread friction coefficient μth , bearing surface friction coefficient μ b , etc.
"GB/T 10128-2007 Metal Room Temperature Torsion Test Method"
"GB/T 1231-2006 High Strength Large Hexagon Head Bolts, Large Hexagon Nuts, Washers for Steel Structures"
"NB/T31082-2016 High Strength Bolt Connection Pairs for Wind Turbine Towers"
"GB/T16823.3 Threaded Fastener Tightening Test Method"
"ISO 16047-2005 Fasteners. Torque Clamping Force Test"
“BS EN 14399-2:2015 High-strength structuralbolting assemblies forpreloading”
Standard
This model complies with the following standards:"GB/T 10128-2007 Metal Room Temperature Torsion Test Method"
"GB/T 1231-2006 High Strength Large Hexagon Head Bolts, Large Hexagon Nuts, Washers for Steel Structures"
"NB/T31082-2016 High Strength Bolt Connection Pairs for Wind Turbine Towers"
"GB/T16823.3 Threaded Fastener Tightening Test Method"
"ISO 16047-2005 Fasteners. Torque Clamping Force Test"
“BS EN 14399-2:2015 High-strength structuralbolting assemblies forpreloading”
Main parameters:
MODEL |
HST-BN7000F |
Maximum torque |
7000 N·m |
Torque measurement range(7000Nm) |
70-7000 N·m |
Measurement range (3000NM) |
30～3000 N.m |
Maximum axial force |
800 kN |
Axial force measurement range |
8 to 800 kN |
Testing machine level |
Level 1 |
Relative error of torque indication |
±1% |
Torque resolution |
1/500000 of maximum torque |
Torsion speed |
6 ~ 9600 ° /min |
Torsional speed relative error |
±1.0% of set value |
Applicable specimen screw length range |
30-900mm |
Bolt specifications |
M10 to M36 (up to 12.9 level) |
Motor power |
7.5kW |
Input power |
Three-phase 380±10% VAC , 50Hz , with neutral line, good grounding |
Motor operating voltage |
200VAC Note: Electrical control requires the addition of a corresponding transformer |
Equipment dimensions (when protective cover is closed) |
2100mm (length) ×800mm (width) ×1365mm (height) |
Equipment dimensions (when protective cover is closed) |
2100mm (length) ×800mm (width) ×2120mm (height) |
Sample operation center height |
1050mm |
Equipment weight |
About 1150 kg |
