Home > Instruments & Meters > Test Instrument > Test Machine > HST-WN50 Bone Screw Torque Testing Machine

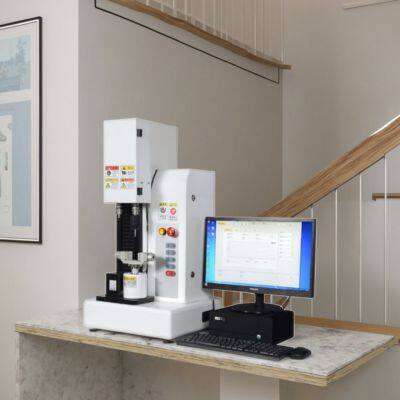

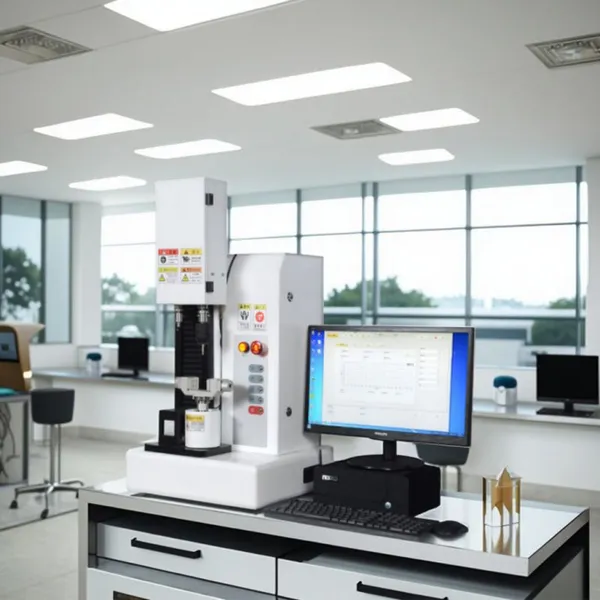

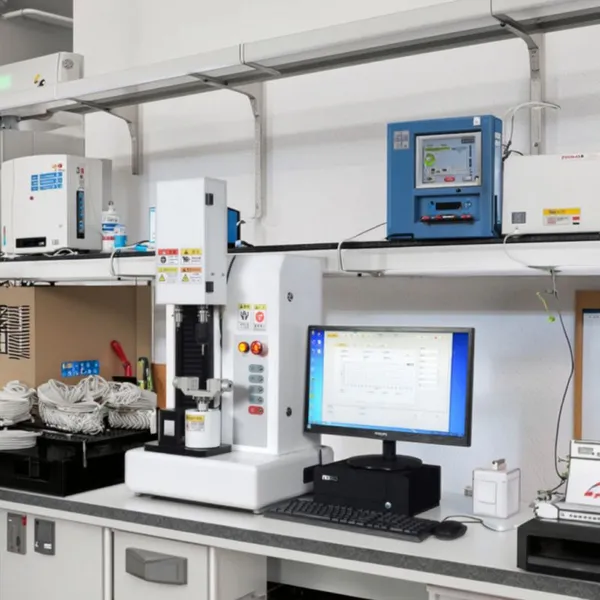

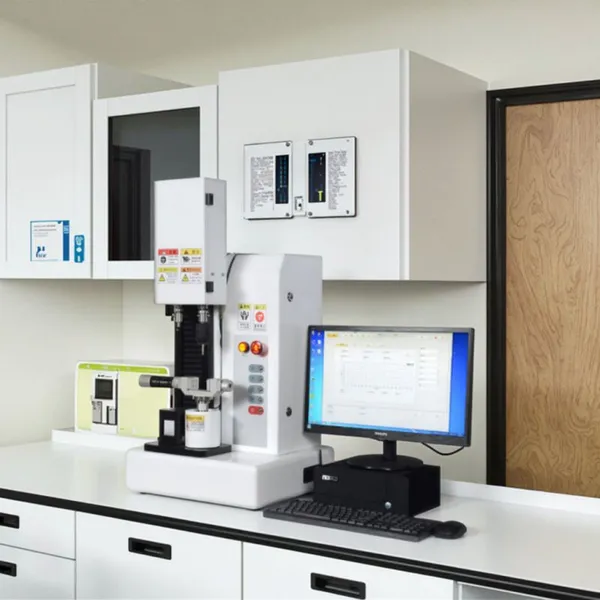

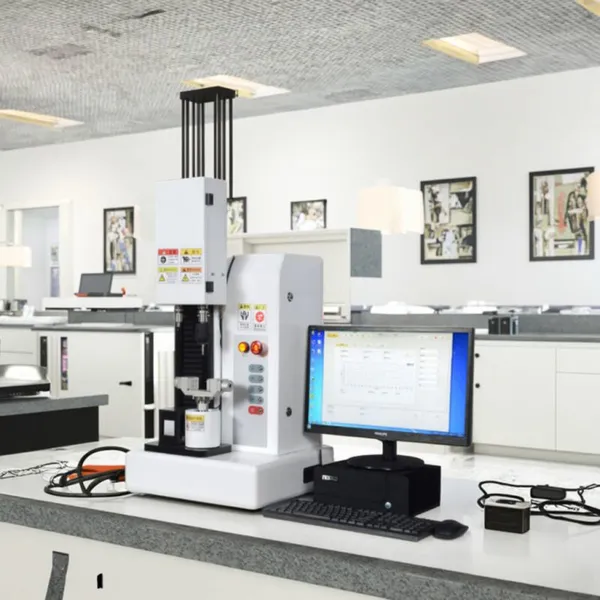

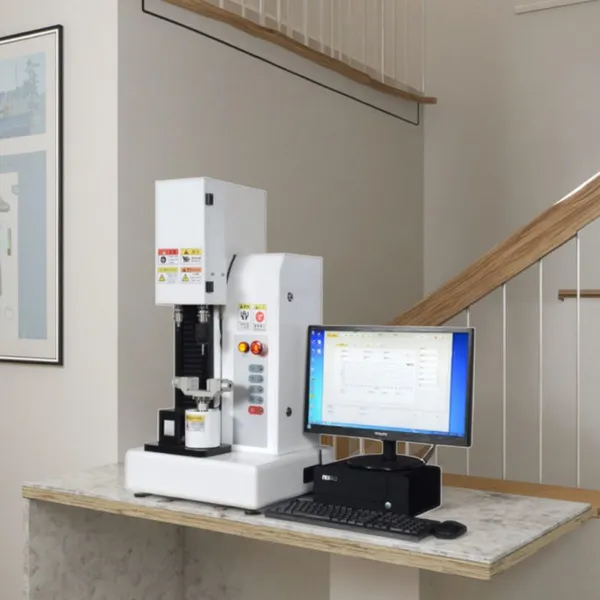

HST-WN50 Bone Screw Torque Testing Machine
US$ 153953.80
1 - 2 Set
US$ 123862.83
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-BW5000 M12-M36 High Strength Bolt Torsion Testing MachineUS$ 99370.18 - 117564.72MOQ: 1 Set -
Wire and Cable Torsion Testing Machine/ Metal Wire Torsion TesterUS$ 18124.57 - 18194.54MOQ: 1 Set
-
Computer Control Spring Testing Machine Manual Torsion Metal Materials Wire Torsion Testing Machine PriceUS$ 18124.57 - 18194.54MOQ: 1 Set
-
3mm 6mm 10mm Copper Metallic Wire Rod Torsion Testing Machine Cable Torsion Tester Torsion Test EquipmentUS$ 18124.57 - 18194.54MOQ: 1 Set
-
HST KASON HENSGRAND EZ-3 EZ-6 EZ-10 Wire Rod Torsion Testing MachineUS$ 18124.57 - 18194.54MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Bone Screw Torque Testing Machine
Model
HST-WN50
Max test torque
Less than 0.5% F. S
Speed Accuracy
0.01 mm/min
Torsion Speed
1 Rev/minute to 30 Rev/minute or Free adjustable
Effective Machine Travel
160mm(standard) 400mm(optional)
Torsion Angle Accuracy
±0.2 Degree
Torsion Angle Sensor Measurement
9999 degree
Axial Foree Load Cell Capacity
200N
Power
220V, 50Hz
HST-WN50 Medical Bone Screw Axial Tension And Torsion Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
Mainly used to test the torsion strength of medical bone nails, insert torsion and remove torsion, axial tensile strength and
self-tapping performance testing.
Simple multi-axis testing is often necessary to test the performance of a variety of devices such as pharmaceutical and surgical products, electronic components, and packaging. Across all industries, the development of new products and materials demands stringent standard-based and functional testing with a need for increased breadth of capability in testing equipment.
self-tapping performance testing.
Simple multi-axis testing is often necessary to test the performance of a variety of devices such as pharmaceutical and surgical products, electronic components, and packaging. Across all industries, the development of new products and materials demands stringent standard-based and functional testing with a need for increased breadth of capability in testing equipment.
Test standard:
Standard ISO 6475:1989《Implants for surgery-Metal bone screws with asymmetrical thread and spherical under-surface-Mechanical requirements and test methods》
ASTM F543-02 《Standard Specification Test Methods for Metallic Medical Bone Screws》
Standard ISO 6475:1989《Implants for surgery-Metal bone screws with asymmetrical thread and spherical under-surface-Mechanical requirements and test methods》
ASTM F543-02 《Standard Specification Test Methods for Metallic Medical Bone Screws》
Main parameters:
Model |
HST-WN50 |
Torque Range |
±5N.m |
Torque Accuracy |
Less than 0.5% F. S |
Speed Accuracy |
0.01 mm/min |
Torsion Speed |
1 Rev/minute to 30 Rev/minute or Free adjustable |
Speed Accuracy |
0.01 mm/min |
Torsion Angle Accuracy |
±0.2 Degree |
Torsion Angle Sensor Measurement Range |
9999 degree |
Axial Foree Load Cell Capacity |
200N |
Load Cell Accuracy |
Less Than 0.5% F.S. |
Load Cell Resolution |
0.01 N |
Effective Machine Travel |
160mm(standard) 400mm(optional) |
Jigs for Metal Bone Screws Testing |
ISO 6475:1989 ASTM F543 |
Software |
Full licensed and free upgrade able |
Power supply |
220V, 50Hz |
Specimen
