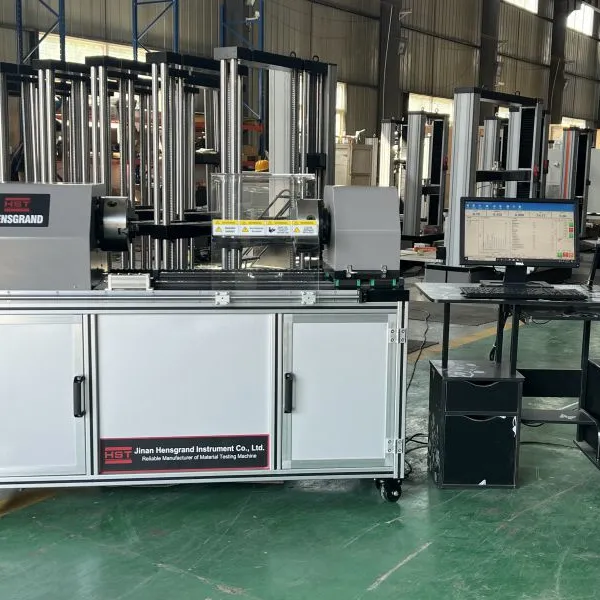

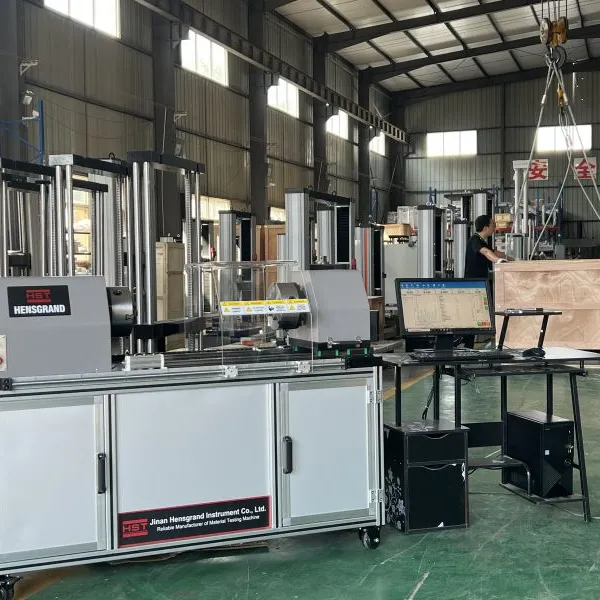

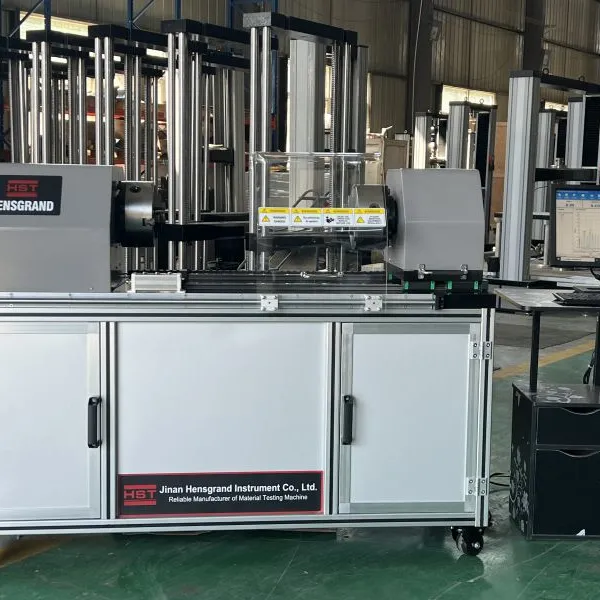

NDW 100NM 200NM 5000NM 20000NM Computerized Controlled Bolt Nut Torsion tester Torsion Testing Machine
1. Application

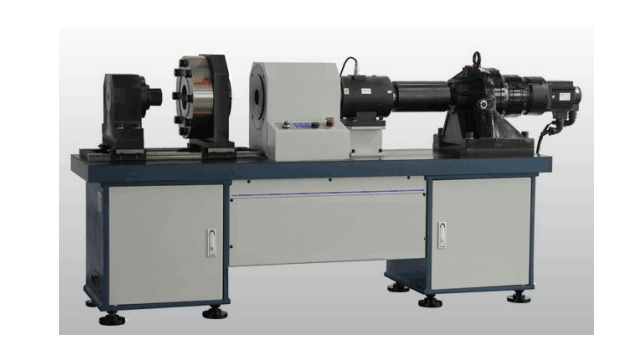

The testing machine mainly detects the axial force and torque (or torque coefficient) of the high strength bolt connection pair (M16-M39) with large hexagonal head.
The equipment is automatically loaded by cycloid needle wheel reducer, imported linear guideway, all Chinese operating interface, microcomputer controlled automatic tightening, relaxation, reset, intelligent prompt in operation process, convenient and fast operation.
When the axial force reaches the standard setting value, the detector will automatically record the test data, automatically calculate the average axial force, average torque coefficient, standard deviation and coefficient of variation of the sample by computer, and can display the output torque coefficient, axial force curve, torque curve and so on. At the same time, the detector will have the functions of parameter setting, calibration, data report printing and output.
2. Technical Parameter:
3.1 High strength bolt torque test bench
3.2 Voltage: 380V; power: 2.0kW
3.3 Test axial force: 40 ≤ 1000kN;
3.4 Test torque: 100 ≤ 5000 Nm;
3.5 measuring bolt specification: torque, axial force and coefficient of large hexagonal bolt M16 / 39,
3.6 torsional shear bolt diameter: M16 ≤ M30, strength grade 8.8 ≤ 12.9
3.7 measured bolt length: 60-480mm
3.8 the error of axial force indication is ±1%;
3.9 Axial force repeatability:1%;
3.10 Axial resolution: 0.1KN
3.11 zero drift of axial force instrument (2h) FS: ±5 × 10-4.
3.12 torque indication error: ±1%;
3.13 torque repeatability: 1%;
3.14 Torque resolution:0.1 NM.
|
|
|
|
