HST-BF1000E M10-M20 Bolt Friction Coefficient Tester Bolt Testing Equipment
US$ 121063.67
1 - 2 Set
US$ 101469.55
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-BW1500F M33-M56 Computer Control High Strength Bolt Testing MachineUS$ 103568.92 - 187543.72MOQ: 1 Set -
HST-WN50 Bone Screw Torque Testing MachineUS$ 123862.83 - 153953.80MOQ: 1 Set
-
HST-BW5000 M12-M36 High Strength Bolt Torsion Testing MachineUS$ 99370.18 - 117564.72MOQ: 1 Set
-
Wire and Cable Torsion Testing Machine/ Metal Wire Torsion TesterUS$ 18124.57 - 18194.54MOQ: 1 Set
-
Computer Control Spring Testing Machine Manual Torsion Metal Materials Wire Torsion Testing Machine PriceUS$ 18124.57 - 18194.54MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V, 380 V
warranty
1 Year
Product name
Bolt Testing Machine
Model
HST-BF1000E
Max test torque
1000Nm
Static torque measurement range
500N m
Torque measurement range
1-100% F S
Relative error of torque indication
± 0.5%
Repeatability of torque indication
≤ 0.5%
Torsion speed
0-20r/min
Clamping test dimensions
M10-M20
Power
AC 380/220 50Hz

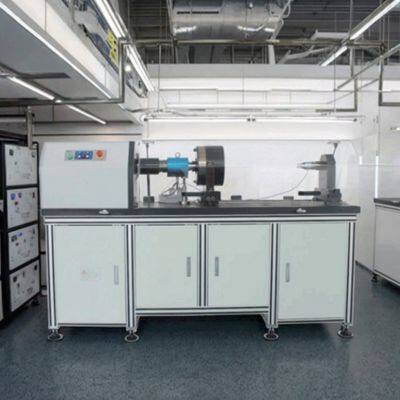

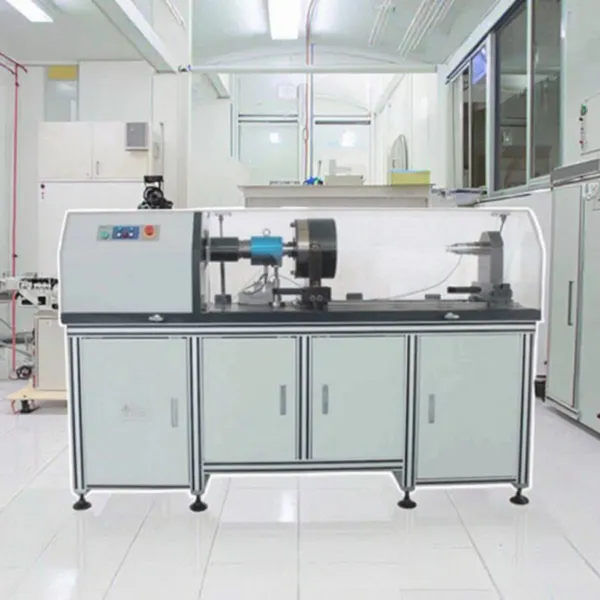

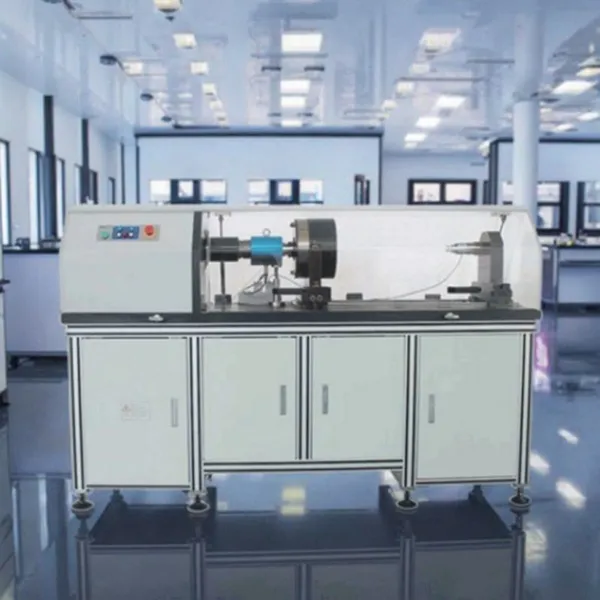

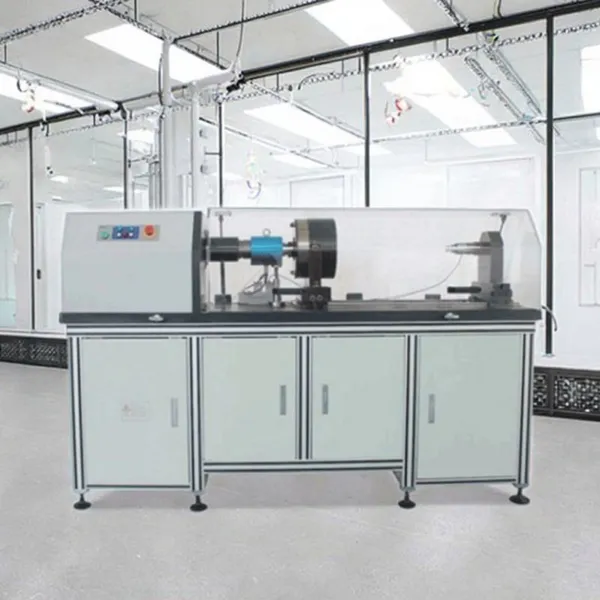

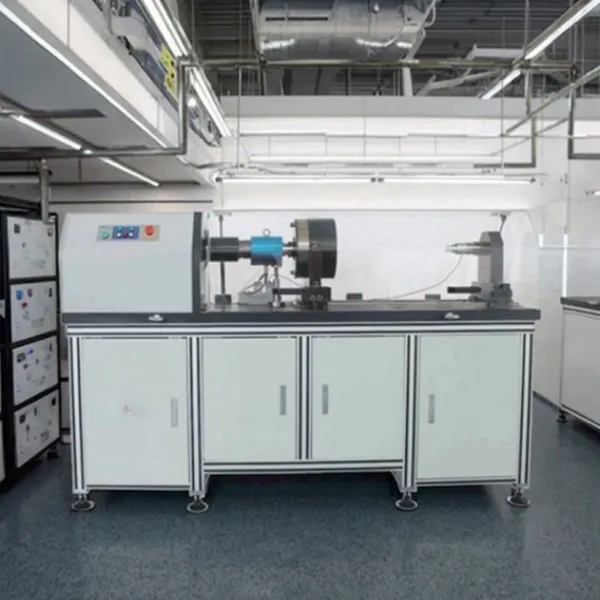

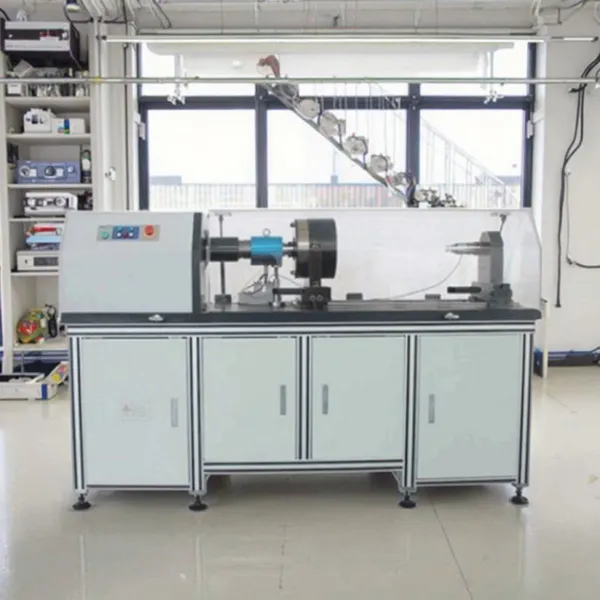

HST-BF1000E Bolt Friction Coefficient Tester
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
The fastener friction coefficient tester is mainly used for the test and analysis of bolts, screws and nuts fasteners. By applying the tightening torque to the bolt-nut connection pair to generate the clamping force, its fastening characteristics can be measured, such as clamping force, fastening torque, thread torque, support surface torque, total friction coefficient, support surface friction coefficient, thread friction coefficient, torque coefficient K, etc. Widely used in aerospace, universities, research institutes, quality inspection, automobile, rail transit, wind power and other fields.
Standard
GB/T1231-2006 Specifications of high strength bolts with large hexagon head,large hexagon nuts,plain washers for steel structures,
GB/T1231-2006 Specifications of high strength bolts with large hexagon head,large hexagon nuts,plain washers for steel structures,
GB/T 16823.3-2010 Fasteners-Torque/clamp force testing, ISO16047-2013 Fasteners-Torque/clamp force testing, GBT16823.2-1997
General rules of tightening for theraded fasteners, GB/T50205 Standard for acceptance of construction quality of steel structures.
Users can also provide relevant technical standards, and realize the control of test methods and related data collection and processing according to the standards provided by users.
General rules of tightening for theraded fasteners, GB/T50205 Standard for acceptance of construction quality of steel structures.
Users can also provide relevant technical standards, and realize the control of test methods and related data collection and processing according to the standards provided by users.
Main parameters:
MODEL |
HST-BF1000E |
Host form |
horizontal |
Maximum dynamic torque measurement range (N · m) |
1000N · m |
Static torque measurement range (N · m) |
500N · m |
Torque measurement range |
1-100% F S |
Relative error of torque indication |
± 0.5% |
Repeatability of torque indication |
≤ 0.5% |
Torsion speed |
0-20r/min |
Torsion speed accuracy |
± 1% |
Maximum axial force |
2000N |
Comprehensive error of axial force |
± 0.5% |
Axial force resolution |
1N |
Measurement range of axial force |
1% F S~100% F S |
Clamping test dimensions |
M10-M20 |
External dimensions (mm) |
1611 * 540 * 590 |
Equipment weight |
Approximately 450kg |
