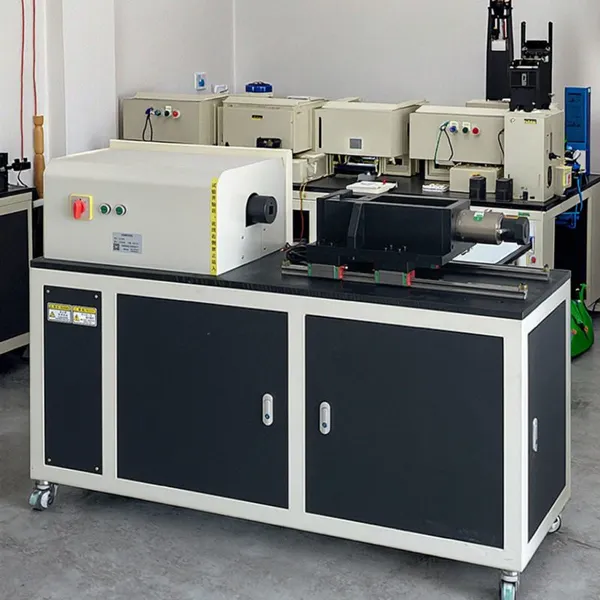

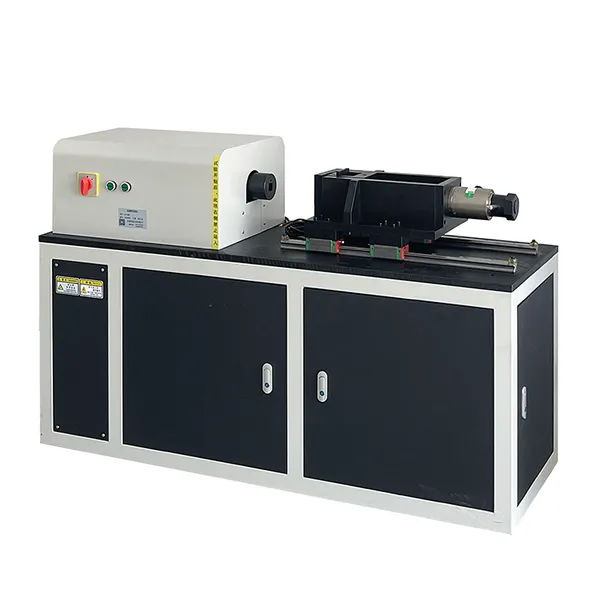

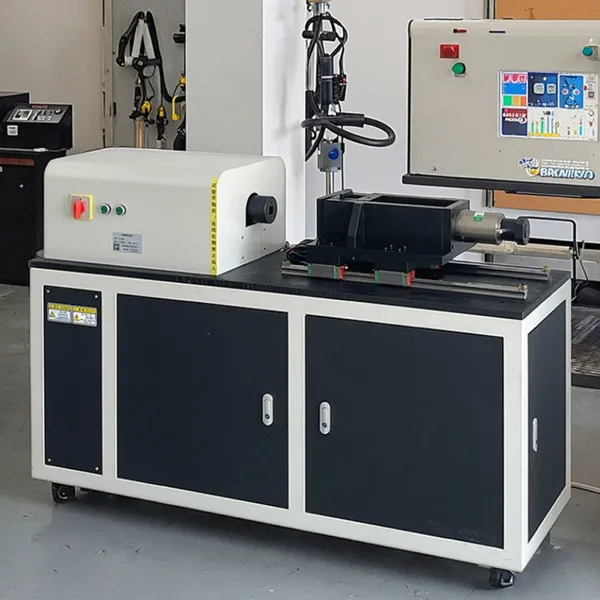

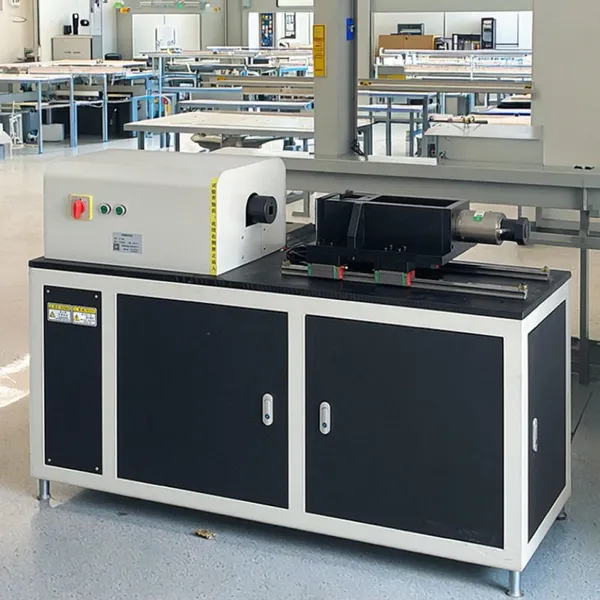

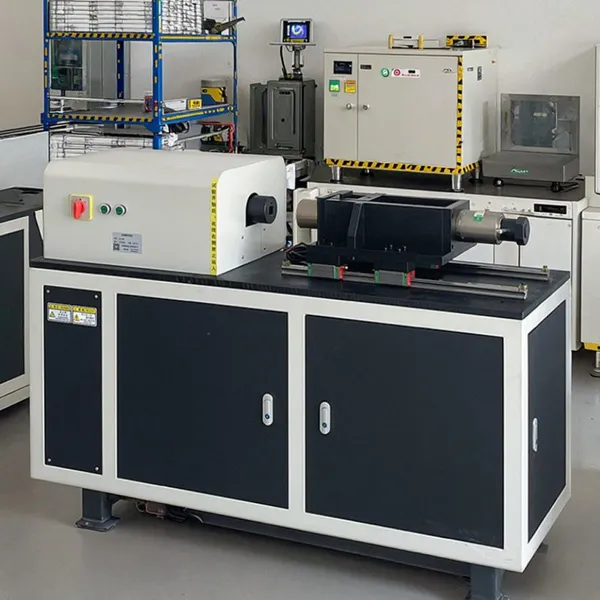

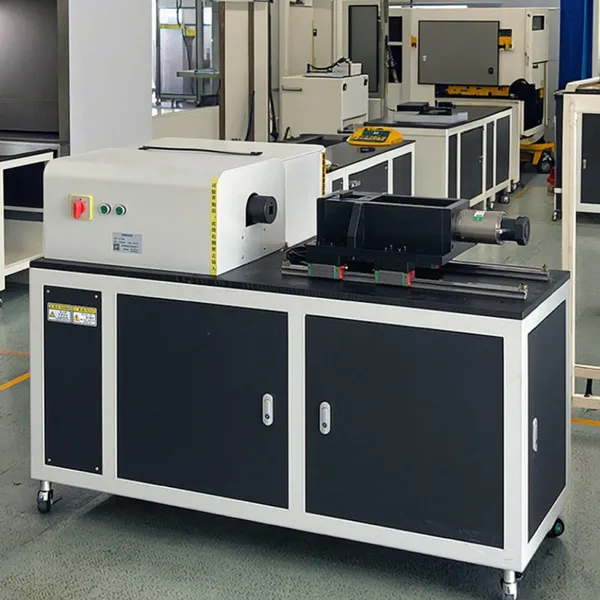

HST-BW5000 M12-M36 High Strength Bolt Torsion Testing Machine
US$ 117564.72
1 - 2 Set
US$ 99370.18
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wire and Cable Torsion Testing Machine/ Metal Wire Torsion TesterUS$ 18124.57 - 18194.54MOQ: 1 Set -
Computer Control Spring Testing Machine Manual Torsion Metal Materials Wire Torsion Testing Machine PriceUS$ 18124.57 - 18194.54MOQ: 1 Set
-
3mm 6mm 10mm Copper Metallic Wire Rod Torsion Testing Machine Cable Torsion Tester Torsion Test EquipmentUS$ 18124.57 - 18194.54MOQ: 1 Set
-
HST KASON HENSGRAND EZ-3 EZ-6 EZ-10 Wire Rod Torsion Testing MachineUS$ 18124.57 - 18194.54MOQ: 1 Set
-
1000n.m China Testing Machine Computer Control Torsion Testing MachineUS$ 17494.75MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Bolt Torsion Testing Machine
Model
HST-BW5000
Max test torque
5000Nm
Effective measurement range of torque
50 ~ 5000Nm
Measuring range of axial force
30-800kN
Rotation speed
0.1-1r/min
Tester tolerance repeatability error
1%
Length range
60-350mm
Test Angle accuracy
≤±0.1°
Power
AC 380 50Hz
HST-BW5000 M12-M36 High Strength Bolt Torsion Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
This equipment is designed according to the user's test requirements, mainly aimed at the detection of large high-strength bolt connection pair such as wind energy equipment, used for static torsion test of high-strength bolts, meet the requirements of GB1231-2006 "high strength large hexagon head bolts, large hexagon nuts, washers for steel structure technical conditions", The test system is mainly composed of the main engine, the test mechanism, the loading mechanism, the system, the control data collection system, the computer and its test software, and other necessary loading supports and accessories. It is the ideal high performance test equipment for factories and mining enterprises, quality inspection units, scientific research units and colleges and universities. It is suitable for torsional and tensile mechanical performance test of high strength bolts and large hexagon head bolts. It can detect the torque, Angle and axial force of pre-tightening bolts and nuts. It can also detect the torque coefficient of large specification and high strength bolt connection pair, and automatically display and store and output data.
Calculate the standard deviation and coefficient of variation. The detector will automatically record the test data, and
automatically calculate the average axial force, average torque, average torque coefficient, standard deviation and coefficient of variation of the sample through the microcomputer. Torque coefficient, torque-axial force, Angle of the relationship between the technical indicators, and torque - axial force - torque coefficient curve.
Users can also provide relevant technical standards, such as ISO, ASTM, DIN, JIS, in accordance with the standards provided by users to achieve test mode control and relevant data collection and processing.
This machine is designed and manufactured according to GB/T32075.8-2017 test requirements.
Calculate the standard deviation and coefficient of variation. The detector will automatically record the test data, and
automatically calculate the average axial force, average torque, average torque coefficient, standard deviation and coefficient of variation of the sample through the microcomputer. Torque coefficient, torque-axial force, Angle of the relationship between the technical indicators, and torque - axial force - torque coefficient curve.
Users can also provide relevant technical standards, such as ISO, ASTM, DIN, JIS, in accordance with the standards provided by users to achieve test mode control and relevant data collection and processing.
This machine is designed and manufactured according to GB/T32075.8-2017 test requirements.
Test standard:
Users can also provide relevant technical standards, such as ISO, ASTM, DIN, JIS, in accordance with the standards provided by users to achieve test mode control and relevant data collection and processing.
This machine is designed and manufactured according to GB/T32075.8-2017 test requirements.
Users can also provide relevant technical standards, such as ISO, ASTM, DIN, JIS, in accordance with the standards provided by users to achieve test mode control and relevant data collection and processing.
This machine is designed and manufactured according to GB/T32075.8-2017 test requirements.
Main parameters:
MODEL |
HST-BW5000 |
|
Maximum torque |
5000Nm |
|
Effective measurement range of torque |
50 ~ 5000Nm |
|
Measuring range of axial force |
30-800kN |
|
Rotation speed |
0.1-1r/min |
|
Tester tolerance error and repeatability error |
1% |
|
Maximum axial bolt axial force |
800kN |
|
Effective measurement range of bolt shaft force |
30-800 kN |
|
Axial force tolerance and repeatable row error of testing machine |
1% |
|
est Angle accuracy |
≤±0.1° |
|
bolt specification |
large Angle of six bolt M12 / M16 / M20 / M22 m2-m24 / M27 (/ M36 Length range: 60-350mm |
|
Power Supply voltage |
AC 380 50Hz |
|
Control mode |
microcomputer control |
|
NOTE: 1.The system has overload, specimen fracture and other protection functions.
2. The computer screen displays the real-time values and correlation curves of various test parameters. 3.The printer prints test reports and curves. |
||
