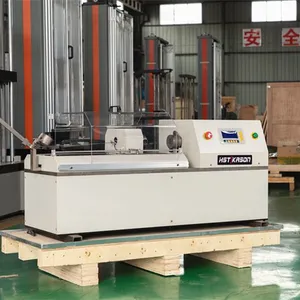

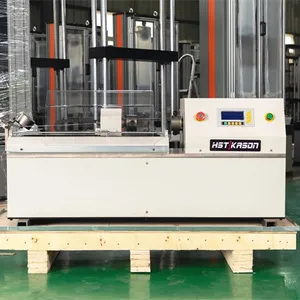

Wire and Cable Torsion Testing Machine/ Metal Wire Torsion Tester

US$ 18194.54 1 - 2 Set

US$ 18124.57 ≥3 Set

Key Specifications

Type:

Testing Machine

Accuracy:

brand name:

HST

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Accuracy /

brand name HST

place of origin Shandong, China

customized support OEM, ODM, OBM

power /

Protection Class /

Voltage 220 V

warranty 1year

Work Method Auto-loading

Max. Clamp metal wire diameter 1-6

Parallelism of the full moving guide ≤0.2

Torsion speed error (%) <±10%

Min. number of circle values 0.1

Two chuck alignment(mm) <0.4

Jaw hardness(HRC) 55-65

Weights error (%) ±0.5

Work Noise (dB) ≤70

Certificate CE

Application:

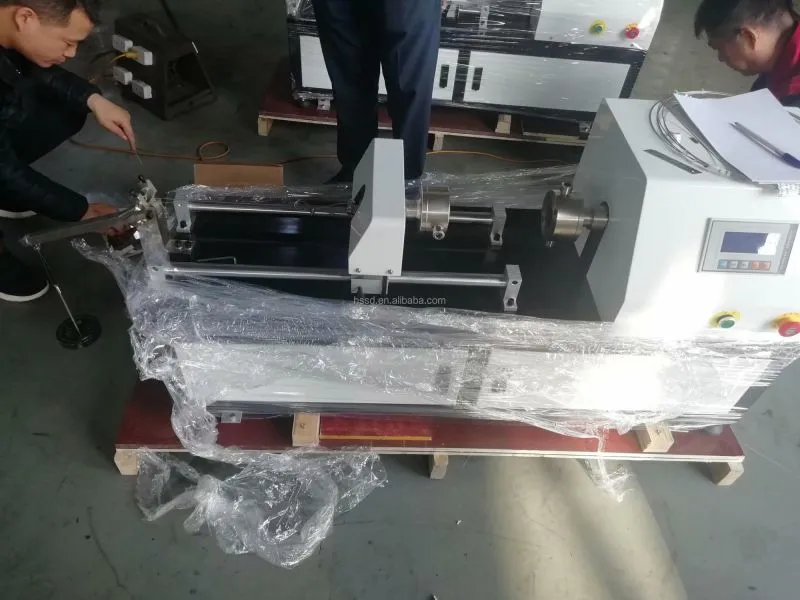

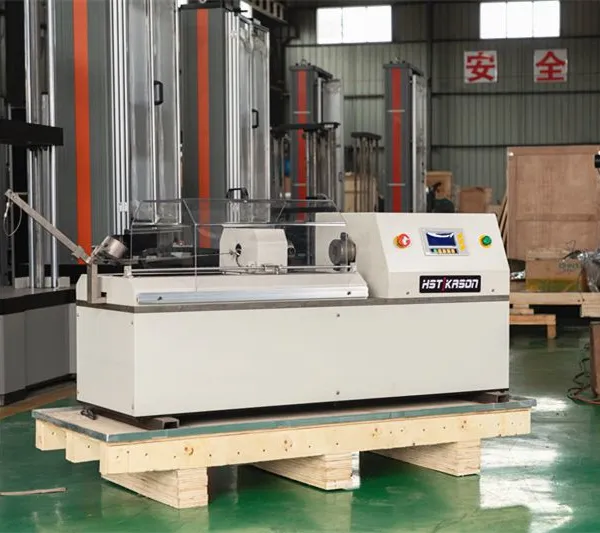

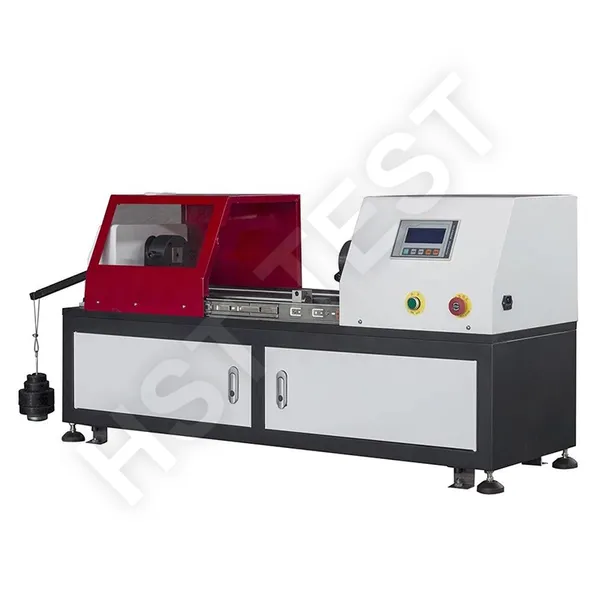

EZ Series Metal Wire Torsion Tester is mainly used to test the plasticity of metal wires and ropes under

torsion condition. Surface flaws of steel wires may be shown during the testing process. It is most suitable for

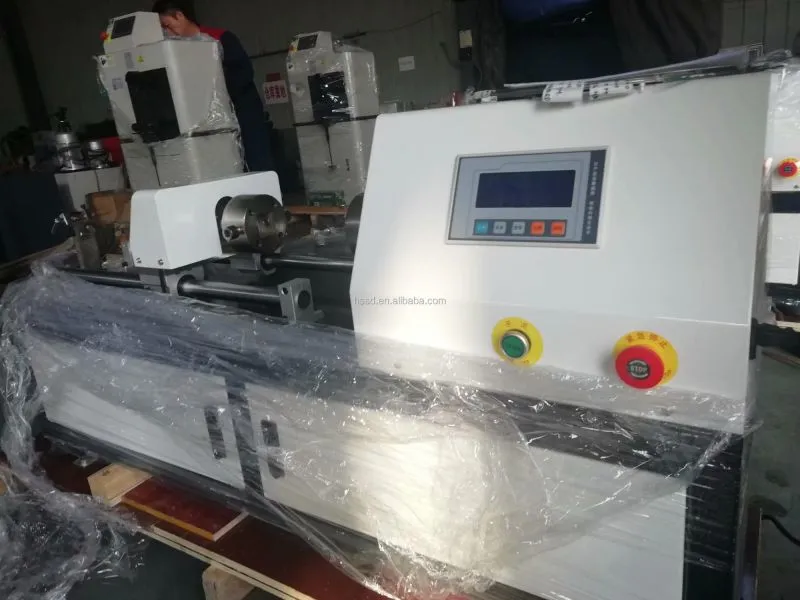

quality inspection of departments related to steel wire. The revolution is displayed on a 4-digit LED. Max.

displayed revolution is 999.9. The revolution value is automatically held at the break of specimens. It

conforms to standards of ASTM A938, ISO7800.

Specifications:

Model	EZ-3	EZ-3	EZ-6	EZ-10
Work Method	Auto-loading
Max. Clamp metal wire diameter (mm)	0.1-1.0	1-3	1-6	3-10
Parallelism of the full moving guide	≤0.2
Distance between the grips (mm)	200	320	500	500
Rotation speed adjusting range (r/min)	60/90/120/180/300	60/90/120/180/300	60/90/120/180	60/90/120/180
Torsion speed error (%)	<±10%
Min. number of circle values	0.1
Two chuck alignment(mm)	<0.4
Jaw hardness(HRC)	50-65
Weights error (%)	±0.5
Work Noise (dB)	≤70
Min. revolutions reading values(r)	1
Power Supply	AC 220V±10%,50Hz
