Home > Industrial Equipment & Components > Valve > Control Valve > CBEHLJN Balance Valve Domestic Standard Load-Holding Valve

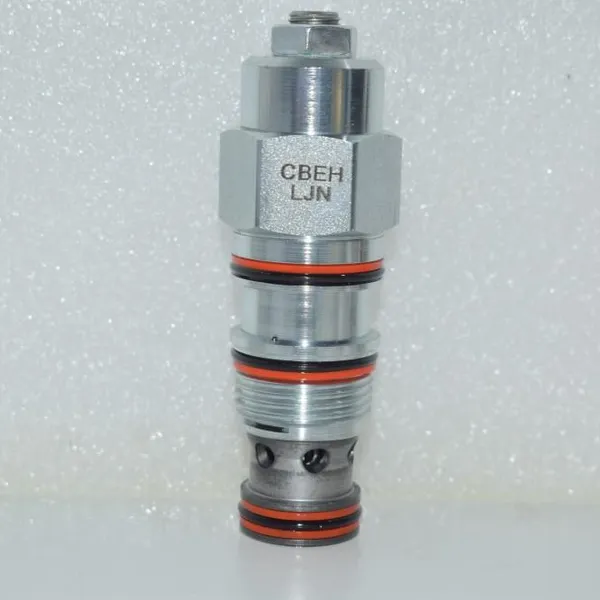

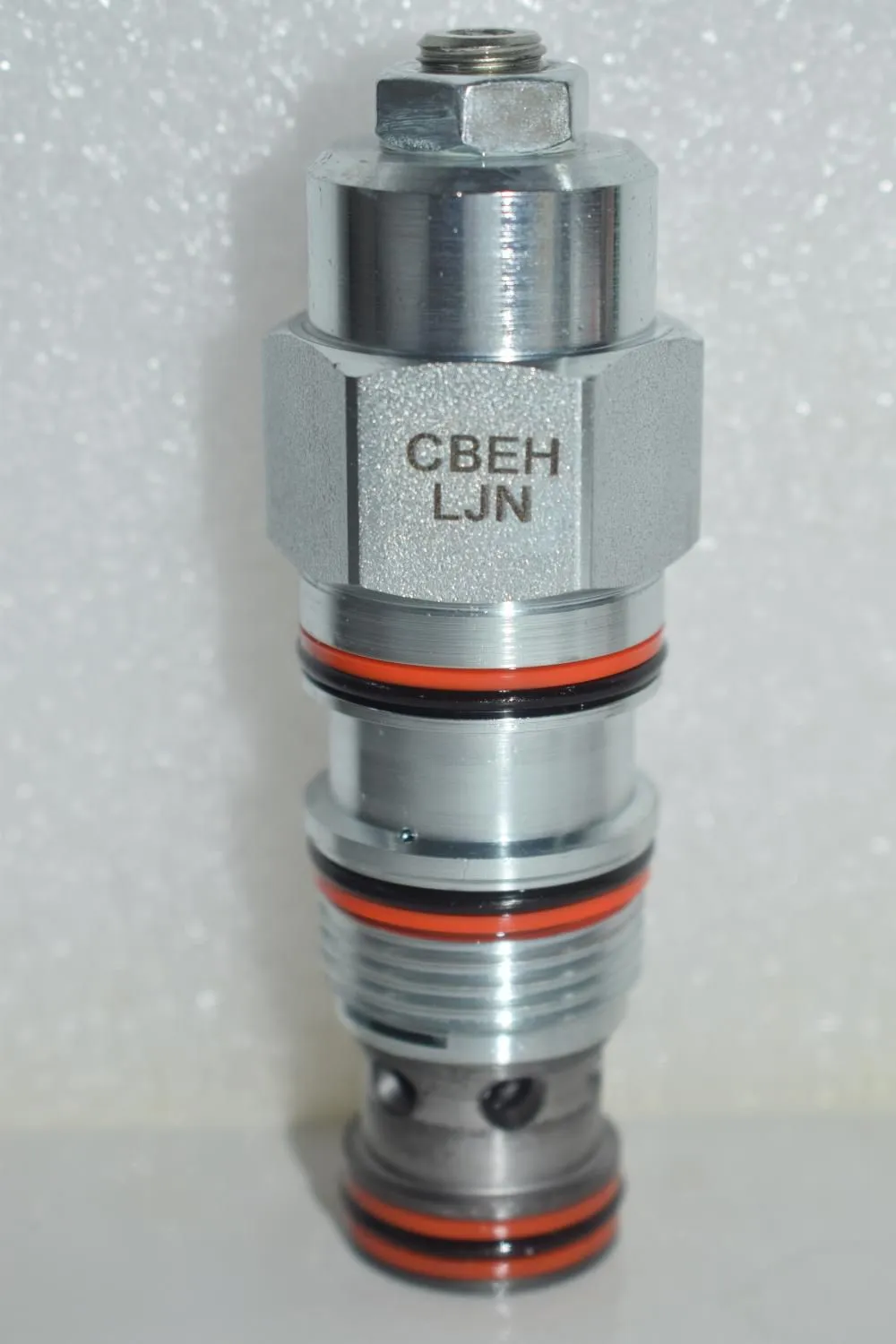

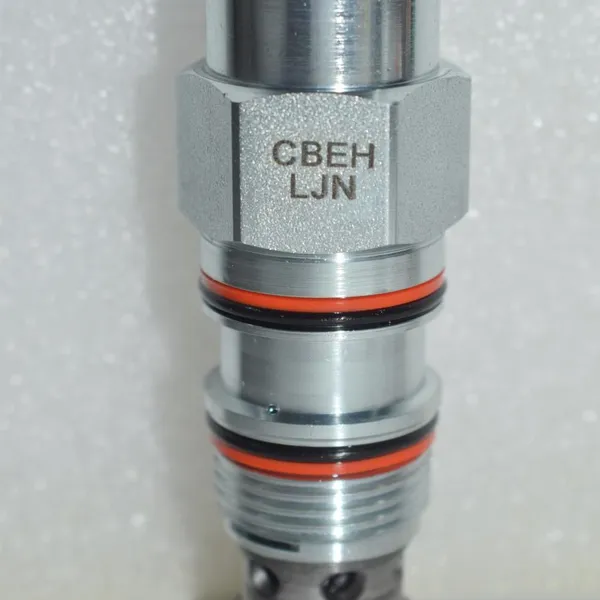

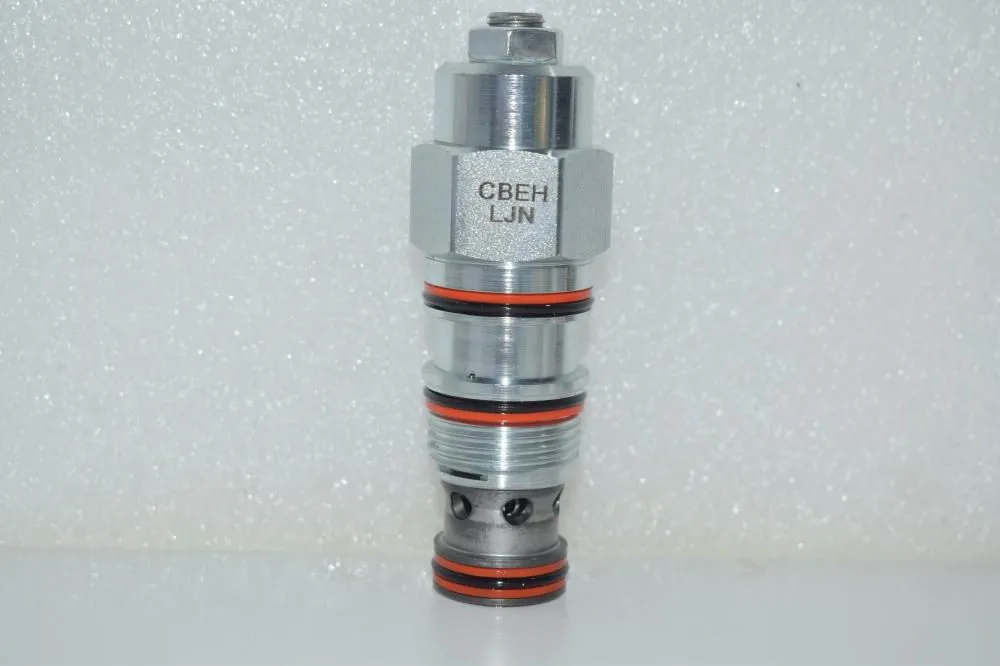

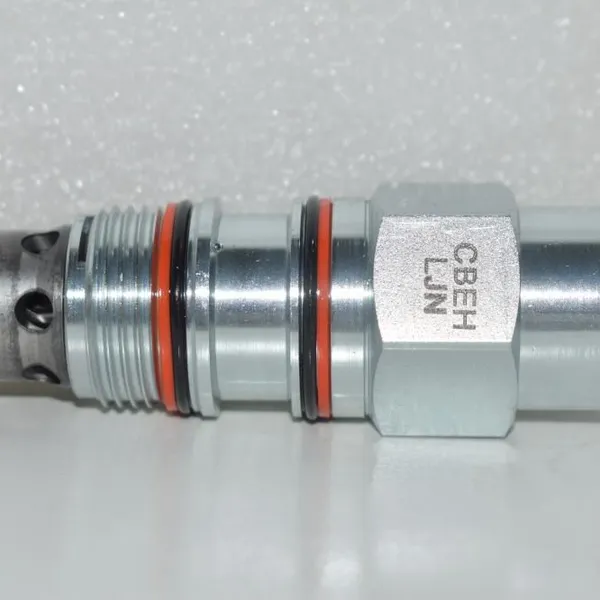

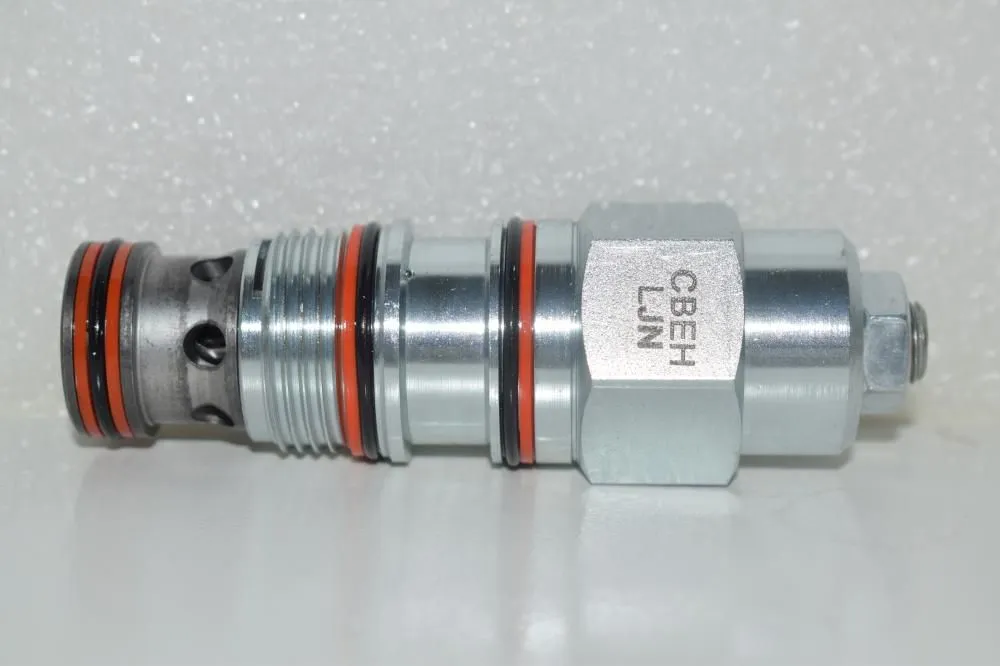

CBEHLJN Balance Valve Domestic Standard Load-Holding Valve
US$ 33
1 - 9 Piece
US$ 31
10 - 49 Piece
US$ 28.5
≥50 Piece
Key Specifications
Get Latest Price
Material:
Alloy
Type:
Self-Operated
Certification:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
90 days
Related Products
-
CAEALHN 280bar External Leakage Port Balance Valve Pilot-Assisted OpeningUS$ 132 - 135MOQ: 1 Piece -
CWEALIN Hydraulic Industrial Parts Threaded Cartridge Balance ValveUS$ 116 - 126MOQ: 1 Piece
-
CAEKLIN Balance Valve Pressure Reducing Ratio 1:1, With External VentingUS$ 135 - 137MOQ: 1 Piece
-
CBBLLJN Semi-Throttle Balance Valve Supply Inlet and Outlet Pressure Ratio 2.3:1US$ 57 - 61.92MOQ: 1 Piece
-
CWCKLIN OEM Balance Valve Pilot Ratio 1: 1 With External DrainUS$ 85 - 92MOQ: 1 Piece
Material
Alloy
Type
Self-Operated
Certification
Other
Standard
Standard
Connection Mode
External Thread
Power
Hydraulic
Temperature
Ordinary Temperature
Media
Oil
Socket
T-2A
Current-carrying capacity
120 L/min
Maximum operating pressure
350 bar
Feture
Pilot Operated
Model weight
0.29 kg
Valve mounting torque
61-68 Nm
Sealing materials
Optional
Coating
Optional
Surface coating
Optional
Sealing material
Nitrile
Origin
China
Contact me to get more information.

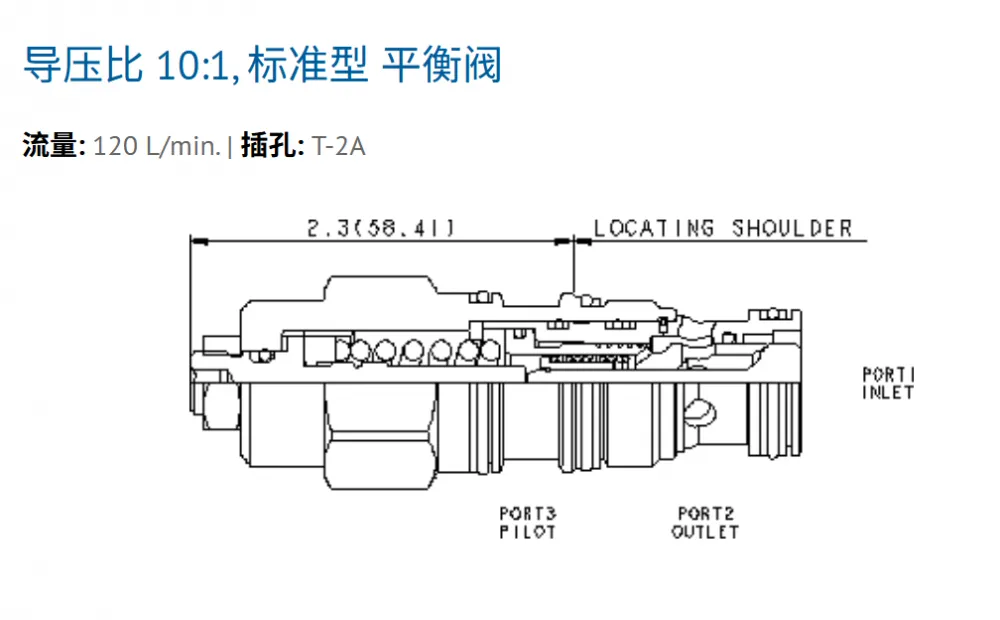

The pilot-assisted opening balance valve is used to control overrunning loads. It allows oil to flow freely in one direction from the directional valve (port 2) to the load port (port 1), while the direct-acting, pilot-assisted relief valve function can control the flow of liquid from port 1 to port 2. The pilot assistance at port 3 reduces the effective set value of the relief function according to the pilot ratio. This valve is also called a motion control valve or a crossover center valve.
