Home > Industrial Equipment & Components > Valve > Control Valve > RDDALAN Direct-Acting Relief Valve Hydraulic Cartridge Valve

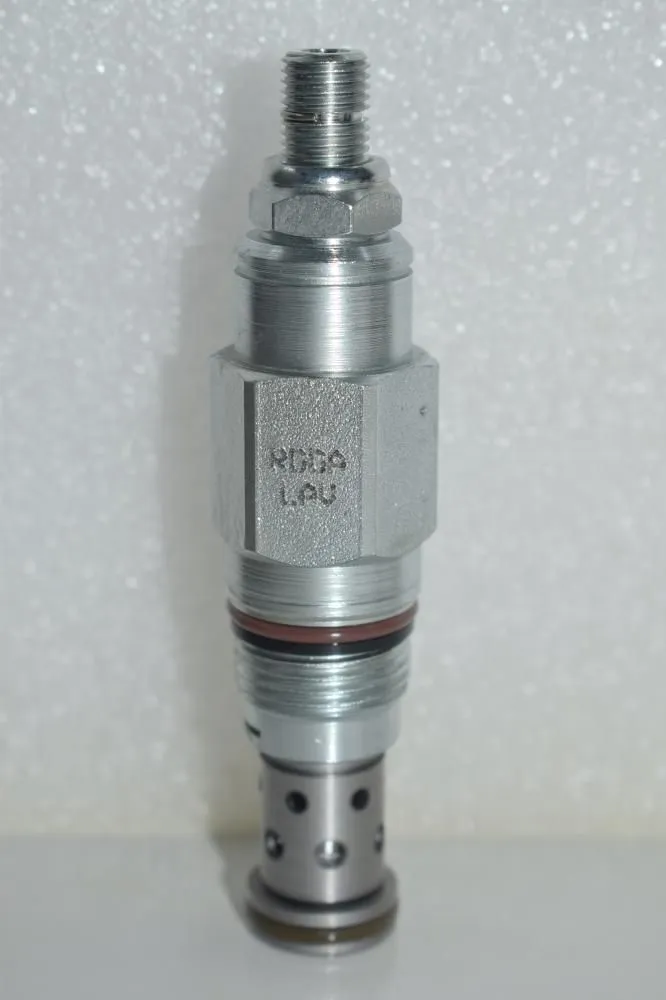

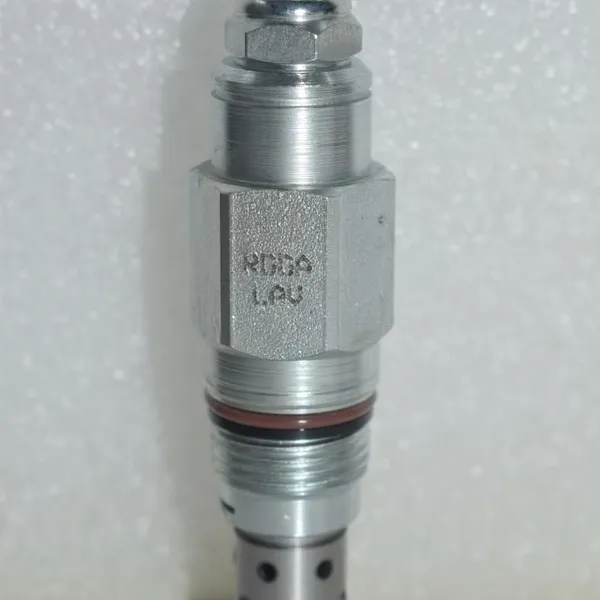

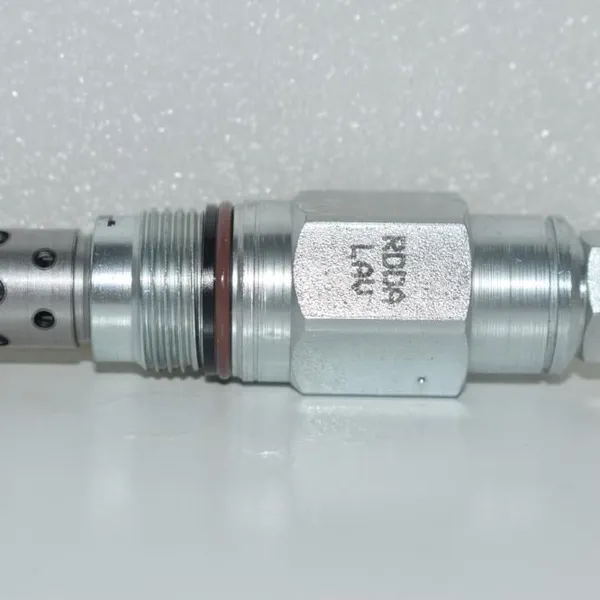

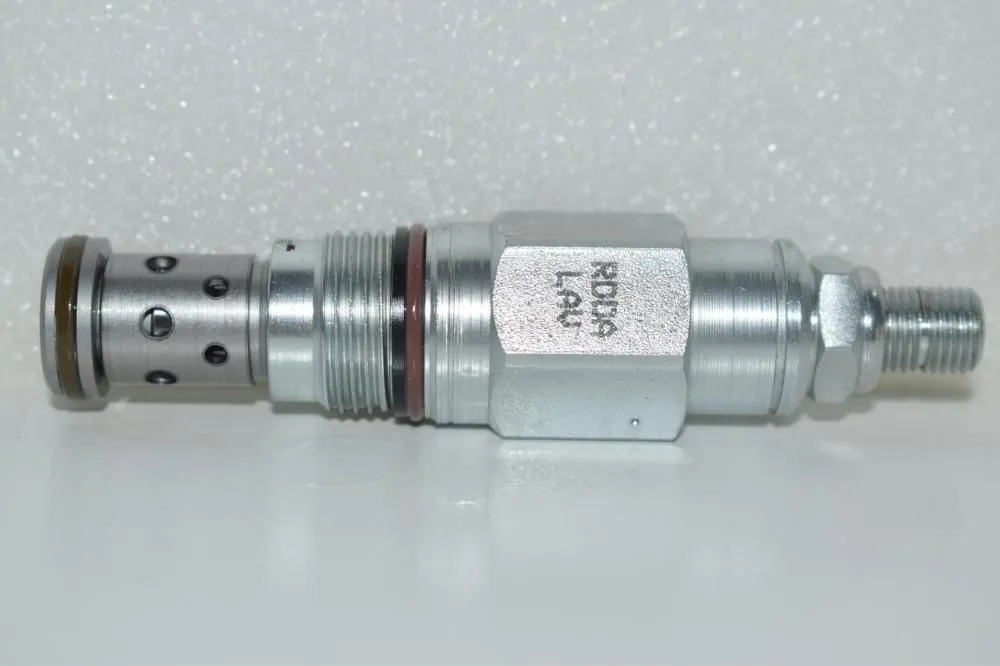

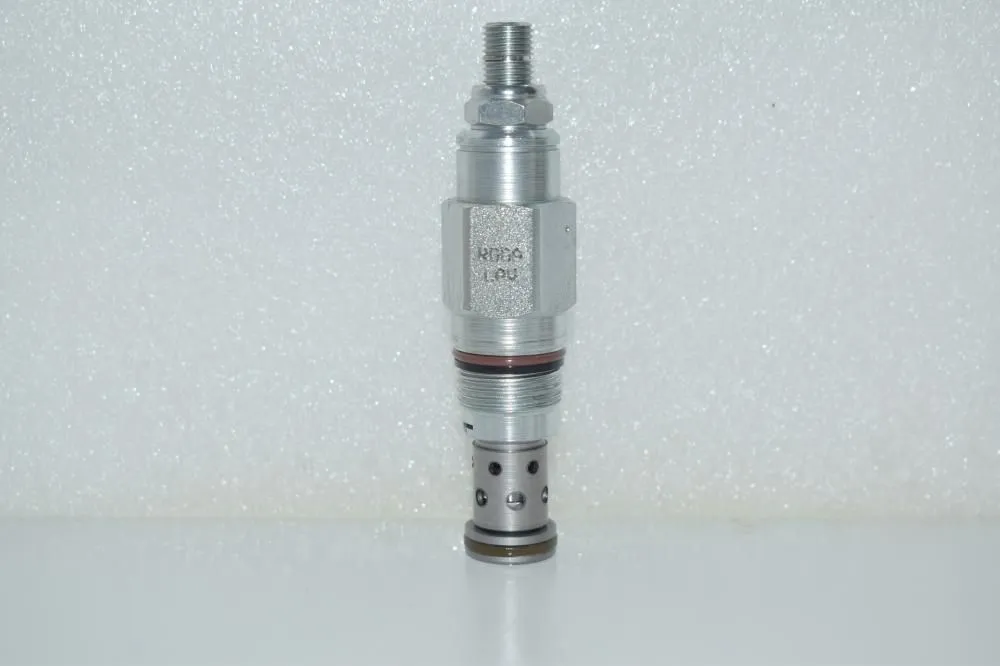

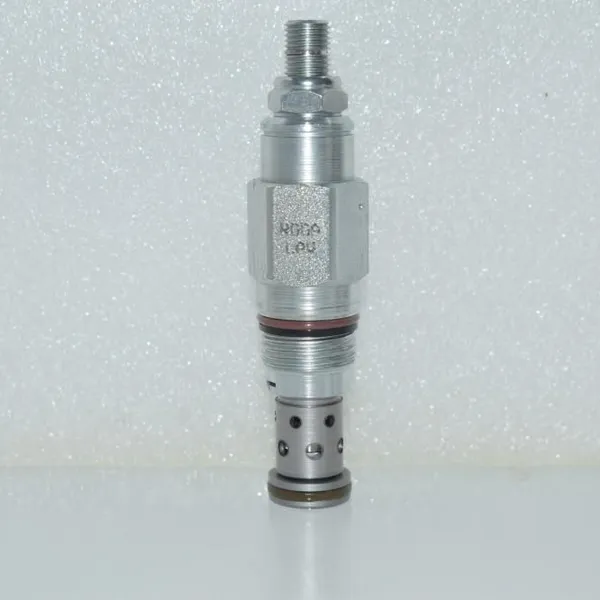

RDDALAN Direct-Acting Relief Valve Hydraulic Cartridge Valve
US$ 40
1 - 9 Piece
US$ 38
≥10 Piece
Key Specifications
Get Latest Price
Material:
Alloy
Type:
Self-Operated
Certification:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
90 days
Related Products
-
PBDBLBN Relief Valve Pbdb Made in China, Pilot-Operated PressureUS$ 25 - 28MOQ: 1 Piece -
RBACLWN Flow Cartridge Valve, Direct-Acting Pressure Relief ValveUS$ 49 - 52MOQ: 1 Piece
-
RVCDLWN External Port Control Valve , Balance Spool Structure Pressure Relief ValveUS$ 98.6 - 102MOQ: 1 Piece
-
RPECFAN Pilot-Operated Balance Spool Valve With 95 L/min Flow Capacity Relief ValveUS$ 43 - 51MOQ: 1 Piece
-
RPGCKCN Balance Spool Valve Normally Closed Pressure Regulating Relief ValveUS$ 87.58 - 95.13MOQ: 1 Piece
Material
Alloy
Type
Self-Operated
Certification
Other
Standard
Standard
Connection Mode
External Thread
Power
Hydraulic
Temperature
Ordinary Temperature
Media
Oil
Socket
T-10A
Flow Capacity
95 L/min
Operating Pressure
350 bar
Factory Default Setting
15 L/min
Installation Torque
41-47 Nm
Model Weight
0.17 kg
Valve Type
Relief Valve
Sealing Material
Nitrile
Sealing Material Options
Optional
Minimum Opening Pressure
35 bar
Origin
China
Contact me to get more information.
Direct-acting relief valves are normally closed pressure-limiting valves, commonly used to protect hydraulic components from transient pressure shocks. When the pressure at the inlet (port 1) reaches the valve's set value, the valve begins to relieve to the tank (port 2), throttling to limit the pressure rise. These valves provide smooth regulation, low noise, virtually zero leakage, strong resistance to oil contamination, clogging prevention, and fast response.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2024
Factory Size
3,000-5,000 square meters
Annual Export Value
Below US$1 Million
