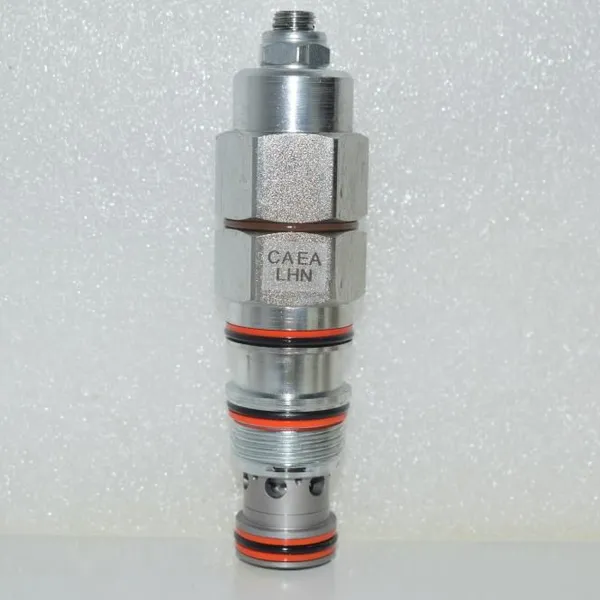

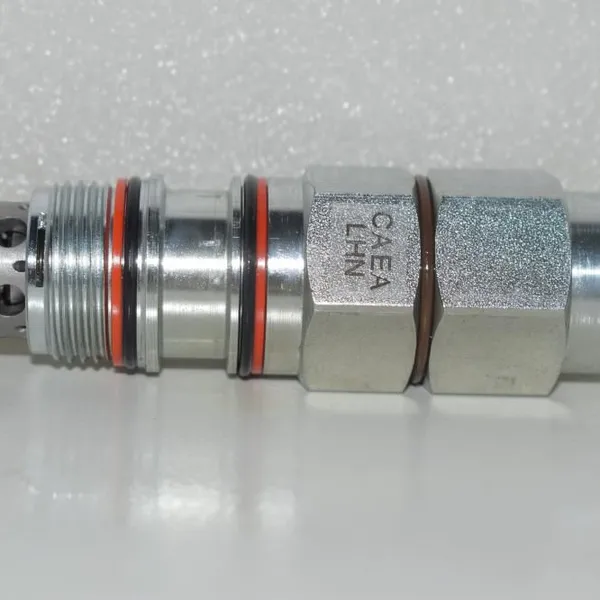

Help CenterCAEALHN 280bar External Leakage Port Balance Valve Pilot-Assisted Opening
Related Products
-
CWEALIN Hydraulic Industrial Parts Threaded Cartridge Balance ValveUS$ 116 - 126MOQ: 1 Piece -
CAEKLIN Balance Valve Pressure Reducing Ratio 1:1, With External VentingUS$ 135 - 137MOQ: 1 Piece
-
CBBLLJN Semi-Throttle Balance Valve Supply Inlet and Outlet Pressure Ratio 2.3:1US$ 57 - 61.92MOQ: 1 Piece
-
CWCKLIN OEM Balance Valve Pilot Ratio 1: 1 With External DrainUS$ 85 - 92MOQ: 1 Piece
-
CBBGLKN Pilot-Assisted Throttle Type Durable Balance ValveUS$ 50 - 56MOQ: 1 Piece
The externally vented pilot-assisted balancing valve is used to control overrunning loads. It allows oil to flow freely in one direction from the directional valve (port 2) to the load port (port 1), while the direct-acting, pilot-assisted relief valve function can control the flow from port 1 to port 2. The pilot assistance at port 3 reduces the effective setting of the relief function according to the pilot ratio coefficient. Since the spring chamber is connected to the atmosphere, the back pressure at port 2 does not affect the valve setting. This valve is also known as a motion control valve or a cross-over center valve.
If you need to place an order, please consult our customer service first.
Note: Be sure to contact the seller before placing an order, as the seller may miss platform notifications and not ship the order!!!
Price Information: Due to price fluctuations, the prices listed on the products may not be accurate and could be cheaper or more expensive. Please refer to the quote from customer service.
Product Information: As there are many types and specifications of products, we cannot upload them all. If you cannot find the corresponding product, please feel free to contact our customer service.
Shipping Information: Since the weight of each item varies, it is difficult to set a fixed shipping template. The shipping cost for some products may differ, so please contact customer service promptly to adjust the actual shipping cost. Thank you for your understanding! (We follow the principle of refunding excess shipping and charging for any shortfall)
