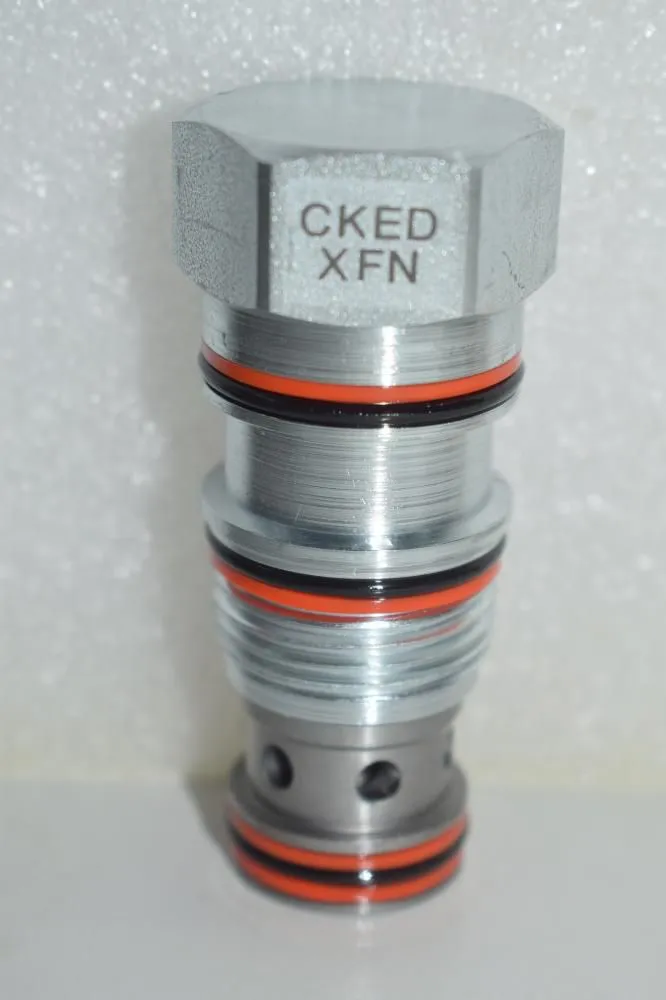

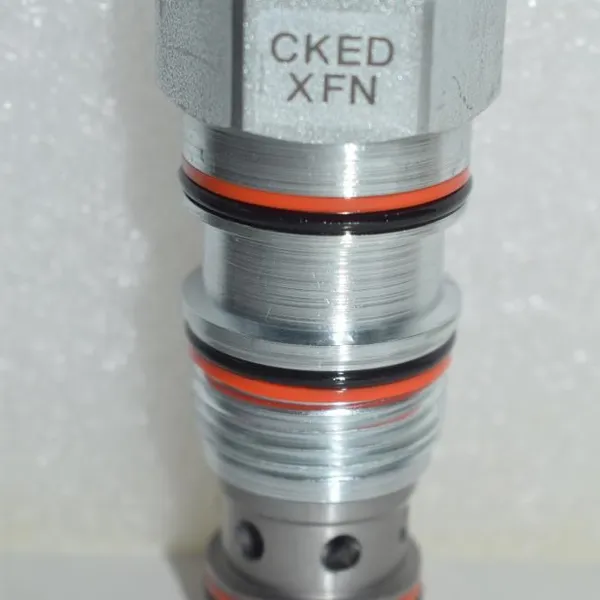

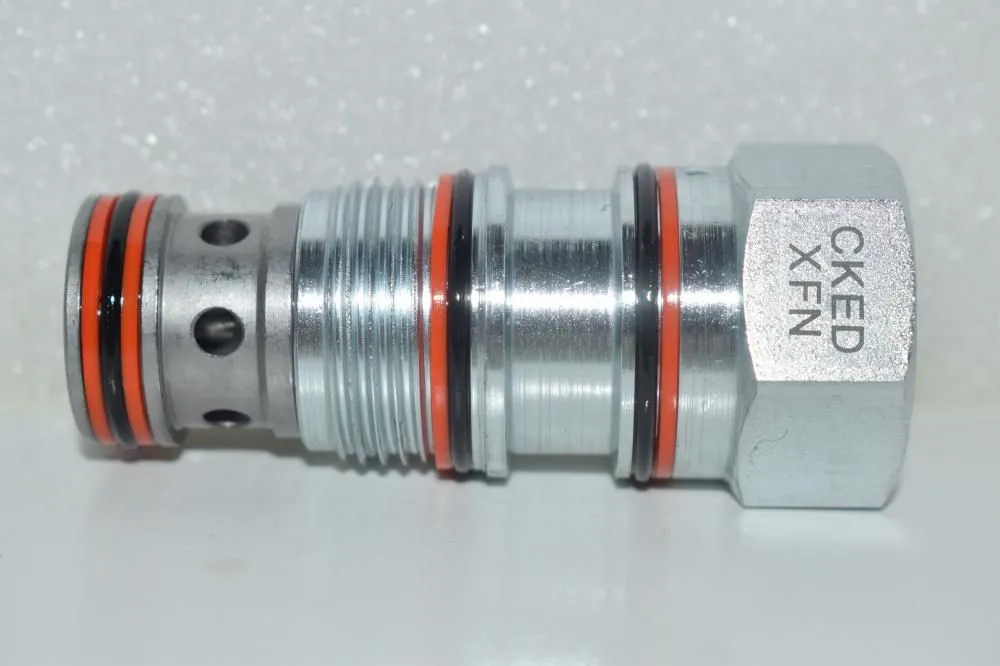

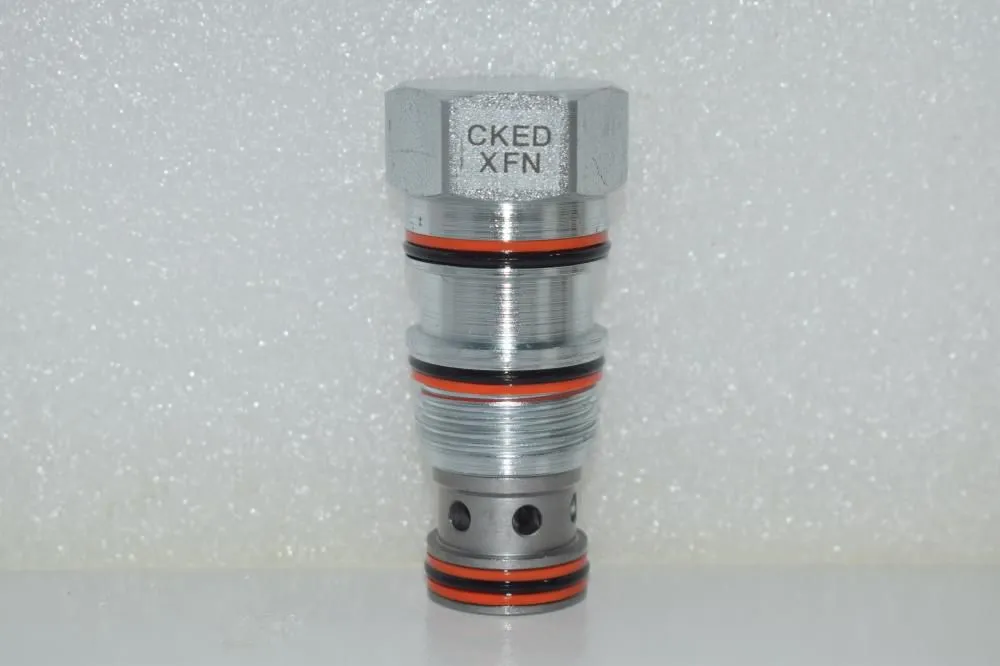

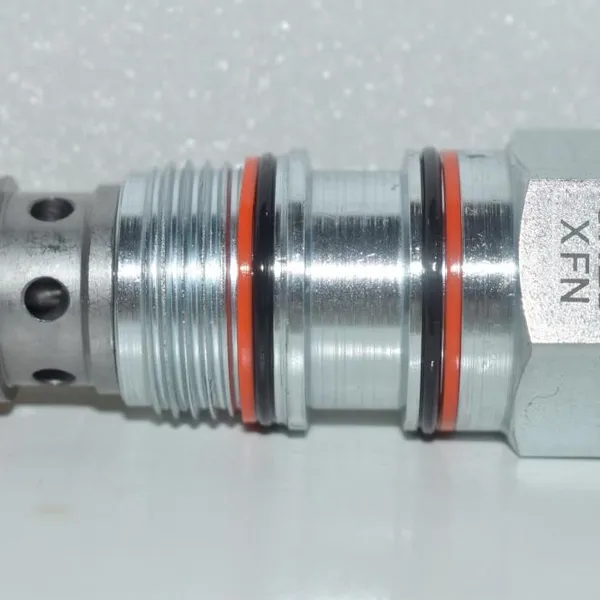

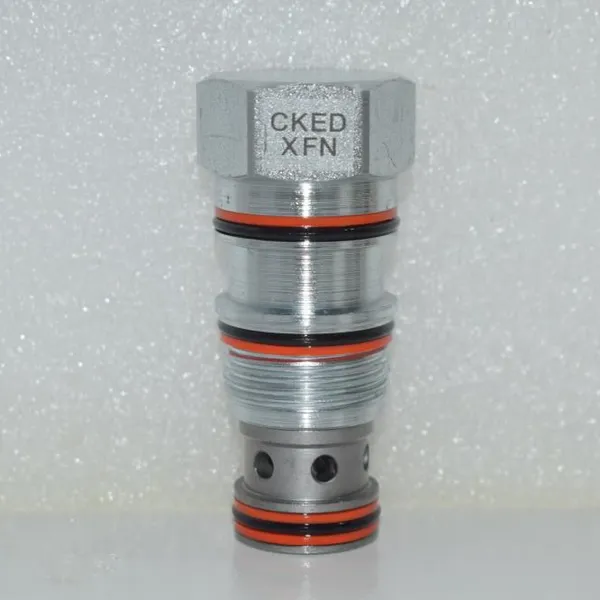

CKEDXFN Directional Valve Cked Hydraulic Check Valve With Sealed Pilot Control
US$ 50
1 - 9 Piece
US$ 48
≥10 Piece
Key Specifications
Get Latest Price
Socket:
T-2A
Flow Capacity:
120 L/min
Operating Pressure:
350 bar
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
15 days
Related Products
-
DTAFMHN Spool Valve 2-Way Direct-Acting Electromagnetic Cone ValveUS$ 81.4MOQ: 1 Piece -
DRBCLBN Directional Valve 3-Way Direct-Operated Alloy Steel ValveUS$ 102 - 106MOQ: 1 Piece
-
DSCHXHN Directional Valve, 3-Position 4-Way Shuttle ValveUS$ 117 - 127MOQ: 1 Piece
-
CXAAXZV Free Flow Directional Valve Cxaa, Pilot Flow Check ValveUS$ 33 - 34MOQ: 1 Piece
-
CXEDXAN Directional Valve Cxed Free Flow Check Valve, Blocks Reverse FlowUS$ 34 - 36MOQ: 1 Piece
Socket
T-2A
Flow Capacity
120 L/min
Operating Pressure
350 bar
Pilot Ratio
3：1
Installation Torque
61-68 Nm
Model Weight
0.24 kg
Valve Type
Directional Valve
Sealing Material
Nitrile
Sealing Material Options
Optional
Opening Pressure
7 bar
Origin
China
Contact me to get more information.

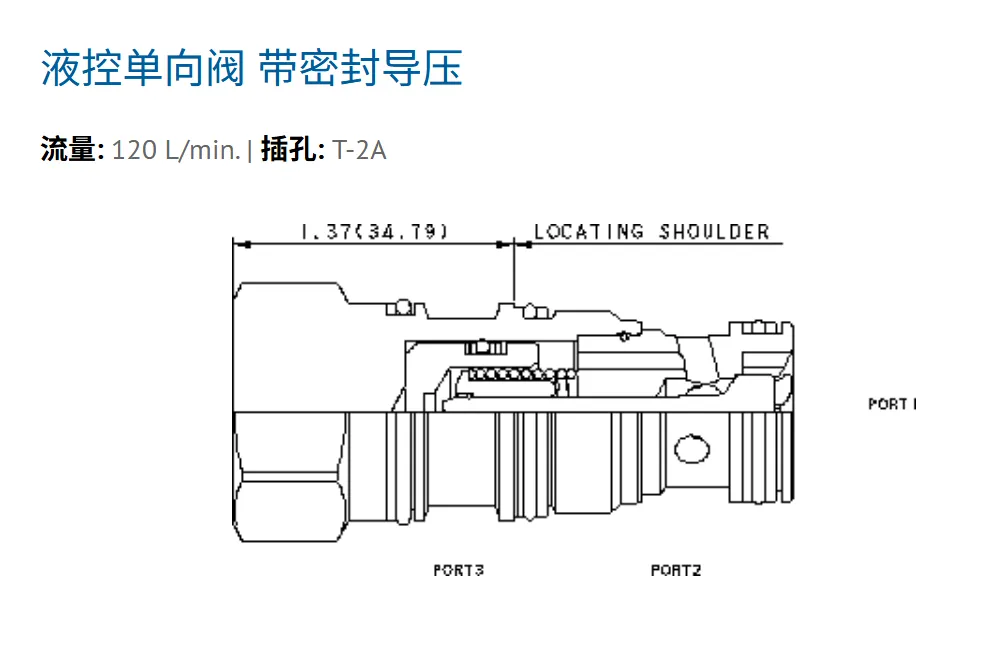

This valve is a pilot-operated hydraulic check valve. It features a sealed pressure guide, a steel valve seat, and is non-vented. It allows fluid to flow freely from the valve port (port 2) to the load port (port 1), while blocking reverse flow. The pressure at the pilot port (port 3) opens the valve to allow flow from port 1 to port 2. The pilot pressure required at port 3 to open the valve is directly proportional to the load pressure at port 1. The pressure at port 2 directly opposes the pilot pressure.
