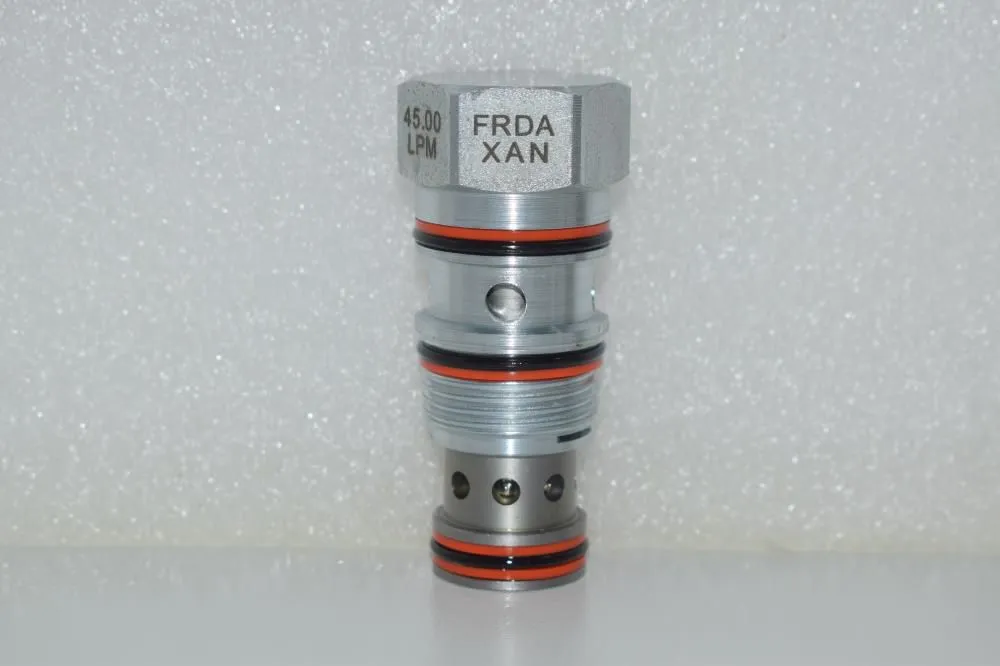

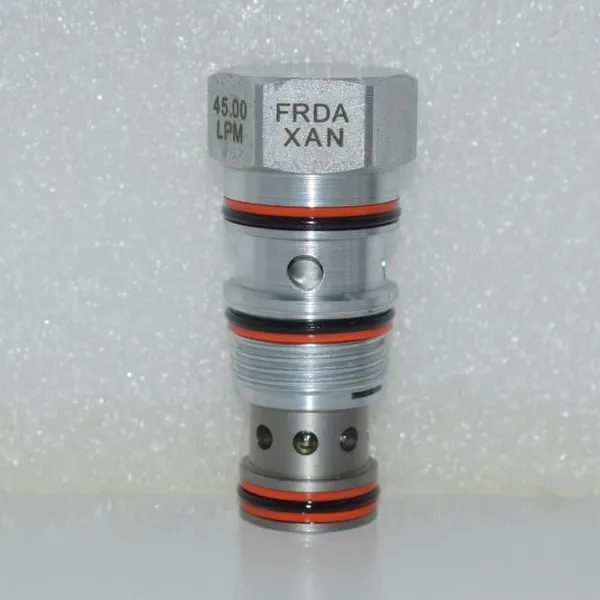

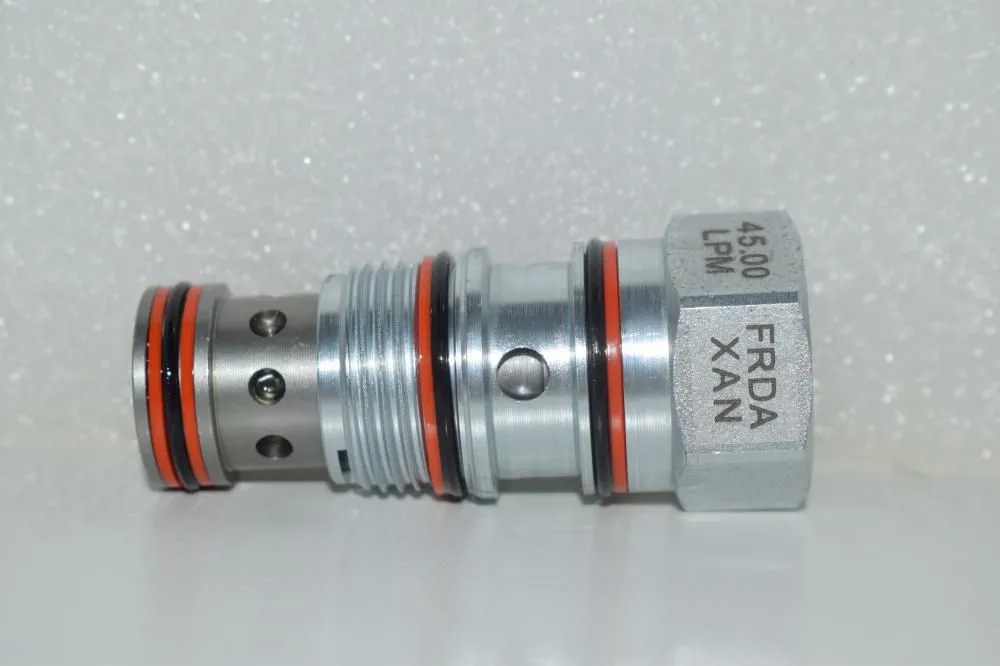

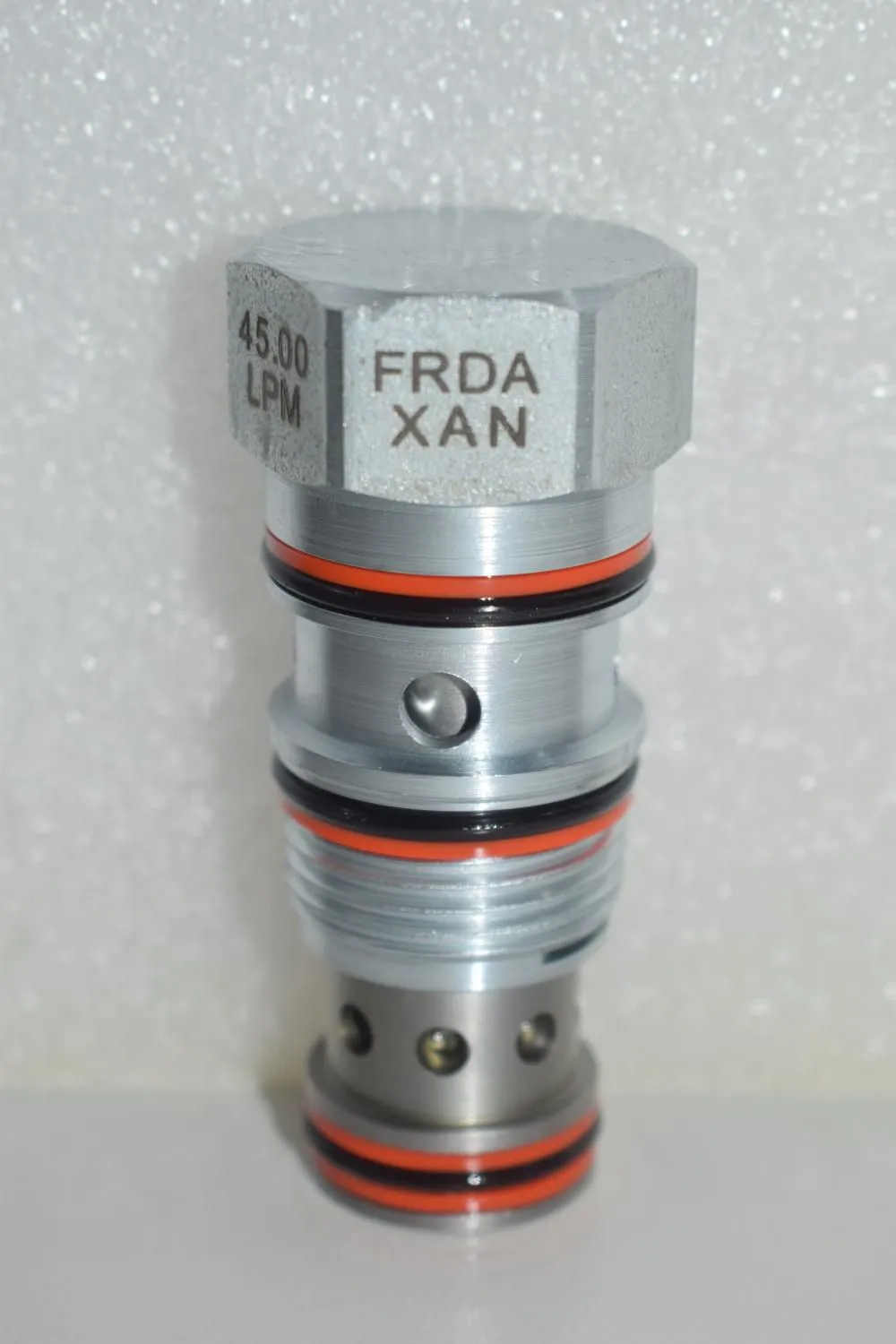

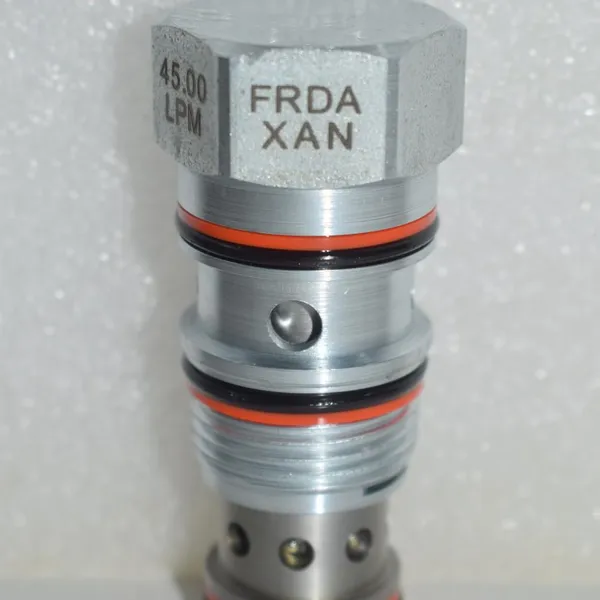

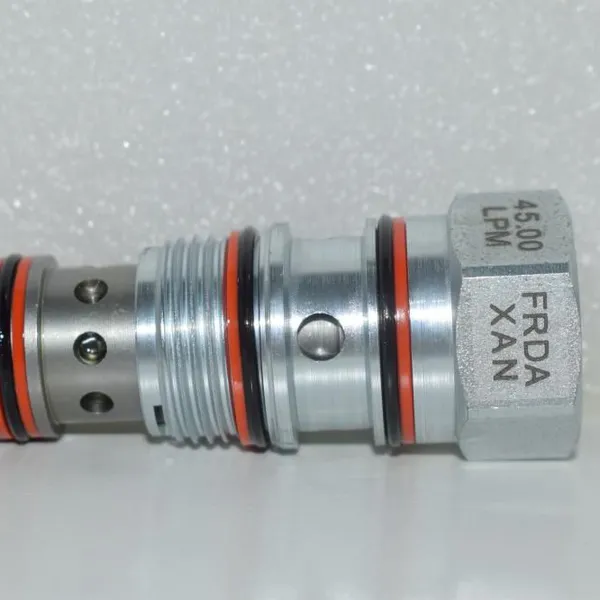

FRDAXAN Fixed Orifice Cartridge Valve, Bypass/Flow Limiting Flow Control Valve
US$ 65.4
1 - 9 Piece
US$ 64
10 - 49 Piece
US$ 62
≥50 Piece
Key Specifications
Get Latest Price
Material:
Alloy
Type:
Self-Operated
Certification:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
90 days
Related Products
-
LRFCXHN Regulating Valve Core Lrfc Normally Closed Flow Control ValveUS$ 78 - 80MOQ: 1 Piece -
NFBCKCN Flow Control Valve Nfbc Fully Adjustable Needle ValveUS$ 36 - 38MOQ: 1 Piece
-
LPDCXFN No Built-in Throttle Orifice Logic Valve Lpdc Normally Open Regulating UnitUS$ 54 - 55.7MOQ: 1 Piece
-
FSCSXAN Dividing/Combining Valve Pressure Compensated Control ValveUS$ 153.6 - 158.67MOQ: 1 Piece
-
FDCBHAN With Pressure Compensation / Reverse Flow Check ValveUS$ 123 - 129MOQ: 1 Piece
Material
Alloy
Type
Self-Operated
Certification
Other
Standard
Standard
Connection Mode
External Thread
Power
Hydraulic
Temperature
Ordinary Temperature
Media
Oil
Socket
T-2A
Current-carrying capacity
45 L/min
Maximum operating pressure
350 bar
Maximum input flow rate
120 L/min
Model weight
0.20 kg
Valve mounting torque
61-68 Nm
Sealing materials
Optional
Coating
Optional
Surface coating
Optional
Sealing material
Nitrile
Origin
China
Contact me to get more information.

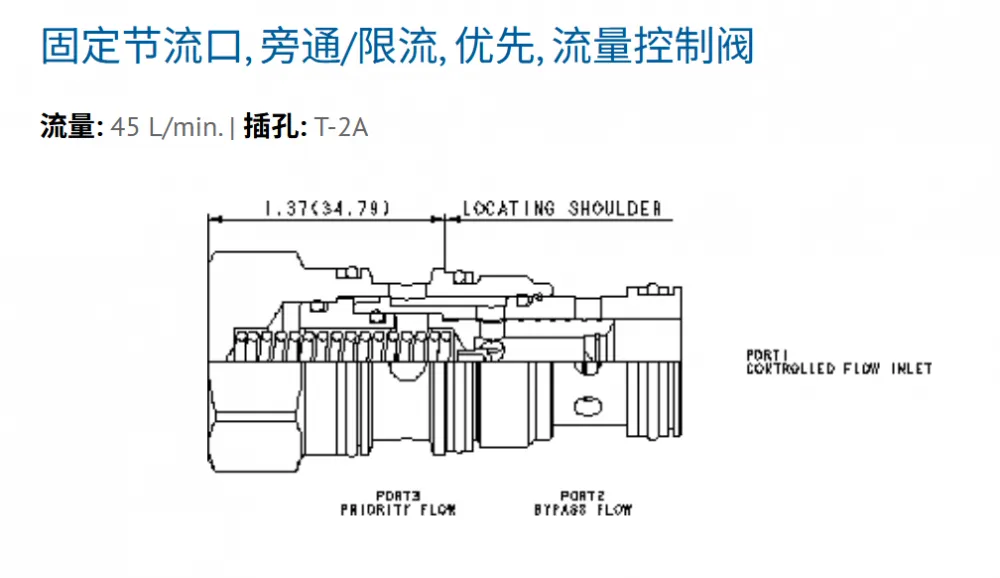

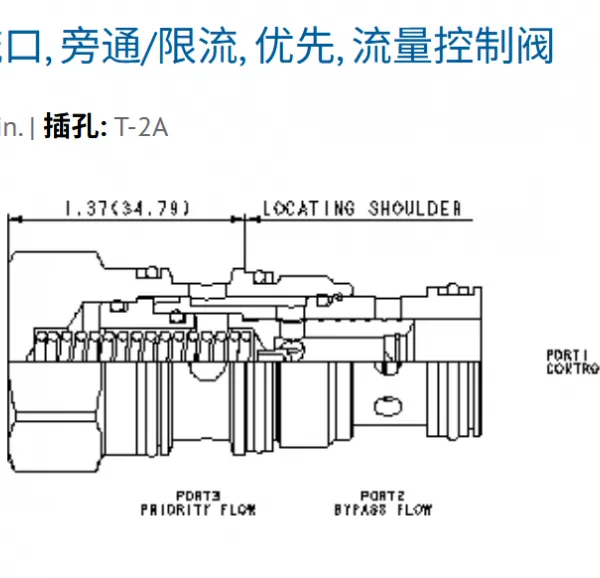

Bypass/throttle, with a fixed throttle orifice, the priority flow control valve receives the input flow from port 1 and uses it to meet the priority flow requirement of port 3. If the input flow exceeds the priority flow demand, the excess flow is diverted through port 2. The bypass flow can be used for secondary circuits.
