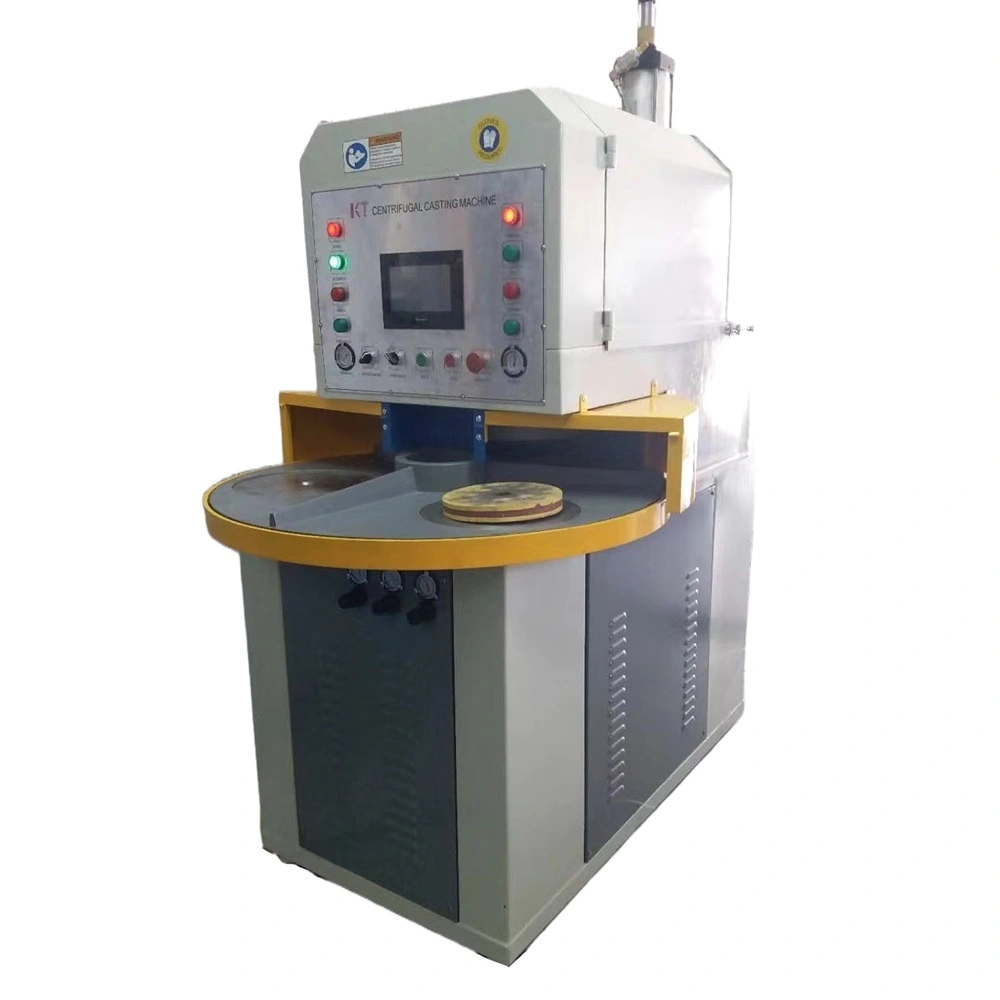

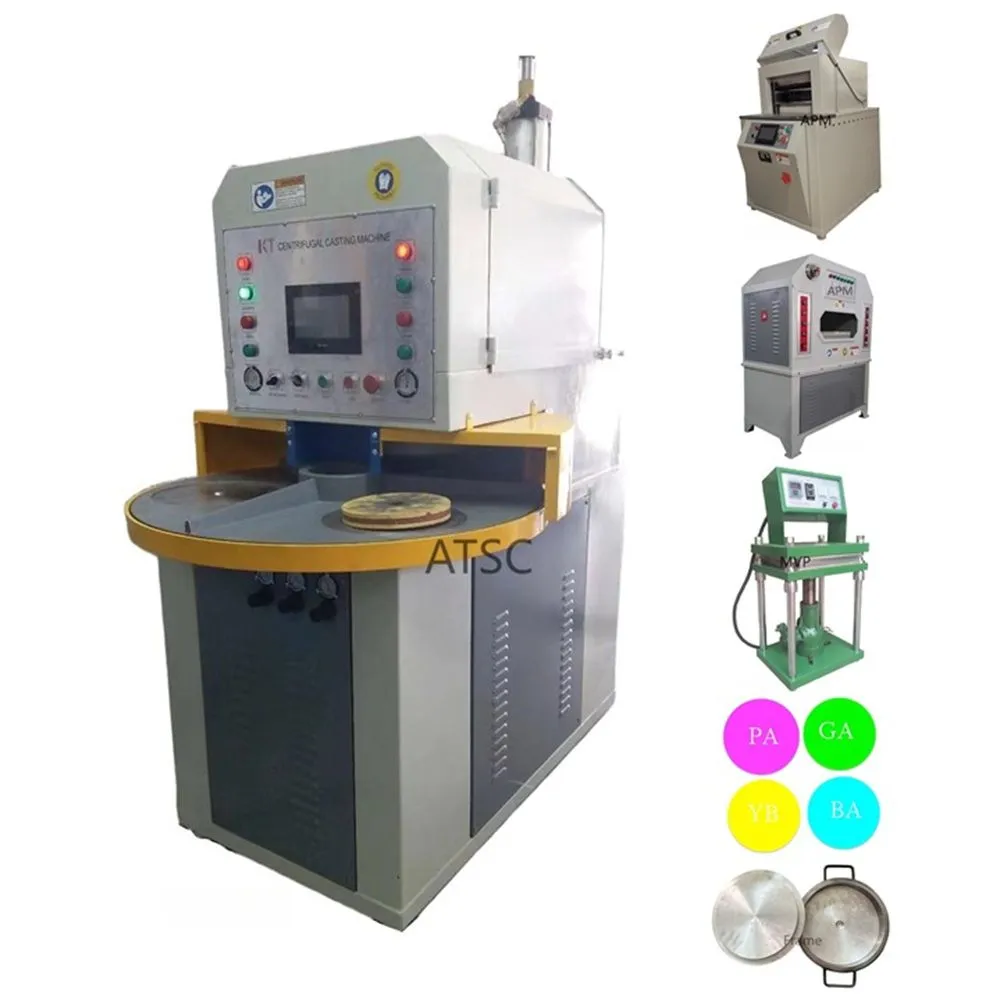

Help CenterAutomatic 3 Station Centrifugal Casting Machine Zinc Jewelry Casting Machine
Product Spotlights
Related Products
-
Semi-automatic Silicon Rubber Spin Casting Machine Zinc Jewelry Centrifugal Casting MachineNegotiableMOQ: 1 Set -
Semi-automatic 3 Station Silicone Rubber Mold Spin Casting Machines for Zinc Jewelry CastingUS$ 9200 - 11000MOQ: 1 Set
-
Manual Spin Casting Machine for Silicone Rubber Mold Centrifugal Casting Jewelry Casting MachineUS$ 1000 - 3500MOQ: 1 Set
-
Silicone Rubber Vulcanizing Press for Spin Casting JewelryUS$ 1000 - 3000MOQ: 1 Set
-
Semi-automatic Vacuum Centrifugal Casting Machine Silicone Rubber Jewelry Spin Casting MachineUS$ 2000 - 8000MOQ: 1 Set
Remark: The final prices should be subject to the negotiated prices.

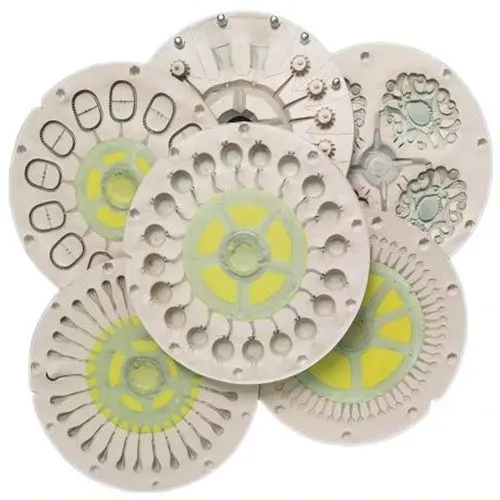

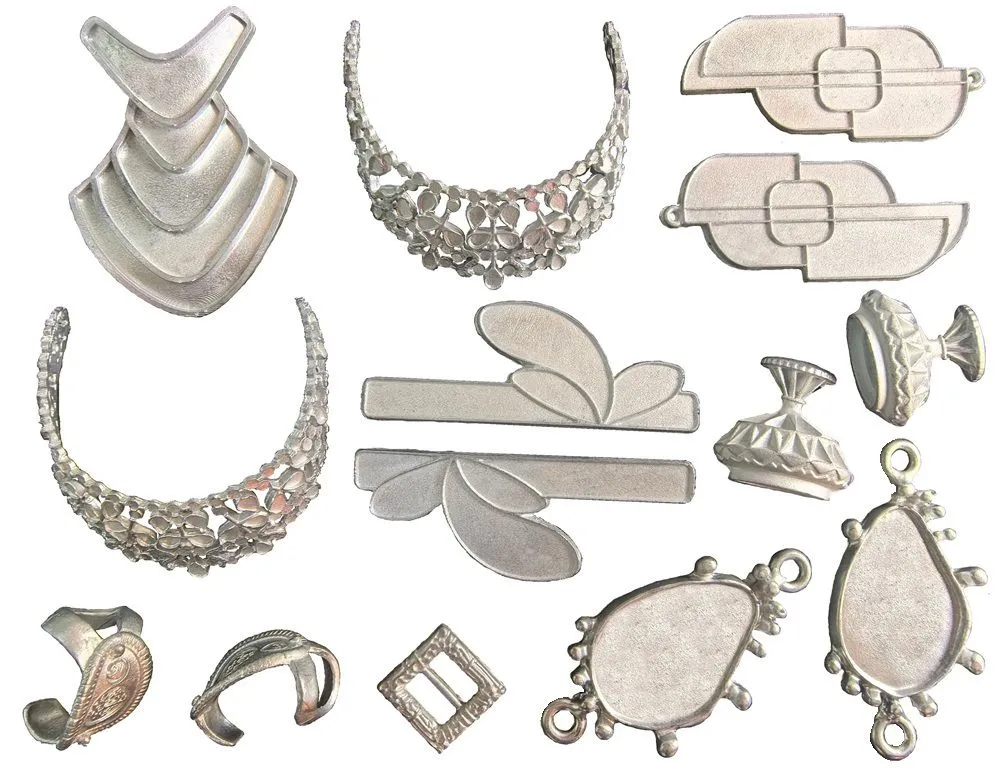

Centrifugal casting, also known as spin casting, is a method of utilizing centrifugal force to produce castings from a silicone rubber mold. It's a popular technique in the jewelry industry, as well as in the manufacturing of small metal parts that require high precision, such as collectible miniatures, fishing lures, and various components suchas casted buckles and accessories for the leather industry and garment industry, imitation jewelry, promotion gifts, medal, and figurines etc from metals with relatively low melting points (such as pewter, zinc, and some low-melting-point alloys).
Spin casting is favored for small to medium batch production because it is relatively quick and cost effective, requires less equipment investment compared to traditional metal casting methods, and can produce parts with intricate details.
Features:
Compact design, spin casting and metal melting furnace integrated together.
Tri-station for high efficiency, up to 240 casting operations per hour
Precious Index rotary table, speed adjustable.
Automatic feeding and automatic control make precision repeat production, and effectively saving time and labor.
Independent mould pneumatic camping system with independent pressure regulator and pressure gauge.
Variable frequency drive adjusts centrifugal speed and indexing speed from 0-1400 rpm
Specially designed heated casting channel controlled by thermostat reduces the operation temperature of the metal and extend the working life of the channel.
Safety protection of the centrifugal area.
Touch screen control panel digital displays and sets all functions, speed, time and temperatures etc.
PLC setting and controlling all production cycles, time, speed, rotary direction, temperatures, etc. Programmer and store of the setting for each mold.
Automatically diagnoses whether the rubber mold is placed or not.
Easy operated and maintained
| Model | ATSC12 | ATSC14 |
| Station | 3 | 3 |
| Mold dia.max | 12” | 14” |
| Mold Thickness,mm | 0-20 | 0-120 |
| Pressure,kg | 00-7 | 00-7 |
| Centrifugal motor,kW | 1.5 | 1.5 |
| Centrifugal speed,rpm | 50-1400 | 50-1400 |
| Indexing table motor,kW | 0.4 | 0.4 |
| Indexing speed,rpm | 50-1400 | 50-1400 |
| Furnace loading,kg | 85(zinc alloy) | 85(zinc alloy) |
| Furnace,kW | 9 | 9 |
| Casting channel,kW | 4 | 4 |
| Option | Platform | Platform |
Remark: The final prices should be subject to the negotiated prices.
