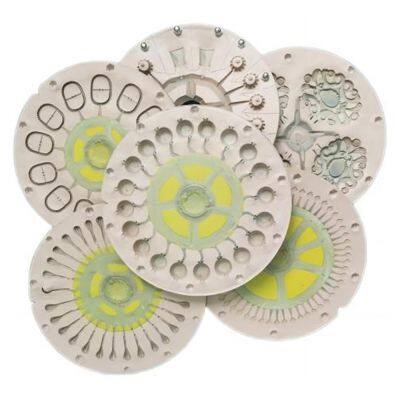

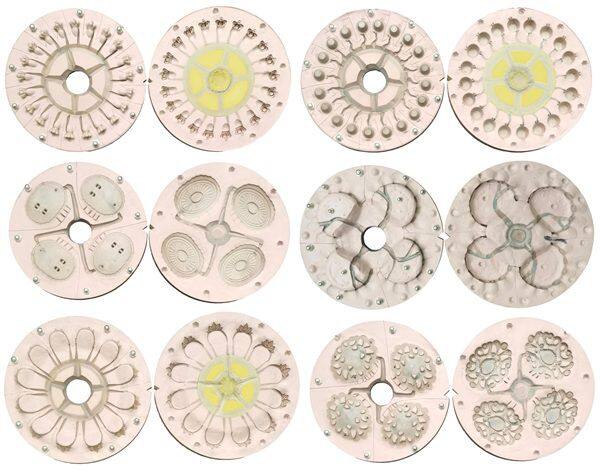

Centrifugal casting, also known as spin casting, is a method of utilizing centrifugal force to produce castings from a silicone rubber mold. It's a popular technique in the jewelry industry, as well as in the manufacturing of small metal parts that require high precision, such as collectible miniatures, fishing lures, and various components such as casted buckles and accessories for the leather industry and garment industry, imitation jewelry, promotion gifts, medal, and figurines etc from metals with relatively low melting points (such as pewter, zinc, and some low-melting-point alloys).
Spin casting is favored for small to medium batch production because it is relatively quick and cost-effective, requires less equipment investment compared to traditional metal casting methods, and can produce parts with intricate details.
Application:

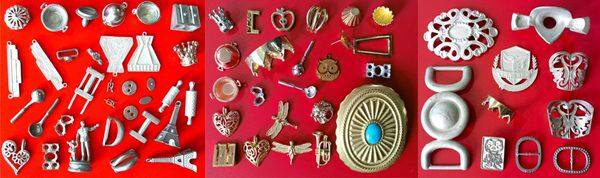

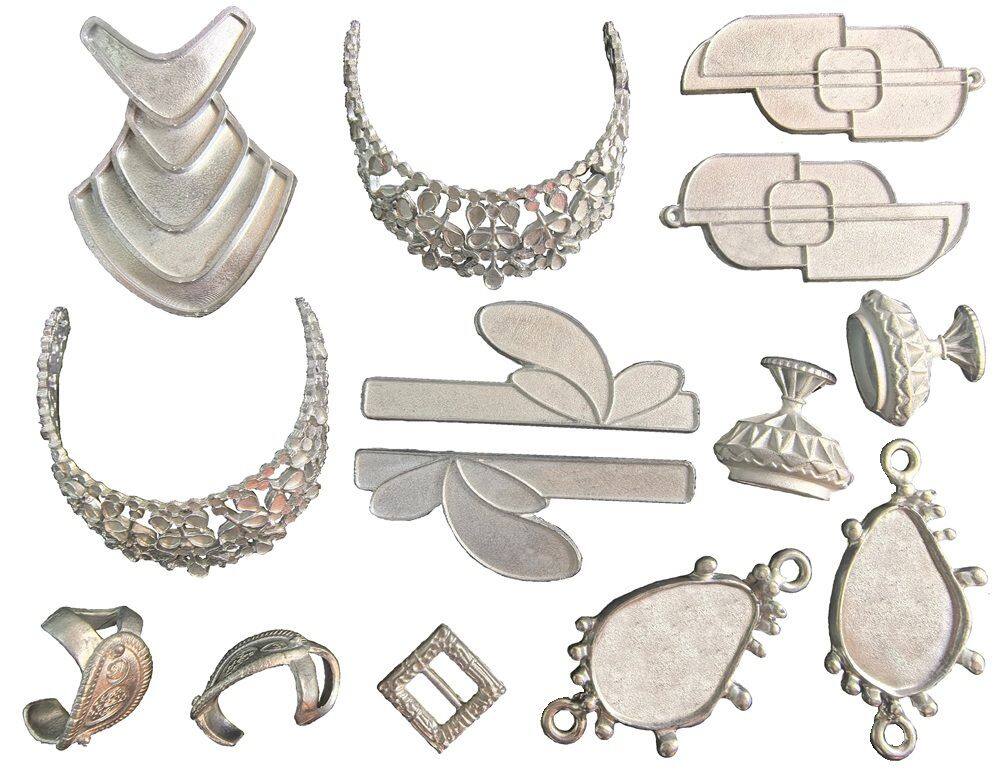

It is used to produce casted buckles and accessories for the leather industry and garment industry, imitation jewelry, promotion gifts, medal, and figurines etc from zinc alloy or tin alloy.

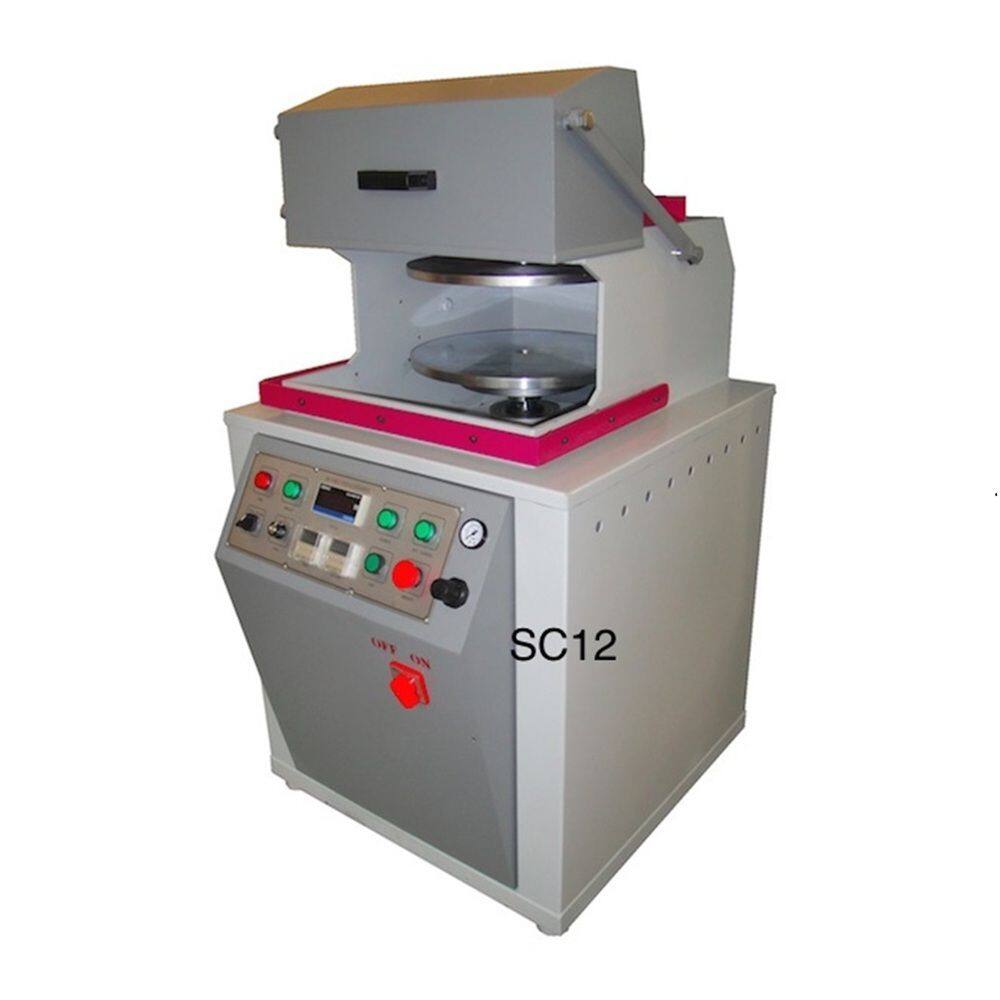

1. Semi-Automatic centrifugal casting machines
Features:
1. Digital speed display.
2. Digital timer for centrifugal time setting.
3. Digital counter.
4. Cover automatic open / close design, effectively saving time and labor.
5. Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options.
6. Safety protection of the centrifugation area.
7. Electronic emergency brake system.
8. Easy operated and maintained.
Model |
SC12 |
SC14 |
SC16 |
SC18 |
SC20 |
SC25 |
Mould dia. max |
12” |
14” |
16” |
18” |
20” |
25” |
Mould Thick,mm |
0-120 |
|||||
Clamping pressure, MPa |
0-0.7 |
|||||
Centrifugal Motor, kW |
0.75 |
1.5 |
1.5 |
1.5 |
2.25 |
3.0 |
Speed,RPM |
50-1400 |
|||||

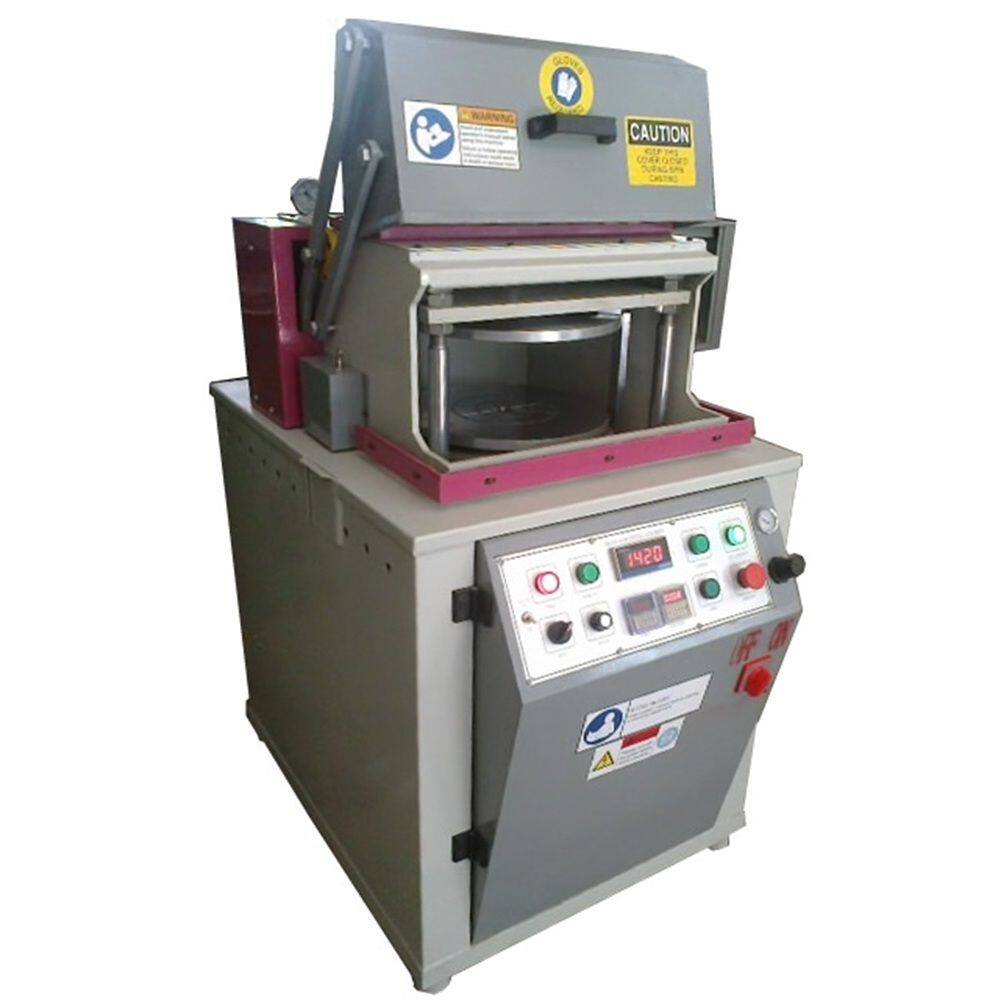

2. Semi-automatic Vacuumcentrifugal casting machines
Features:
1. Efficient vacuum pump, centrifugal casting cycle shorted, cooling faster, rubber mold working life prolonged.
2. Digital speed display, digital counter.
3. Digital timer for centrifugal time setting.
4. Cover automatic open / close design, effectively saving time and labor.
5. Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options.
6. Safety protection of the centrifugation area.
7. Electronic and pneumatic double emergency brake system.
8. Easy operated and maintained.
Model |
VSC12 |
VSC14 |
VSC16 |
VSC18 |
VSC20 |
VSC25 |
Mould dia. max |
12” |
14” |
16” |
18” |
20” |
25” |
Mould Thick,mm |
0-120 |
|||||
Clamping pressure |
0-0.7MPa |
|||||
Centrifugal Motor, Kw |
0.75 |
1.5 |
1.5 |
1.5 |
2.25 |
3 |
CentrifugalSpeed,RPM |
50-1400 |
|||||
Vacuum pump pressure |
0.07MPa |
|||||
Vacuum pump motor |
0.75 |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
3 .Semi-automatic 3-station centrifugal casting machines
Features:
1. Welded steel structure.
2. Precious index rotary table, speed adjustable.
3. Independent mould pneumatic camping system with independent pressure regulator and pressure gauge.
4. Variable frequency drive adjust centrifugal speed and indexing speed from 0-1400 rpm.
5. Safety protection of the centrifugal area.
6. Touch screen control panel digital display all functions, speed, time.
7. PLC setting and controlling all cycle functions, centrifugal time, centrifugal speed.
8. Automatically diagnoses whether the rubber mold is placed or not.
9. Built-in fan forced cooling rubber mold improved working life of the mold.
10. Easy operated and maintained.
11. Production output up to 200 casting operations per hour.
Model |
STSC12 |
STSC14 |
|
Mould diameter max |
12” |
14” |
|
Mould Thickness |
0-100mm |
0-100mm | |
Pressure |
0-7KG |
0-7KG | |
Centrifugal motor |
1.5kw |
1.5KW | |
Centrifugal speed |
50-1400rpm |
50-1400rpm | |
Indexing motor |
0.4kw |
0.4KW | |
Indexing speed |
50-1400rpm |
50-1400rpm |
