Automatic Centrifugal Casting Machine

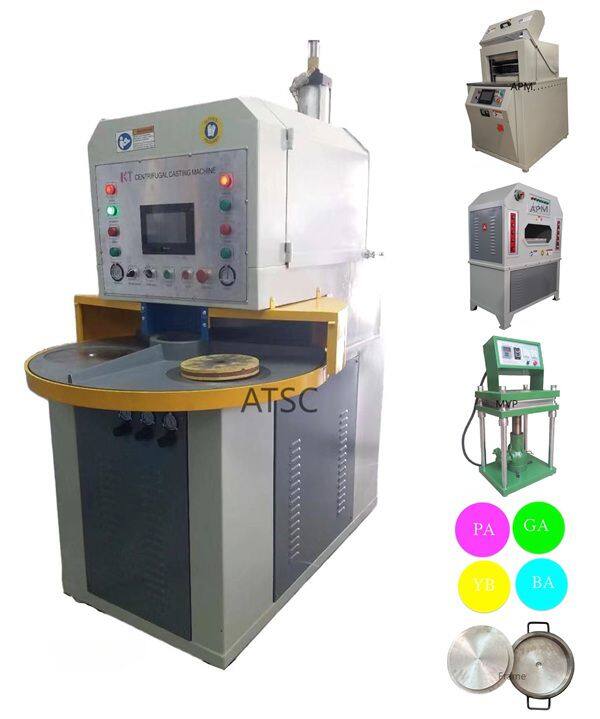

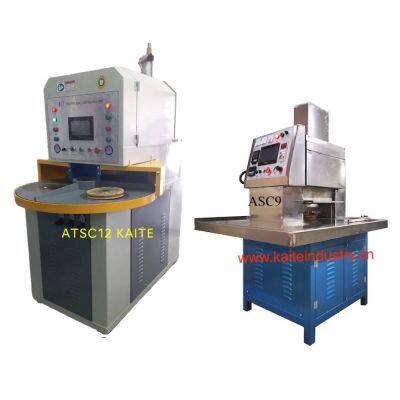

Automatic 3-station Centrifugal Casting Machine

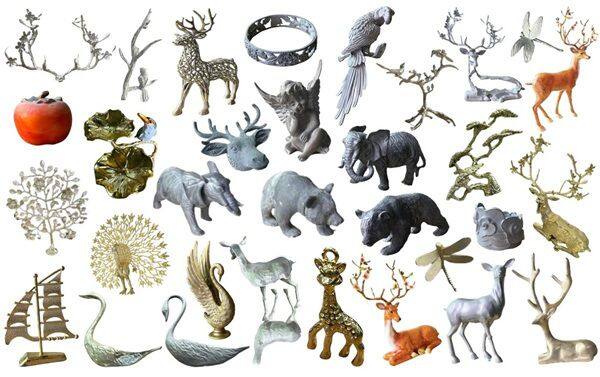

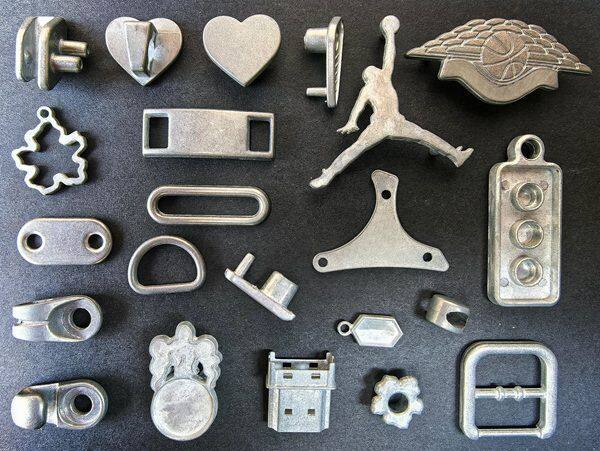

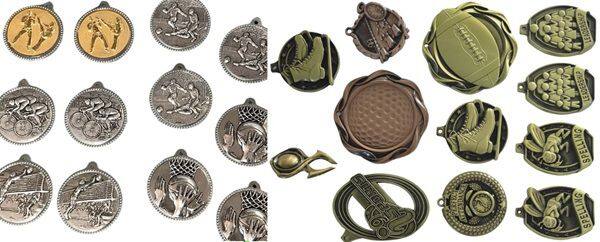

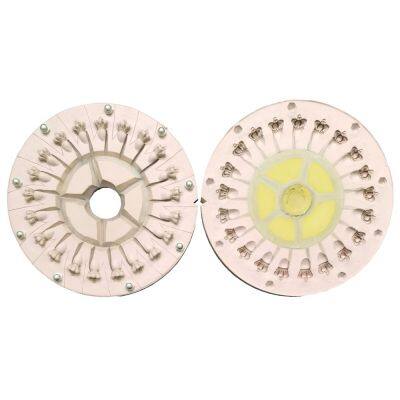

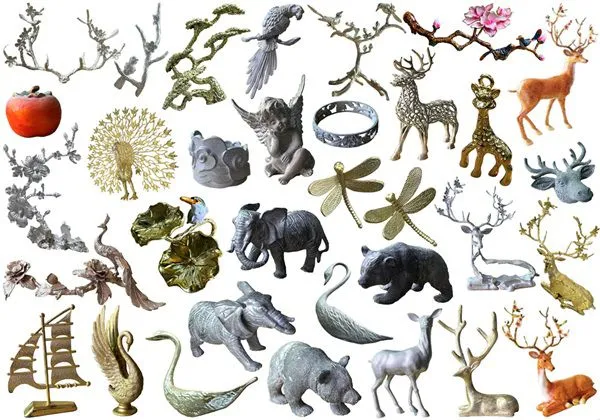

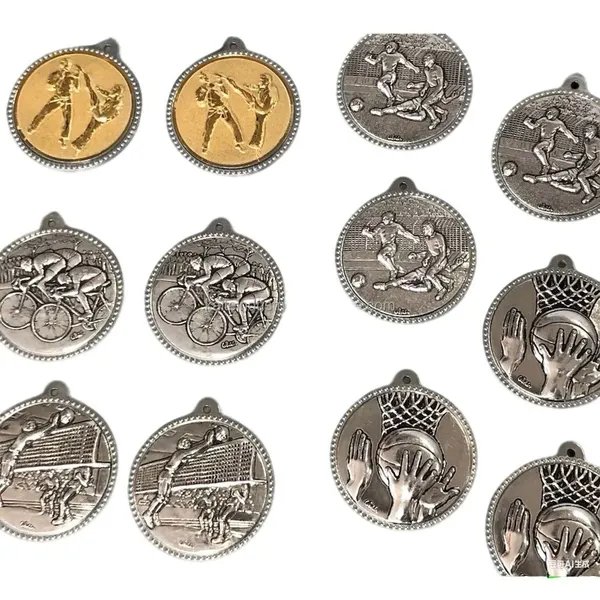

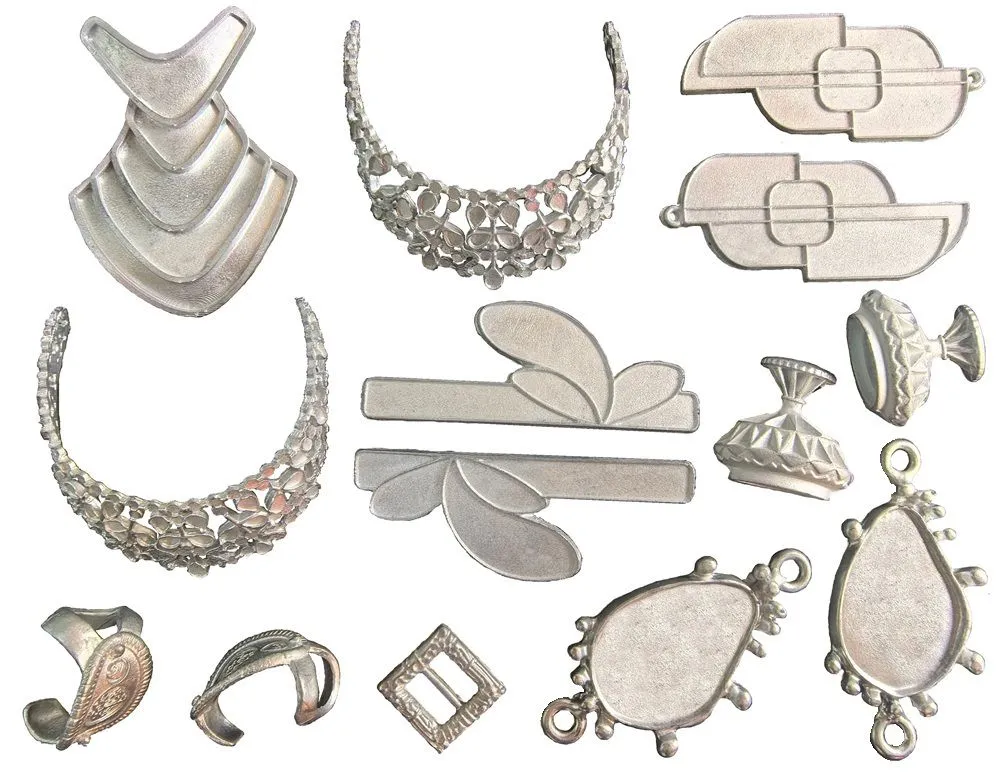

It is used to produce castings such as buckles and accessories for the leather industry and garment industry, imitation jewelry, promotion gifts, medal, and figurines etc from low melting zinc alloy, tin alloy, and other metals in the rubber mold. Production output up to 240 casting operations per hour.

l  Compact design, spin casting and metal melting furnace integrated together.

l  Automatic feeding and automatic control make precision repeat production, and effectively saving time and labor.
l  Independent mould pneumatic camping system with independent pressure regulator and pressure gauge.

l  Specially designed heated casting channel controlled by thermostat reduces the operation temperature of the metal and extend the working life of the channel.

l  Touch screen control panel digital display and setting all functions, speed, time etc.
l  PLC setting and controlling all production cycles, time, speed, rotary direction, temperature. Programmer and store of the setting for each mold.
Automatic dignoises modl missing.
l  Built-in fan forced cooling rubber mold improved working life of the mold.

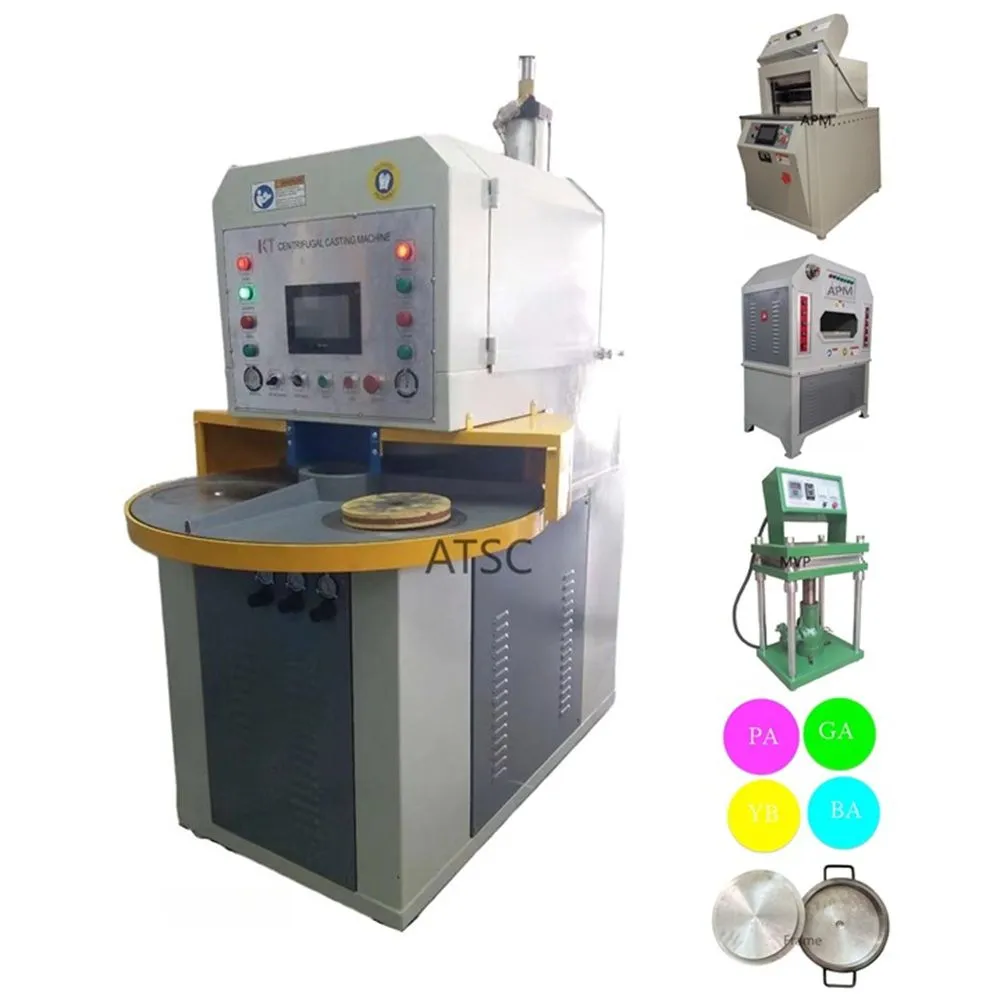

Model:ATSC12

Station:3

Mold dia. max:12”

Mold Thickness: 0-120mm

Pressure: 0-7KG

Centrifugal motor:1.5KW

Centrifugal speed: 50-1400rpm

Indexing table motor: 0.4KW

Indexing speed: 50-1400rpm

Furnace loading:  120kg (zinc alloy)

Furnace heating: 9KW

Casting channel  heating:  5KW

Option: Platform

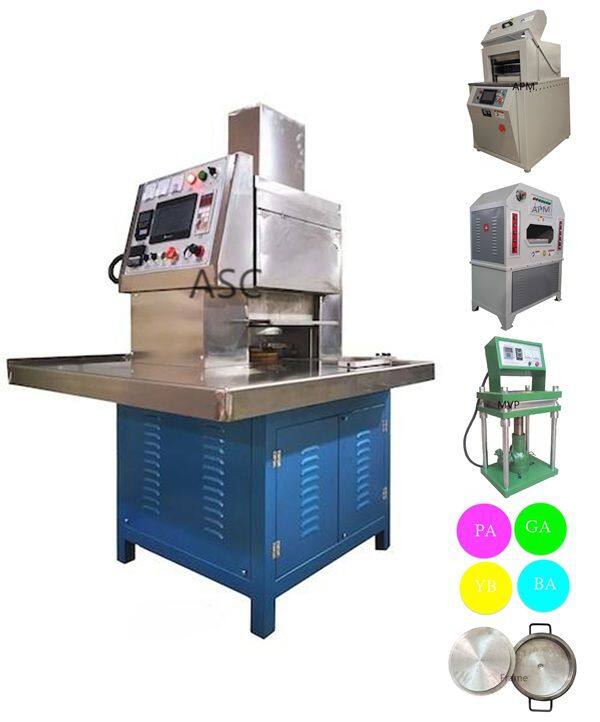

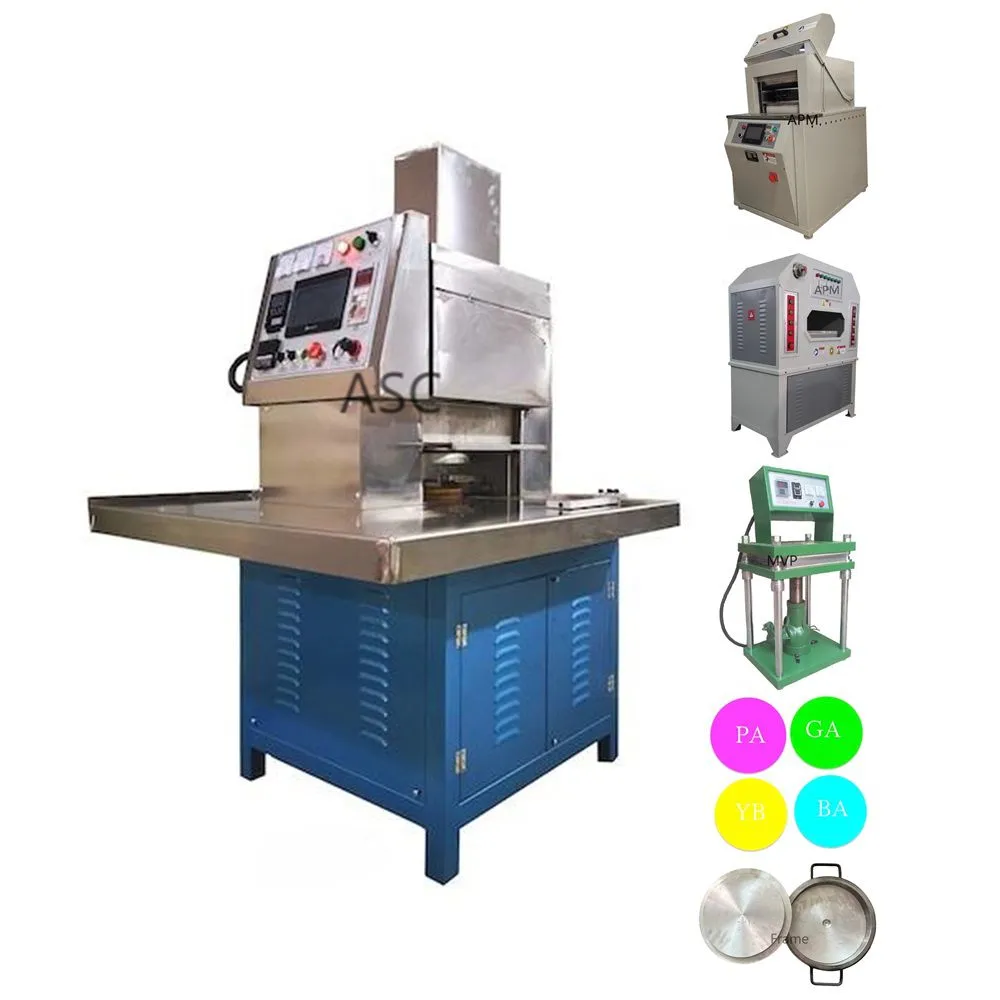

2/. Automatic single station Centrifugal Casting Machine

This model is specially designed to produce smaller items fully automatically.

Compact design, spin casting and metal melting furnace integrated together.

Variable frequency drive adjusts centrifugal speed from 0-1400 rpm

 Safety protection of the centrifugal area.

Touch screen control panel digital display and setting speed, casting time and filling time, etc.
PLC setting and controlling all production cycles, time, speed. Programmer and store of the setting.
Built-in fan forced cooling rubber mold improved working life of the mold.
