Home > Instruments & Meters > Test Instrument > Test Machine > YES-3000D Electric Concrete Block Compression Testing Machine 300T/3000kn Capacity

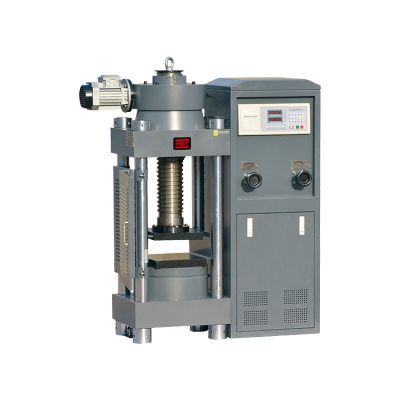

YES-3000D Electric Concrete Block Compression Testing Machine 300T/3000kn Capacity
US$ 3100 - 3900
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Electronic Compression Testing Machine
Platens Size:
420 mm X 420 mm
Resolution:
0.001 N
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST YAW-2000D 2000kn Cement Mortar Concrete Strength Automatic Pressure Compression Testing MachineUS$ 24492.65 - 27991.60MOQ: 1 Set -
HST Concrete Compressive Strength Testing Machine 2000kN Automatic Compression Testing Machine Concrete Cement CompressionUS$ 68579.42 - 69979.00MOQ: 1 Set
-
YAW-2000D 2000KN Cement Concrete Compressive Strength Universal Testing MachineUS$ 3700 - 4700MOQ: 1 Set
-
HST Auto High Precision Construction Concrete Cement Brick Block Compressive Strength Pressure Test MachineUS$ 68579.42 - 69979.00MOQ: 1 Set
-
500kn 600kn 50ton 60ton Digital Manhole Cover Compression Testing MachineUS$ 38138.56 - 38488.45MOQ: 1 Set
Platens Size
420 mm X 420 mm
Resolution
0.001 N
Brand Name
HST
Place of Origin
Shandong, China
Input Voltage
220 V
Max. load
300T concrete block compression testing machine
Control way
Manual control load way
Testing space regulating way
Electric ball screw adjust
Piston route
50mm
Max piston speed
20mm/min
Test width
330mm
Compression space
320mm
Upper Pressure plate size
240*240mm(Can be customized)
Lower pressure plate size
250*300mm(Can be customized)
power
Hydraulic
Product Description
YES-3000D 300T 3000kn Electric concrete block compression testing machineApplication:
This compression testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Technical parameter:
Model |
YES-1000D/ YES-2000D |
YES-3000D |
|
Max. load |
1000kN/100Ton 2000kN/200Ton |
3000kN/300Ton |
|
Machine Class |
1 class |
||
Range of test force |
4% ~100%FS |
||
Testing space adjust method |
Electric adjust |
||
Indicating value accuracy |
±1% |
||
Piston stroke |
50mm |
80mm |
|
Distance between platens |
320mm |
||
Upper platen size |
240×240mm (Can be customized) |
265×265 mm (Can be customized) |
|
Lower platen size |
250×300mm (Can be customized) |
360×285 (Can be customized) |
|
Display |
LCD |
||
Power supply |
AC380V/50Hz/3 phase(can be customized) |
||
Size |
950×420×1350 mm |
1000×500×1500 |
|
Weight |
950kg |
1500kg |
|
