Home > Instruments & Meters > Test Instrument > Test Machine > YAW-300D 30Ton 300kN Computer Controlled Brick Cubes Compressive Strength Testing Machine

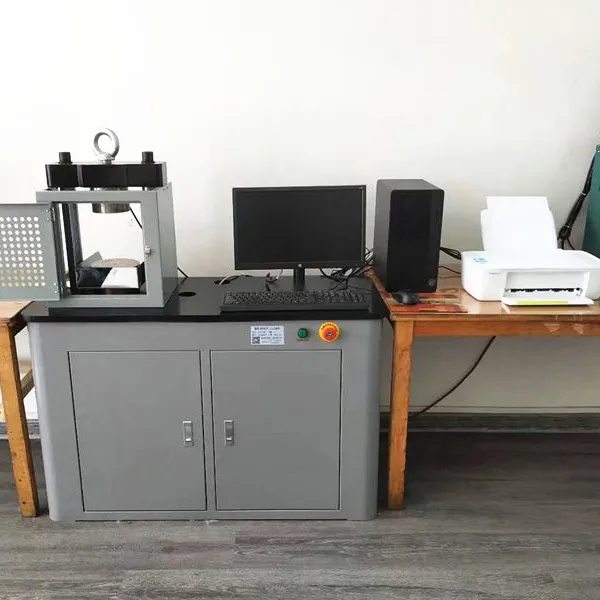

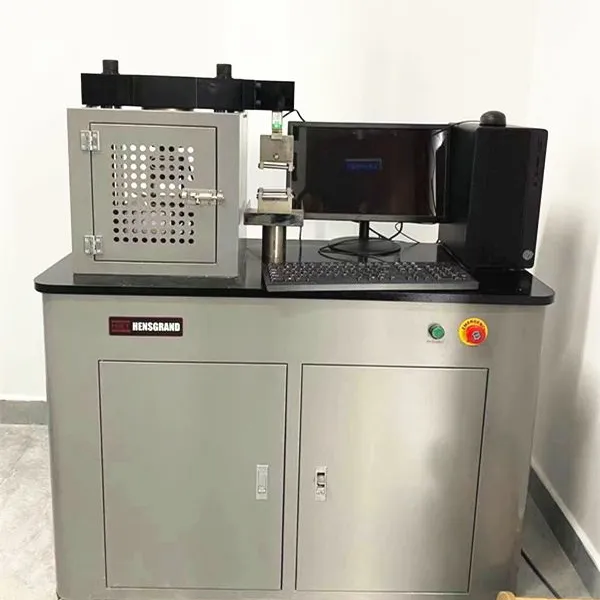

YAW-300D 30Ton 300kN Computer Controlled Brick Cubes Compressive Strength Testing Machine
US$ 34989.50
1 - 4 Set
US$ 27991.60
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
brand name:
HST
place of origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST CTM 2000 N Digital 2000kn CTM Concrete Compression Testing MachineUS$ 10496.85 - 13995.80MOQ: 1 Set -
HST 2000KN Concrete Compressive Strength Testing Machine, Manual Concrete Compression Testing MachinesUS$ 68579.42 - 69979.00MOQ: 1 Set
-
YES-3000D Electric Concrete Block Compression Testing Machine 300T/3000kn CapacityUS$ 3100 - 3900MOQ: 1 Set
-
HST YAW-2000D 2000kn Cement Mortar Concrete Strength Automatic Pressure Compression Testing MachineUS$ 24492.65 - 27991.60MOQ: 1 Set
-
HST Concrete Compressive Strength Testing Machine 2000kN Automatic Compression Testing Machine Concrete Cement CompressionUS$ 68579.42 - 69979.00MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM
power
2kw
Voltage
380 V
warranty
1year
Max compression test force
300kN
Control and deal mode
Computer constant control and auto dealing
type
high quality electric motor testing equipment
Effective test width
230mm
Space between upper and lower
200mm (optional)
Effective compression space
50mm
Compression plate size
140mm
Certification
CE,ISO
Product Description
1. Application
YAW Series Electromechanical Compression Testing Machine is mainly used to determine of the compressive flexural strength of cement mortar and flexural strength of concrete/stone prism.
Space adjusting & test processes could be controlled by the software and the test result could be transferred to the software for further analysis.
It is the most advanced series in compressive testing machines. It is widely used in civil engineering areas, quality control department, universities and institutes as well as other areas and works for the mechanical performance analysis of architecture, building materials.
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
YAW Series Electromechanical Compression Testing Machine is mainly used to determine of the compressive flexural strength of cement mortar and flexural strength of concrete/stone prism.
Space adjusting & test processes could be controlled by the software and the test result could be transferred to the software for further analysis.
It is the most advanced series in compressive testing machines. It is widely used in civil engineering areas, quality control department, universities and institutes as well as other areas and works for the mechanical performance analysis of architecture, building materials.
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
3.Specification:
Model |
YAW-300D |
YAW-300G |
|
Max compression test force(kN) |
300kN |
300 |
|
Max bending test force(kN) |
/ |
10 |
|
Test Accuracy |
CLASS 1 (ISO 7500- 1) |
||
Test measurement range |
2%- 100%FS |
||
Control way |
Computer control auto loading progress |
||
Constant loading speed |
0. 1KN/S~10KN/S |
||
Test space adjustment method |
Block adjustment test space |
||
Speed |
0.01-50mm/min |
||
Max compression space |
200mm |
||
Upper and lower compression plates size |
Φ280 |
||
Size |
570*410*1340mm |
||
Power supply |
220V, 50HZ, 1.5 KW |
||
