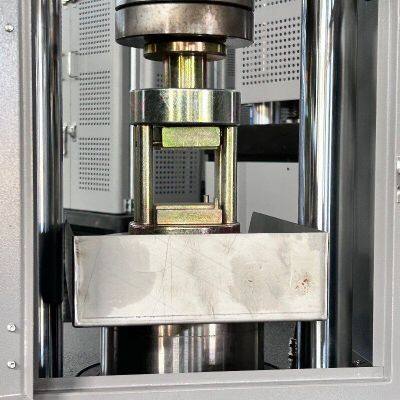

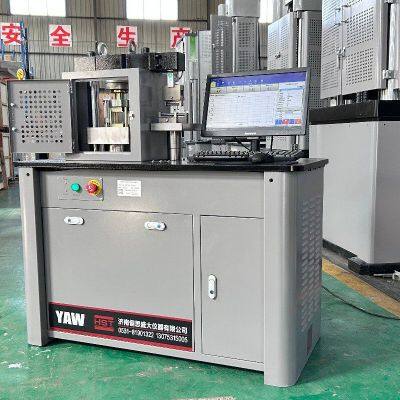

200 KN 300 KN Computer-Controlled Hydraulic Servo Cement Mortar Testing Machine 1-Year for Compressive Flexural Strength Testing
US$ 25892.23
1 - 2 Set
US$ 24492.65
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300KN 10KN Computer Control Hydraulic Servo Cement Motar Compressive Flexural Strength Testing MachineUS$ 26592.02 - 27291.81MOQ: 1 Set -
Cement Compressive and Flexural Test/ Compression Strength Tester Full Automatic Pressure Testing MachineUS$ 26592.02 - 27291.81MOQ: 1 Set
-
HST YES-2000 200 Ton Concrete Cube Block Compression Testing MachineUS$ 9797.06 - 10496.85MOQ: 1 Set
-
HST YES-2000 200 Ton 2000 KN Concrete Cube Block Compression Testing MachineUS$ 9797.06 - 10496.85MOQ: 1 Set
-
YAW-DH Series Computer Closed-loop Control Cement Compression Testing Machine,concrete ,brick Testing ApparatusUS$ 96571.02MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, cement, mortar, brick, concrete etc
customized support
OEM, ODM
power
2.5KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year, 12 months
Product name
Compression Testing Machine(Servo Motor)
Model
YAW-200D
Maximum compression force(kN)
200kn 250kn 300kn
Upper Compression platens size (mm)
120
Lower Compression platens size (mm)
160
Max. piston stroke (mm)
80
Max. piston speed (mm/min)
80
Column clearance (mm)
210
Products Description
Application
HST-YAW-G Cement mortar Compression and Flexural Strength Testing Machine(Servo Motor) tests the mechanical properties of cement, mortar, brick, concrete and other building materials with servo motor acceleration and deceleration control technology, showing the load value, loading speed and loading curve. The test data is automatically processed, stored, and printed.
Standards
ISO 679, ASTM C 109 and C 349, EN196-1, EN ISO 7500-1, EN 10002-2, NF P18411 Class 0.5,EN 1015-11, DIN 1164 GOST 26798.1,BS 4550,BS 3892-1, 4551-1, ISO 679,EN 459-2, EN 13454-2;
MODEL |
YAW-200D |
YAW-250D |
YAW-300D |
YAW-300DB |
|||
Maximum compression force(kN) |
200 |
250 |
300 |
300 |
|||
Maximum flexural force(kN) |
Not available |
Not available |
Not available |
10 / 20 / 30 |
|||
Test Accuracy |
Grade 1 |
||||||
Load test Range |
1%-100% of FS |
||||||
Max. distance between Compression platen (mm) |
200 |
||||||
Upper Compression platens size (mm) |
120 |
||||||
Lower Compression platens size (mm) |
160 |
||||||
Max. piston stroke (mm) |
80 |
||||||
Max. piston speed (mm/min) |
80 |
||||||
Column clearance (mm) |
210 |
||||||
Power |
Single phase 220 V (110 V), 50-60 Hz |
||||||
Dimensions (mm) |
1120*480*1260 |
||||||
