Home > Instruments & Meters > Test Instrument > Test Machine > HST-YAW3000D-II 300t Computer Control Concrete Block Compression Testing Machine

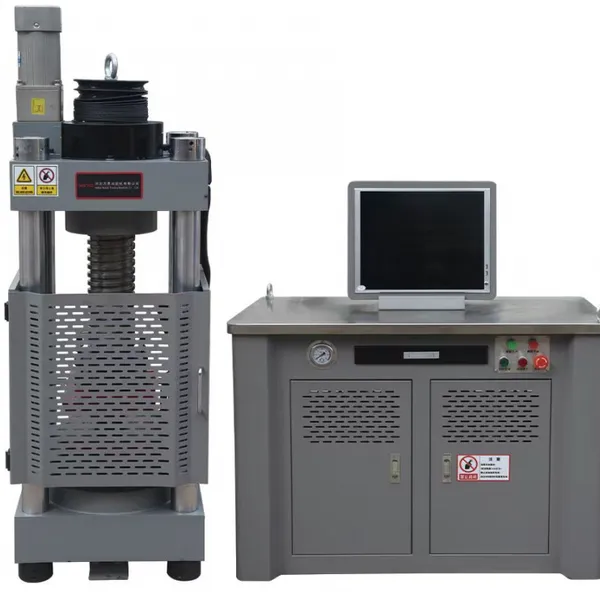

HST-YAW3000D-II 300t Computer Control Concrete Block Compression Testing Machine
US$ 6000 - 8000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
1 Year
Brand Name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YAW-300G CE Equipment Cement Stone Concrete Brick Compression Flexural Test Machine 220V 1 Year WarrantyUS$ 4000 - 4800MOQ: 1 Set -
HST 300T YAW-3000 Compressive Strength Test Machine Laboratory Test MachineUS$ 8000 - 12000MOQ: 1 Set
-
YAW-3000DH 3000KN CTM Computer Automatic Compression Testing MachineUS$ 8000 - 11000MOQ: 1 Set
-
YES-2000B Digital Pressure Testing Machine Universal Testing Machine Concrete Compression Testing Machine Laboratory EquipmentUS$ 1400 - 1500MOQ: 1 Set
-
HST 1000 2000 3000 Concrete Testing Machine Compression Tester Universal Hydraulic Tester LaboratoryUS$ 68579.42 - 69979.00MOQ: 1 Set
Warranty
1 Year
Brand Name
HST
Place of Origin
Shandong, China
Max. load
YAW-3000D-II concrete block compression testing machine
Control way
computer control load way
Testing space regulating way
Electric ball screw adjust
Piston route
30mm
Max piston speed
20mm/min
Test width
280mm
Compression space
320mm
Upper Pressure plate size
220*250mm
Lower pressure plate size
300*300mm
power
Hydraulic
Customized support
OEM, ODM, OBM, Software Reengineering
Voltage
380 V, 220 V
Application
Compression Testing
Protection Class
IP55
Power
1.5kw
Accuracy
1class
Product Description
HST-YAW2000D-II Computer Control Compression Testing Machine
Application:
The testing machine tests the mechanical properties of cement, mortar, brick, concrete and other building materialswith servo motor acceleration and deceleration control technology, showing the load value, loading speed and loading curve. The test data is automatically processed, stored, and printed.This series compression testing machine is mainly
designed for compression test of building material items, such as concrete cube, concrete blocks,
cement specimen, and bricks etc, also used for compression performance test of rubber pad and
top forge test of metal. With new design idea and advanced technology, this series have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at
scientific institutes.
2. Standards:
It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1, EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF
P18-411 -UNE 83304, 7242 etc.
3. Applicable Specimen size:
* Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more;
* Rectangular sample: 400x200x200mm, 400x200x400mm etc;
* Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per customer required.
* Remark: test space can be customized according to specified specimen size.
4. Main Technical Parameters
2. Standards:
It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1, EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF
P18-411 -UNE 83304, 7242 etc.
3. Applicable Specimen size:
* Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more;
* Rectangular sample: 400x200x200mm, 400x200x400mm etc;
* Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per customer required.
* Remark: test space can be customized according to specified specimen size.
4. Main Technical Parameters
Model |
HST-YAW2000D-II |
HST-YAW3000D-II |
|
Max. Load |
2000kN |
3000kN |
|
Test space adjustment mode |
Electric ball screw adjust |
||
Control method |
Computer auto control loading process |
||
Test class |
1 class |
||
Load measuring range |
4-100% of F.S |
||
Resolution of test power |
1/300000 F.S |
||
Load accuracy |
±1.0% |
||
Displacement measurement |
0.01mm |
||
Displacement measurement accuracy |
≤±0.5% |
||
Upper and low compression platen |
220x250mm |
300x300mm |
|
Compression test space |
320mm |
400mm |
|
Distance between two columns |
280mm |
300mm |
|
Piston stroke |
30mm |
50mm |
|
Piston diameter |
250mm |
300mm |
|
Mainframe dimensions |
440x350x1260 |
1000x500x1450mm |
|
Control cabinet |
1130x530x800mm |
1130x530x800mm |
|
Weight |
About 650KG |
About 1000KG |
|
The total power of the power supply |
0.75KW, AC 380V±10% |
||
