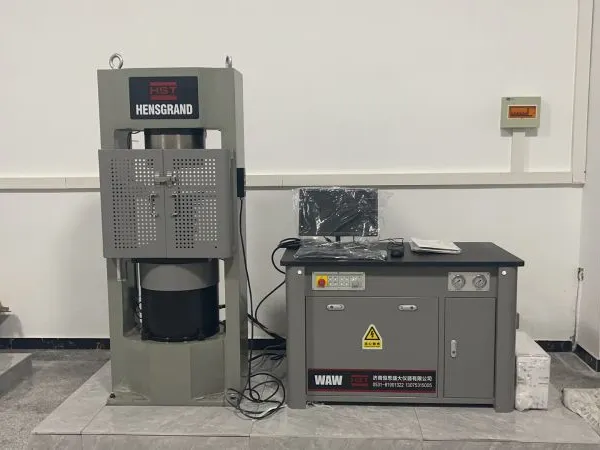

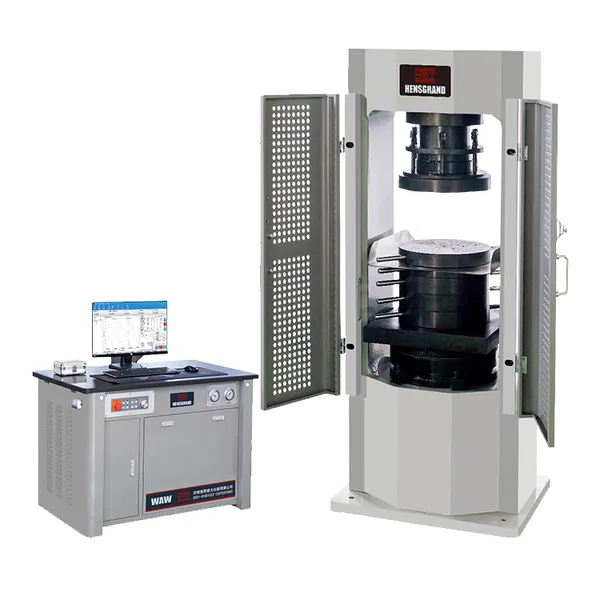

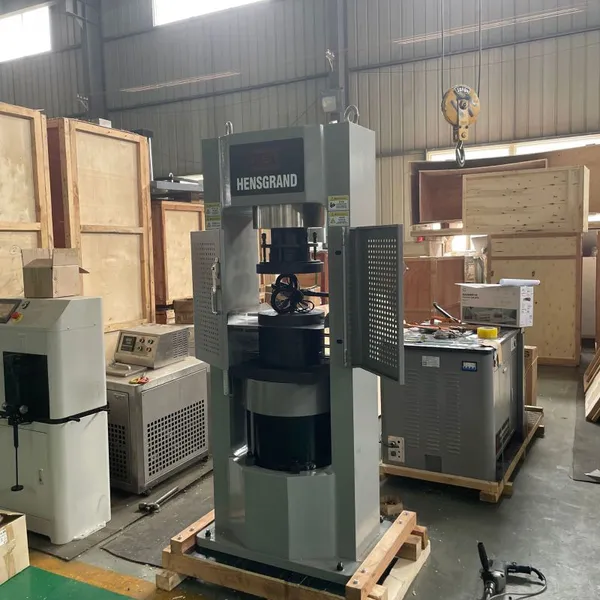

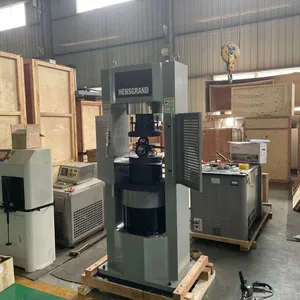

ASTM C109 Compression Test Machine of Hydraulic Cement Mortars
US$ 94471.65
1 - 4 Set
US$ 90972.70
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12 Months
Accuracy:
1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST ASTM C39 Compressive Strength Testing Machine of Cylindrical Concrete SpecimensUS$ 9797.06 - 10496.85MOQ: 1 Set -
Computer Control Automatic 5000 Kn Compression Strength Testing Machine for Concrete PressUS$ 176347.08MOQ: 1 Set
-
HST-YAW3000D-II 300t Computer Control Concrete Block Compression Testing MachineUS$ 6000 - 8000MOQ: 1 Set
-
YAW-300G CE Equipment Cement Stone Concrete Brick Compression Flexural Test Machine 220V 1 Year WarrantyUS$ 4000 - 4800MOQ: 1 Set
-
HST 300T YAW-3000 Compressive Strength Test Machine Laboratory Test MachineUS$ 8000 - 12000MOQ: 1 Set
Warranty
12 Months
Accuracy
1
brand name
HST or OEM
place of origin
Shandong, China
customized support
OEM, ODM
power
2
Protection Class
IP55
Voltage
380 V
warranty
1 year
Certificate
CE ISO
delivery
5 days after get payment
Max. Load
2000kn
Range of test force
4% ~100%FS
Control method
Computer auto control loading process
Test space adjustment mode
Electric ball screw adjust(manual for option)
Oil source control cabinet structure
One-piece oil source control cabinet
Load display accuracy
Better than ±1%
Piston stroke
50mm
Product Description
1. Application
This machine is an important instrument for testing the physical properties, structural properties and internal and external defects of various concrete materials and their products. It can realize the compression type test of metal or non-metal materials, can automatically obtain the compressive strength and other performance indicators of the measured material, and can complete the closed-loop control of constant rate loading, constant rate deformation, constant rate displacement, constant rate strain, etc. .
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
This machine is an important instrument for testing the physical properties, structural properties and internal and external defects of various concrete materials and their products. It can realize the compression type test of metal or non-metal materials, can automatically obtain the compressive strength and other performance indicators of the measured material, and can complete the closed-loop control of constant rate loading, constant rate deformation, constant rate displacement, constant rate strain, etc. .
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
3.Specification:
Model |
YAW-1000DH YAW-2000DH |
YAW-3000DH |
|
Max compression test force(kN) |
1000kN 2000kN |
3000 |
|
Max bending test force(kN) |
// |
/ |
|
Test Accuracy |
CLASS 1 (ISO 7500- 1) |
||
Test measurement range |
2%- 100%FS |
||
Control way |
Computer control auto loading progress |
||
Frame effective span |
550MM |
||
Piston diameter |
370MM |
||
pressure plate size |
350MM |
||
Max compression space |
320mm |
||
