YAW-3000DH 3000KN CTM computer automatic Compression Testing Machine
Main technical parameters
.1 Host parameters:
vFrame structure: back shape, integral casting frame;
vFrame material: QT500-7;
vMaximum compression space (mm): 320;
v Frame effective span (mm): 550;
vPiston diameter (mm): Φ370;
v The maximum stroke of the piston (mm): 120;
v System pressure (Mpa): 35;
vTotal height of cushion block (mm): 200;
vUpper pressure plate size (mm): φ300;
v Lower pressure plate size (mm): φ320;
v The maximum speed of piston no-load movement (mm/min): 30;
v Servo motor power (kW): 2.2;
(2) Measurement parameters:
v Maximum test force (kN): 3000;
vTest machine level: 0.5 level/1 level;
v Effective measuring range of test force: 2%-100%F.S;
vResolution of test power: 1/500000 of full scale (there is only one resolution in full scale, no bins);
v Test force measurement accuracy: better than ≤±0.5%;
v Displacement measurement resolution: 0.01mm;
vDisplacement measurement accuracy: better than ≤±0.5%;
5.2 Control parameters:
v Force control speed range: 0.001%~5%FS/s;
v Force control retention accuracy: ±0.002% F.S;
vDeformation control speed range: 0.001%~5%FS/s;
vDeformation control retention accuracy: ≤±0.002%F.S;
vDisplacement control speed range: 0.1~30mm/min;
vDisplacement control speed control accuracy: ≤±0.2%;
v Displacement control retention accuracy: ≤±0.02mm;
vControl mode: force closed-loop control, deformation closed-loop control, displacement closed-loop control;
YAW-3000D Computerized 300Ton Concrete Compression Testing Machine
1. Application]
Send Inquiry to This Supplier
You May Also Like
-
HST Computer Controlled Electro-hydraulic Servo Compression Machine, Hydraulic Concrete Compression PressUS$ 68579.42 - 69979.00MOQ: 1 Set
-
HST 2000kn Calibration Compression Testing Machine Calibrate Tensile Calibrate Tension VerificationUS$ 68579.42 - 69979.00MOQ: 1 Set
-
ASTM C109 Compression Test Machine of Hydraulic Cement MortarsUS$ 88873.33MOQ: 1 Set
-
HST ASTM C39 Compressive Strength Testing Machine of Cylindrical Concrete SpecimensUS$ 10496.85 - 12596.22MOQ: 1 Set
-
HST YAW-2000DH Fully Automatic Compression Testing MachineUS$ 68579.42 - 69979.00MOQ: 1 Set
-
Cast Lron & Steel 150mm Concrete Test Cube MouldUS$ 237.93MOQ: 1 Set
-
YES-5000E 5000kN 500t Astm C39 Concrete Compression Strength Testing MachineUS$ 10000 - 14000MOQ: 1 Set
-

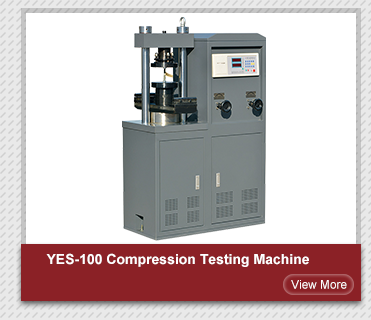

YES-100 Cement Brick Digital 100kn Hydraulic Compression Testing MachineUS$ 6997.90 - 8397.48MOQ: 1 Set
-
