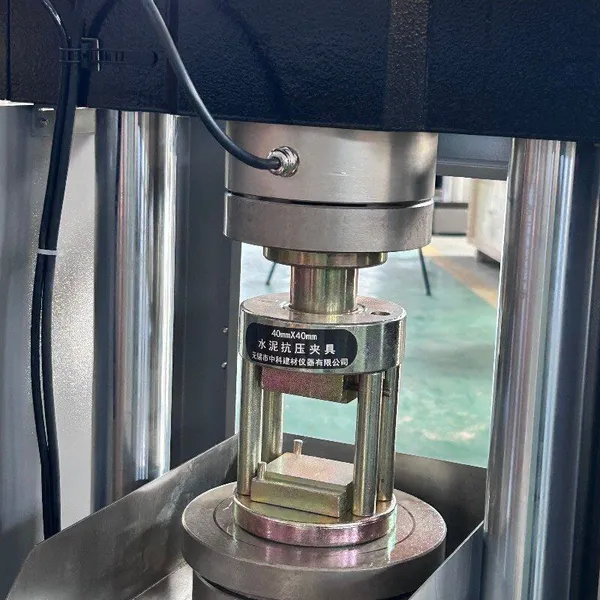

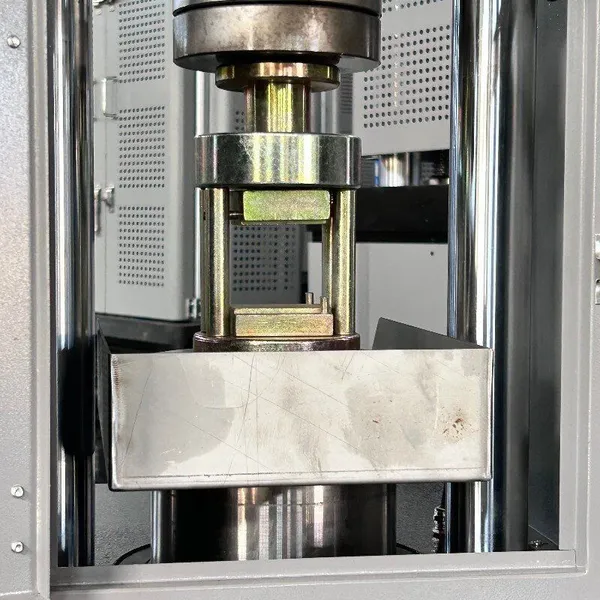

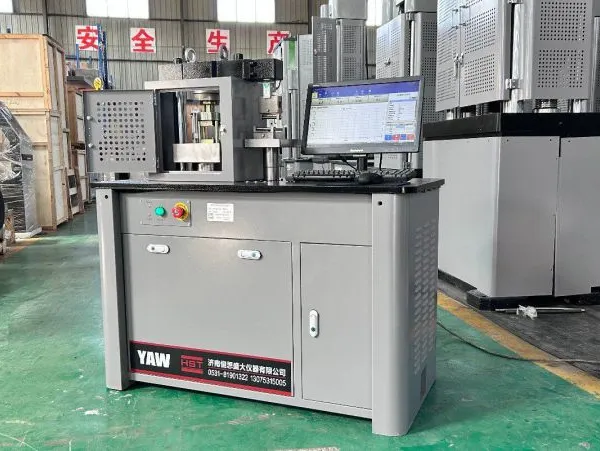

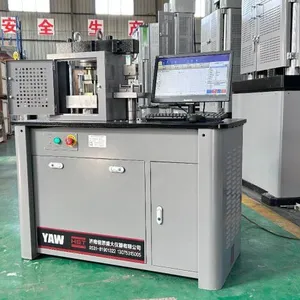

300KN 10KN Computer Control Hydraulic Servo Cement Motar Compressive Flexural Strength Testing Machine
US$ 27291.81
1 Set
US$ 26592.02
≥2 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12 Months
Accuracy:
1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cement Compressive and Flexural Test/ Compression Strength Tester Full Automatic Pressure Testing MachineUS$ 26592.02 - 27291.81MOQ: 1 Set -
HST YES-2000 200 Ton Concrete Cube Block Compression Testing MachineUS$ 9797.06 - 10496.85MOQ: 1 Set
-
HST YES-2000 200 Ton 2000 KN Concrete Cube Block Compression Testing MachineUS$ 9797.06 - 10496.85MOQ: 1 Set
-
YAW-DH Series Computer Closed-loop Control Cement Compression Testing Machine,concrete ,brick Testing ApparatusUS$ 96571.02MOQ: 1 Set
-
ASTM C109 Compression Test Machine of Hydraulic Cement MortarsUS$ 90972.70 - 94471.65MOQ: 1 Set
Warranty
12 Months
Accuracy
1
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM
power
1
Protection Class
IP55
Voltage
380 V
warranty
1 years
Product name
CTM Compression Testing Machine price
Max test force
300kN
Control way
Hydraulic control load way
Oil cylinder route
50mm
Max distance between two columns
270mm
Max compression space
180mm
Pressure plate
250*250mm
Certificate
CE ISO
Power supply
AC 3 Phase 380V 60/50Hz
Product Description
1. Application
YAW Series Electromechanical Compression Testing Machine is mainly used to determine of the compressive flexural strength of cement mortar and flexural strength of concrete/stone prism.
Space adjusting & test processes could be controlled by the software and the test result could be transferred to the software for further analysis.
It is the most advanced series in compressive testing machines. It is widely used in civil engineering areas, quality control department, universities and institutes as well as other areas and works for the mechanical performance analysis of architecture, building materials.
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
YAW Series Electromechanical Compression Testing Machine is mainly used to determine of the compressive flexural strength of cement mortar and flexural strength of concrete/stone prism.
Space adjusting & test processes could be controlled by the software and the test result could be transferred to the software for further analysis.
It is the most advanced series in compressive testing machines. It is widely used in civil engineering areas, quality control department, universities and institutes as well as other areas and works for the mechanical performance analysis of architecture, building materials.
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
3.Specification:
Model |
YAW-300D |
YAW-300G |
|
Max compression test force(kN) |
300kN |
300 |
|
Max bending test force(kN) |
/ |
10 |
|
Test Accuracy |
CLASS 1 (ISO 7500- 1) |
||
Test measurement range |
2%- 100%FS |
||
Control way |
Computer control auto loading progress |
||
Constant loading speed |
0. 1KN/S~10KN/S |
||
Test space adjustment method |
Block adjustment test space |
||
Speed |
0.01-50mm/min |
||
Max compression space |
200mm |
||
Upper and lower compression plates size |
Φ280 |
||
Size |
570*410*1340mm |
||
Power supply |
220V, 50HZ, 1.5 KW |
||
