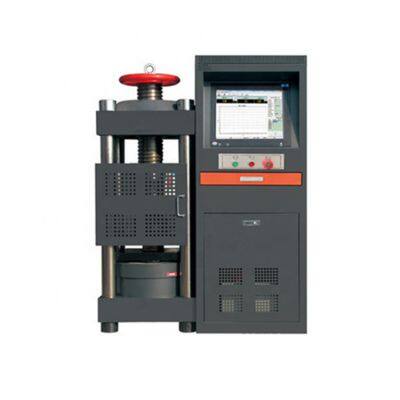

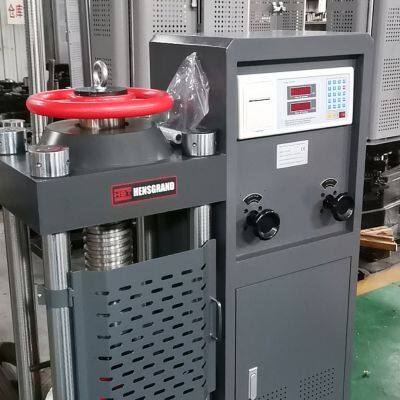

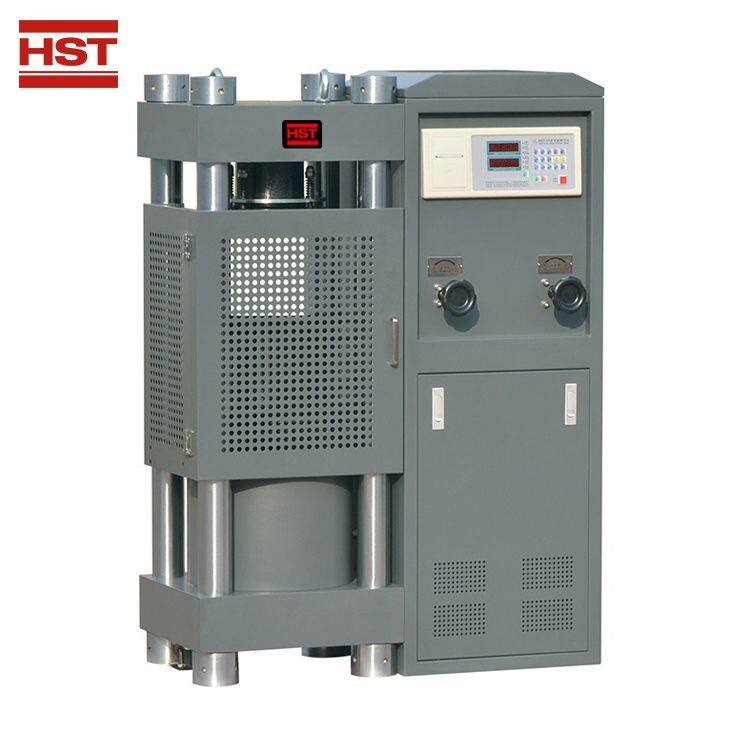

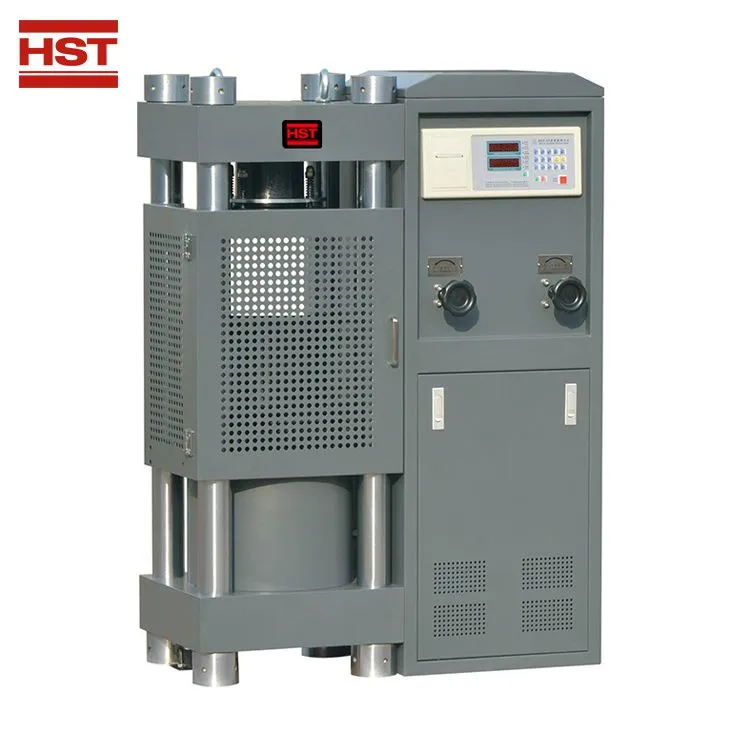

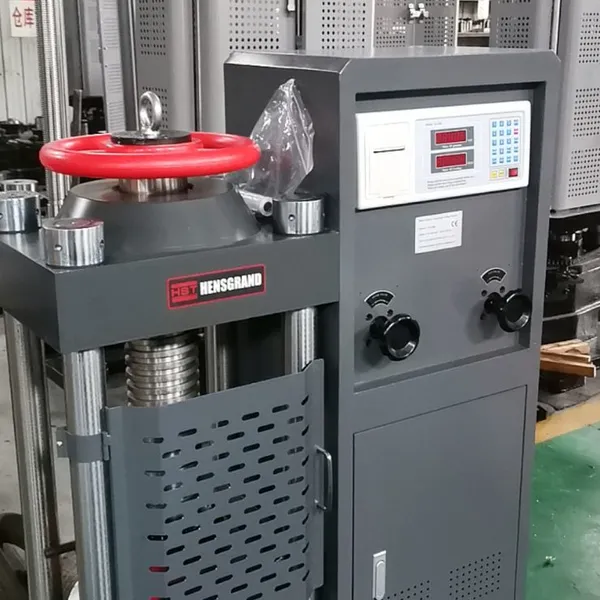

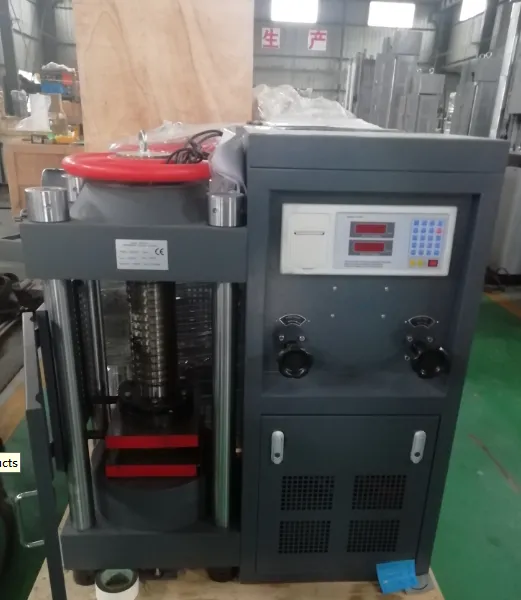

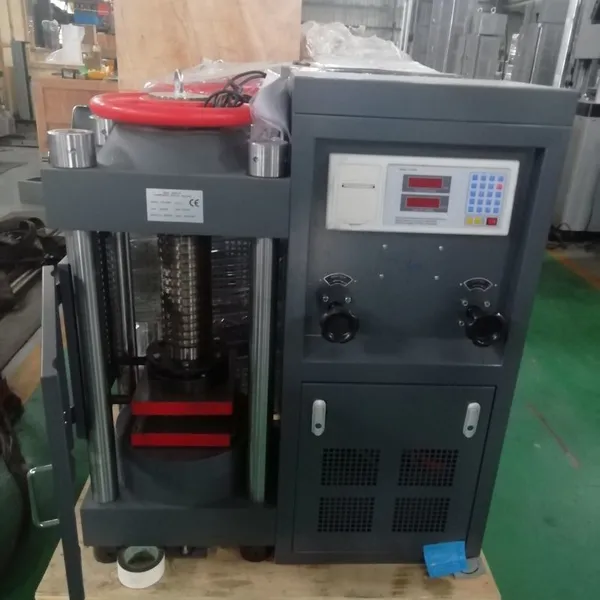

HST ASTM C39 Compressive Strength Testing Machine of Cylindrical Concrete Specimens

US$ 10496.85 1 Set

US$ 9797.06 ≥2 Set

Key Specifications

Type:

Testing Machine

Control:

Manual control loading process

Display:

Digital Display

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Accuracy 1

brand name HST

place of origin Shandong, China

customized support OEM, ODM

power 1, Hydraulic

Protection Class IP66

Voltage 380 V

warranty 1 Year

Standard CE ISO

Product name Concrete Cube Block Compression Testing Machine

Power supply AC 3 Phase 380V/220v 60/50Hz

Measuring range 4%-100% FS

piston stroke: 50mm

Test space adjusting way: electric ball screw adjusting

HST ASTM C39 Compressive Strength testing Machine of Cylindrical Concrete Specimens

1.Application:

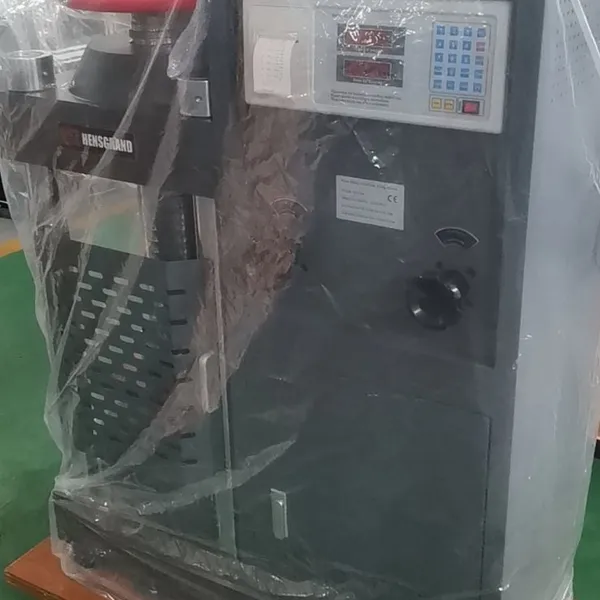

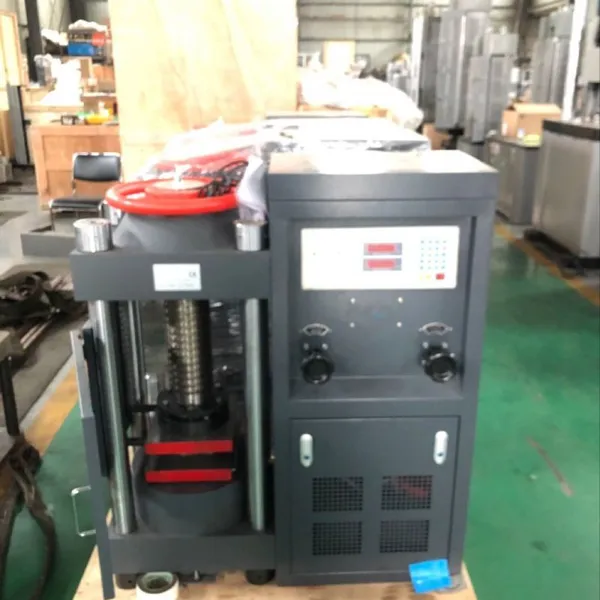

YES-2000 Digital Display Compression Testing Machine mainly used for Concrete Cube and other

material compression resist testing.

Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,

R&D institution lines. The test operation and data processing meets standard requirements.

2.Standards:

GB/T, ISO, ASTM, DIN, JIS, etc.

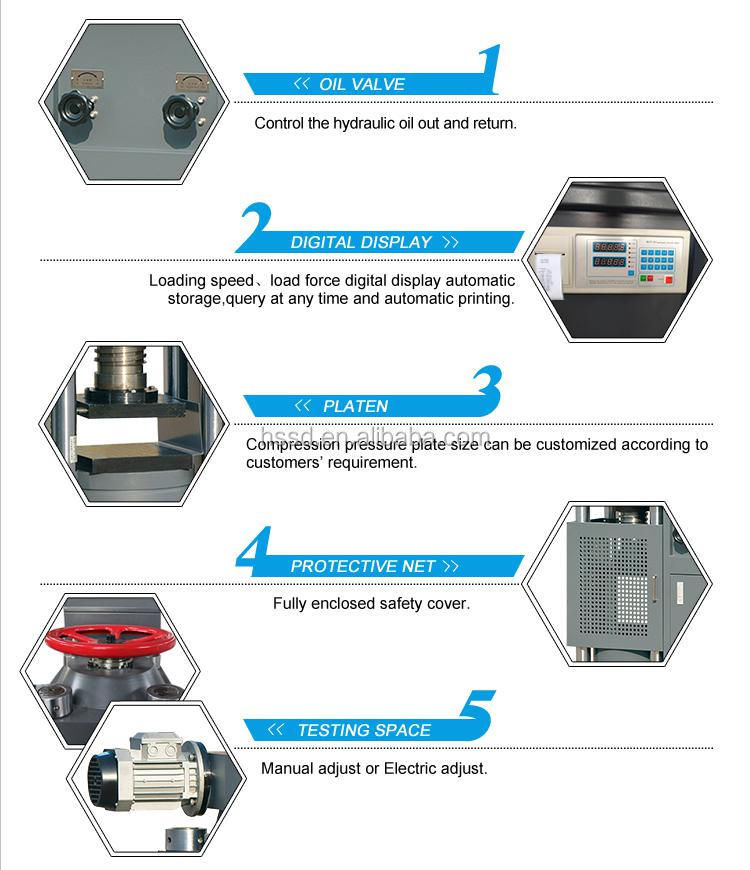

3.Main Specifications:

Model	YES-2000
Max. Load	2000 kN
Class	1 Class
Testing Space Regulating Way	Manual Ball Screw Adjust
Control Way	Manual Control Load Way
Oil Source Control Cabinet Structure Form	One-piece Bench Oil Source Control Cabinet
Range Of Test Force	4% ~100% FS
Indicating Value Accuracy	±1%
Piston Stroke	50mm
The Largest Spacing Of Upper And Lower Pressure Plate	320mm
The Largest Spacing Of Two Columns	270mm
Pressure Plates Size	250250mm(LW)
Display	LCD Digital Display
The Host Dimension	900×400×1150mm
Power Supply	1KW/AC380V
Weight	750 KG
