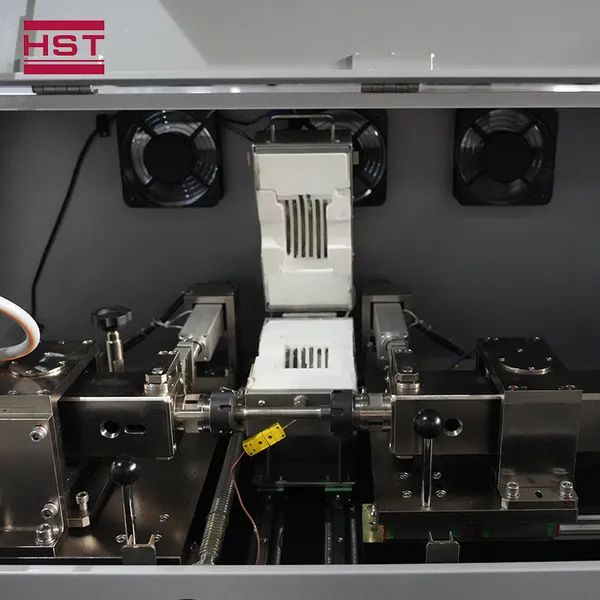

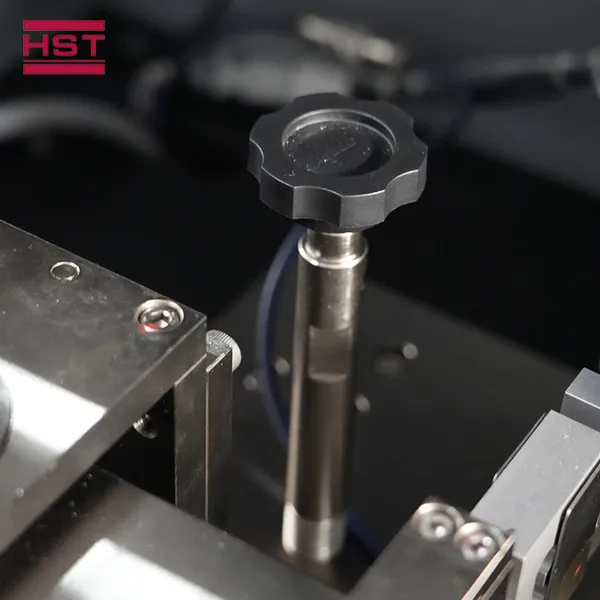

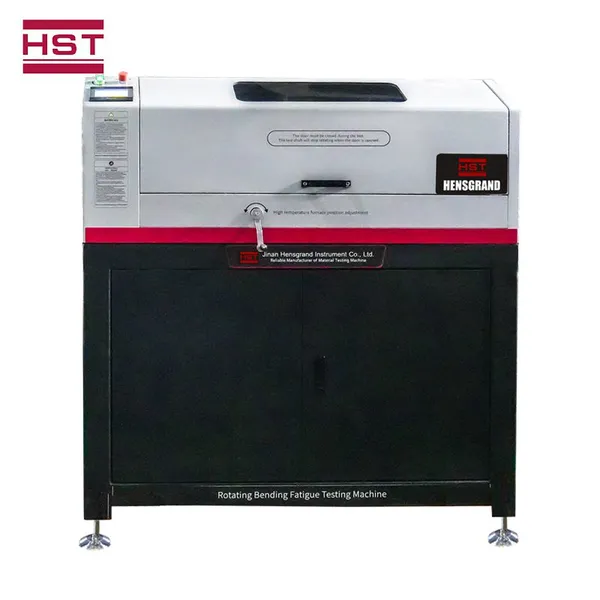

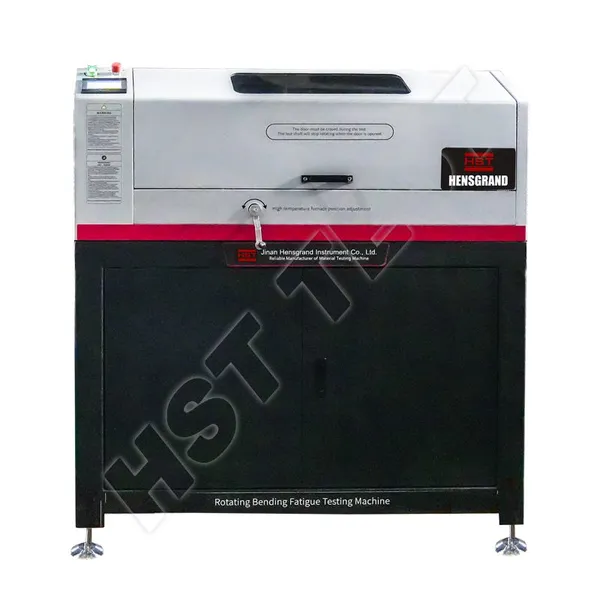

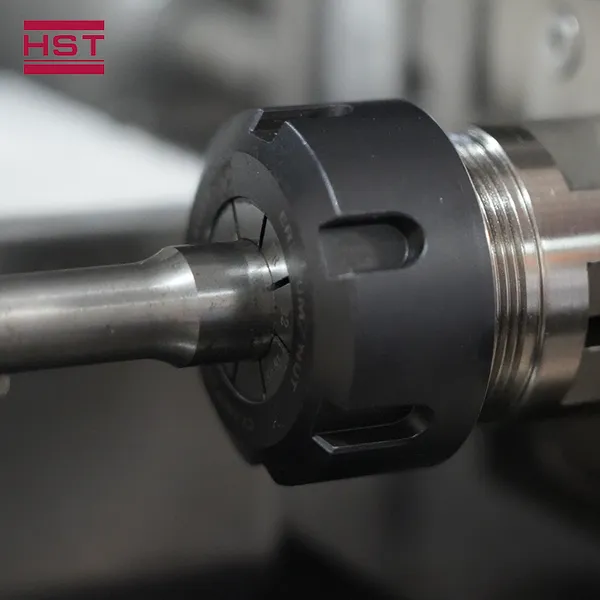

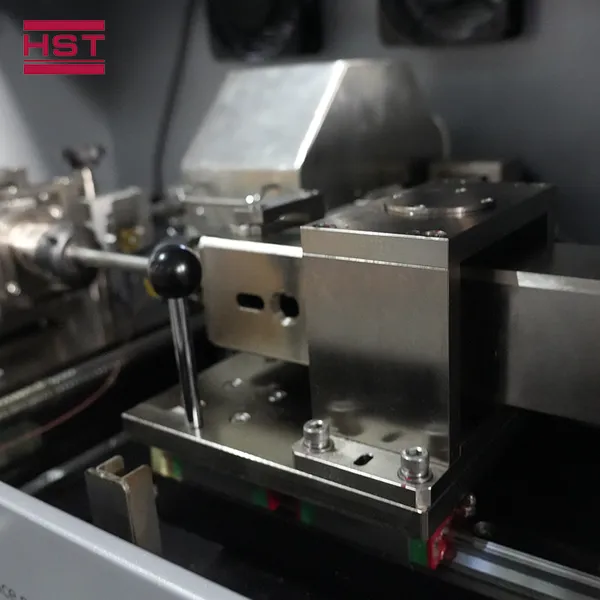

High-Temperature Rotary Bending Fatigue Testing Machine With Four-Point Loading System - HSTBF-102H
US$ 370888.70
1 - 4 Set
US$ 349895.00
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
/
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST 1000kn 100ton HST-FTA Steel Strand Anchor Connector Fatigue Testing MachineUS$ 1245626.20 - 1259622.00MOQ: 1 Set -
HST Fatigue Testing Machine CTOD Test According to ISO 12135 and ISO 15653 StandardUS$ 454863.50 - 489853.00MOQ: 1 Set
-
HST 500kN ISO15653 CTOD Test Computerized Electro-hydraulic Servo Control Spring Fatigue Testing MachineUS$ 454863.50 - 489853.00MOQ: 1 Set
-
Industrial CTOD Test Equipment | ASTM E1290-02 & E647 Servo Hydraulic Dynamic and Static Fatigue Testing MachineUS$ 60000 - 70000MOQ: 1 Set
-
250KN Dynamic Static Durability Test High Speed Fatigue Testing MachineUS$ 50000 - 80000MOQ: 1 Set
Accuracy
/
brand name
HST
place of origin
Shandong, China
Application
Bending Testing, Fatigue testing
customized support
OEM
power
200
Protection Class
/
Voltage
220 V, 380 V
warranty
1 Year
Maximum speed
6000r/min
Loading torque
100Nm
Loading lever
125mm
Loading force
80N ~ 800N
Loading force resolution
0.05N
Continuous operating Temperature range
200 ~ 800℃
Average temperate zone length
30mm
Loading motor
100W*2
Product Description
1.Function
Rotary bending fatigue testing machine, with the following functions:
Meet the requirements of four-point tensile test of cylindrical specimen of GB/T 4337-2015, and carry out the test;
Can be tested at high temperature or normal temperature;
Servo motor drive, speed stepless adjustment;
Counting function, accurately record the number of sample rotation;
Servo motor loading, force sensor to measure the loading force (moment);
The test speed can be changed during operation;
The loading force (bending moment) can be changed during operation;
Automatically shut down after sample failure and save data;
Calculate and process data, generate and print test reports.
2.Applicable standards:
(1)GB/T 4337-2015 "Rotating Bending Method for Fatigue test of Metal Materials"
(2)GB/T 2611-2007 "General Technical Requirements for Testing Machines"
(3) HB5152-1996 "Metal Room Temperature Rotational Bending Fatigue Test Method"
(4) HB5153-1996 "Metal High Temperature Rotational Bending Fatigue Test Method"
Specifications:
Specifications:
MODEL |
HSTBF-102H |
Maximum speed |
6000r/min |
Loading torque |
100Nm |
Loading lever |
125mm |
Loading force |
80N ~ 800N |
Force value variation during operation |
≤±2% |
Continuous operating Temperature range |
200 ~ 800℃ |
Power: Main rotary motor |
850W |
Heating furnace |
1kW |
Voltage and frequency |
220VAC,60Hz,Single Phase |
