Home > Instruments & Meters > Test Instrument > Test Machine > HST-EFT30A 30KN,Electronic Servo Dynamic Fatigue Testing Machine 30KN Fatigue Testing Machine
HST-EFT30A 30KN,Electronic Servo Dynamic Fatigue Testing Machine 30KN Fatigue Testing Machine
US$ 218334.48
1 - 2 Set
US$ 196501.04
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5~1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HFT25B 25kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 25kN Fatigue Testing MachineUS$ 342897.10 - 394681.56MOQ: 1 Set -
HST-EFT2A 2KN Electronic Servo Dynamic Fatigue Testing Machine 2000N Fatigue Testing MachineUS$ 150874.73 - 177186.83MOQ: 1 Set
-
PWS-250 250KN COTD K1C ASTM E647 IS0 12108 CTOD Test Crack Tip Opening Displacement Test Dynamic Fatigue Testing MachineUS$ 48000 - 50000MOQ: 1 Set
-
CTOD Test Crack Tip Opening Displacement Test Fatigue Dynamic Testing MachineUS$ 48000 - 50000MOQ: 1 Set
-
Pre-crack Test and CTOD Test According to ISO 12135US$ 4800 - 50000MOQ: 1 Set
Accuracy
≤± 0.5~1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
0.75KW
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Electronic Servo Dynamic Fatigue Testing Machine
Model
HST-EFT30A
Testing machine accuracy
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1%
Maximum static force (kN)
30
Load range
0.2%-100%FN
Frequency Range
0.01-10Hz(other optional)
Displacement measuring (mm)
100(±50)mm
Displacement measurement resolution(mm)
0.001
Displacement measurement
±0.5%
Power supply
0.75KW 1 phase AC220V±10% 50Hz
HST-EFT30A Electronic Servo Dynamic Fatigue Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application :
Mainly used to do the dynamic and static mechanical fatigue test for materials and parts . The machine could also complete the
fatigue test of other structural parts with different fixture. The machine also can be used for materials or structural parts,
auto parts and other static mechanical performance test. It is a popular machine for the university, research institutes,
enterprises and other experimental equipment to test.
fatigue test of other structural parts with different fixture. The machine also can be used for materials or structural parts,
auto parts and other static mechanical performance test. It is a popular machine for the university, research institutes,
enterprises and other experimental equipment to test.
Standards:
GB / T2611-2007 《Tester General technical requirements》
GB / T16826-2008 《Hydraulic servo universal testing machine》
GB 3075 《Axial fatigue testing metal》
JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
GB / T228-2010 《Metallic materials at room temperature tensile test method 》
HB5287 Axial Loading Fatigue Test Method for Metal Materials
EN10002 Tensile Test of Metallic Materials
JJG 556-2011 Axial Force Fatigue Testing Machine
HG／T 2067-1991 Technical specifications for rubber fatigue testing machine
ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture toughness
ASTM E1820 2001 measure of fracture toughnes
GB / T16826-2008 《Hydraulic servo universal testing machine》
GB 3075 《Axial fatigue testing metal》
JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
GB / T228-2010 《Metallic materials at room temperature tensile test method 》
HB5287 Axial Loading Fatigue Test Method for Metal Materials
EN10002 Tensile Test of Metallic Materials
JJG 556-2011 Axial Force Fatigue Testing Machine
HG／T 2067-1991 Technical specifications for rubber fatigue testing machine
ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture toughness
ASTM E1820 2001 measure of fracture toughnes
Specifications:
Model | HST-EFT30A |
Max dynamic load | 30000N |
Load frame | Two-column platform type, cross beam electric adjustment |
Testing machine accuracy | Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
Load range | 0.2%-100%FN |
Displacement measurement range | 100(±50)mm |
Displacement measurement resolution | 0.001mm |
Displacement measurement accuracy | ±0.5% |
Relative error of deformation indication | ±0.5% |
Frequency Range | 0.01-10Hz(other optional) |
Force coaxiality | ≤8% |
Effective distance between columns | 300mm |
Maximum test space | 400mm |
Main test waveforms | Sine wave, square wave, triangle wave, ramp wave, random waveform and external input waveform; can realize multiple sine wave forms with different frequency or amplitude combinations; random wave forms with user-defined parameters; user-imported custom wave forms |
Test control method | Load, displacement, deformation control method |
Maximum number range | 108 |
Counting error | ≤±1 |
Coaxality with load | ≤5% |
Accessories | Standard compression grip |
Optional support tensile ,bending and other accessories | |
Power supply | 0.75KW, 1 phase, AC22V±10%, 50Hz |
Introduction of main units:

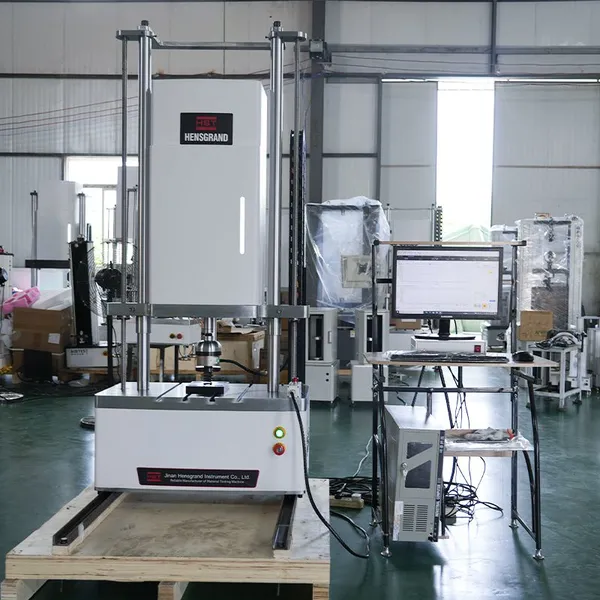

Main host load frame:
Two-column frame structure with servo actuator on top (as shown )
2.Worktable:Multifunctional operating platform Platform with T-type installation extension
3.Upper beam:Electric
lifting, manual cross locking
lifting, manual cross locking
4.Column: High stiffness frame column
5.Shield Electric cylinder
6. Screw
Servo linear actuator:
.Maximum test force:30000N
.Maximum stroke: ± 50mm (total stroke 100mm);
.Special electric servo actuator suitable for dynamic and static tests;
.Special process treatment on the surface of the piston rod, and adopt a special process for high finish treatment, suitable for long-term dynamic test;
.Large lead and large stiffness, strong anti-directional ability;
.Actuator amplitude limit position design to avoid damage caused by runaway control;
.Actuator amplitude limit position design to avoid damage caused by runaway control;
.The system adopts anti-backlash device, the force value is automatically centered, the lateral force is reduced, the impact during the high-frequency tension and compression test is reduced, and the test waveform is improved
