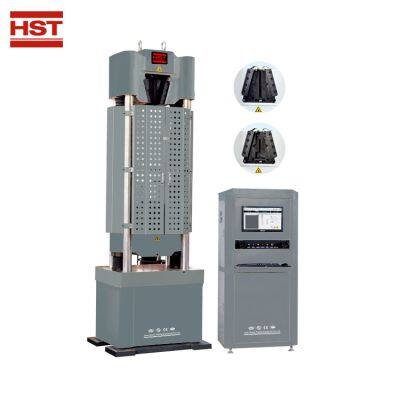

HST WE-600D 60T 600kN Digital Display Hydraulic Universal Testing Machine 600KN Hydraulic Universal Testing Machine
US$ 6400 - 7200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST WE-2000D 200T 2000kN Big Load Capacity High Quality Computer Digital Display Hydraulic Universal Testing MachineUS$ 167949.60 - 171448.55MOQ: 1 Set -
HST WAW-1000E 100T 1000kN Computer Control Hydraulic Universal Testing Machine 1000 KN Hydraulic Universal Testing MachineUS$ 13000 - 14500MOQ: 1 Set
-
HST WEW-300E 30T Hydraulic Universal Testing Machine 300 Kn Computer Hydraulic Universal Testing MachineUS$ 7280 - 8280MOQ: 1 Set
-
HST WEW-1000D 100T 1000kN Computer Display Hydraulic Universal Testing MachineUS$ 8500 - 9800MOQ: 1 Set
-
HST 1000kn Electromechanical Universal Testing Machine for TensileUS$ 89573.12 - 90972.70MOQ: 1 Set
Accuracy
≤± 1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer Display Hydraulic Universal Testing Machine
Model
HST WE-600D
Load Capacity
600kN
Calibration standard
Class 1
Testing load Accuracy
±1%
Load Measuring Range
2%~100%FS
Piston Speed
0-70mm/min Manual Adjustment
Lower beam to adjust speed
120mm/min
Power supply
3 phase, AC380V±10%, 50Hz
HST-WE-600D 600kN Digital Display
Hydraulic Universal Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
WE Series Digital Display Hydraulic Universal Testing MachineUniversal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.
Types of specimens and materials:
* Metals:wire, rod, tube, strip, plate, strip
* Fasteners:tensile, proof, single and double shear
* Construction materials:reinforcement bar, wire, mesh, folding, compression of concrete and components.,etc.
Applied Standards:
* Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
* Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
WE Series Digital Display Hydraulic Universal Testing MachineUniversal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.
Types of specimens and materials:
* Metals:wire, rod, tube, strip, plate, strip
* Fasteners:tensile, proof, single and double shear
* Construction materials:reinforcement bar, wire, mesh, folding, compression of concrete and components.,etc.
Applied Standards:
* Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
* Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Specifications:
Product Model |
HST WE-600D |
|
Number of columns |
6 (4 columns and 2 screws) |
|
Control Way |
Loading Process Manual Control |
|
Load Capacity |
600kN |
|
Calibration standard |
ISO 7500 |
|
Calibration standard |
Class 1 |
|
Testing load Accuracy |
±1 |
|
Load Measuring Range |
2%～100%FS |
|
Load Resolution |
0.01kN |
|
Piston Speed |
0-70mm/min Manual Adjustment |
|
Lower beam to adjust speed |
120mm/min |
|
Accuracy of Stress Rate Control |
±0.5% |
|
Overload Protection |
≥5% of Full Range |
|
Mainframe parameters |
||
Max. Tensile Testing Space |
800mm |
|
Max. Compression Testing Space |
650mm |
|
Distance between two columns |
500mm |
|
Max. Piston stroke |
250mm |
|
Clamping Method |
Manual |
|
Round Specimen Clamping Range |
Φ10~26mm, Φ26~45mm; Optional:Φ4-10mm; |
|
Flat Specimen Clamping Range |
0-30mm |
|
Flat Specimen Clamping Width |
90x90mm |
|
Compression Platen Size |
φ160 mm |
|
Span Of Bending Rollers |
450 mm |
|
Width Of Bending Rollers |
120 mm |
|
Load frame dimension |
760×690×2060mm |
|
Oil power dimension |
630×580×1280mm |
|
Weight |
1850kg |
|
Power supply |
3 phase, AC380V±10%, 50Hz |
|
Operating Temperature |
0 to +38° C (+32 to +100° F) |
|
Humidity Range |
10% to 90% non-condensing |
|
NOTE: 1. Extra wide and/or extra height frames are available. 2. Power supply system is completely customizable. 3. Specifications are subject to change without notice. |
||

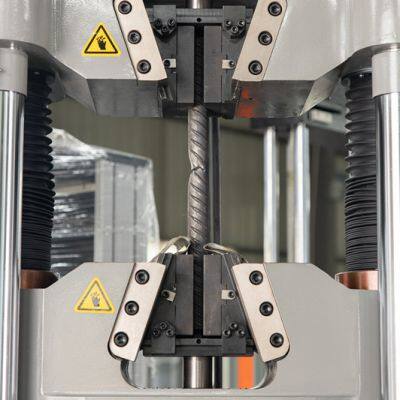

Other tensile grip (optional)
Test area for compression /flexural / bending/shear (optional)
In the lower test area, various testing devices may be coupled, such as compression plates, or test devices for flexural, bending.punching, etc.
Host Features:
* Adopts that fuel tank is mounted under the host, tensile test space is located above the host, compression, bending, shearing test space is located under the host, means between beam and worktable.
* The structure is designed with solid four column and two screw, the machine has strong stability.
* Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.
* Fuel tank adopts gap sealed, improving the measurement accuracy and also extending service lifetime.
Digital Controller Features:
* Test force - time curve, test force, test force peak and yield strength with a significant yield characteristics of the material are displayed by LCD, so the experimental data can be observed
* intuitively and conveniently.
* Equipped with micro-printer, the experimental results can be queried and printed.
Security:
* When the test force exceeds 3% of the maximum test force, overload protection, pump motor will stop.
* When the piston rises to the upper limit position, travel protection, pump motor will stop.
Company Profile
Recommend Products
50N-5KN Single Column Universal Testing Machine |
Electronic Universal Testing Machine with 10kN Pneumatic Grips |
Electronic Universal Testing Machine with Hydraulic grips |
Electronic Universal Testing Machine with Temperature Chamber |
50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine |
100kN -2000kN Servo Hydraulic Universal Testing Machine |
Customer Photos
Exhibition
Certifications
FAQ:
Are your company a trading one or a factory ?
Factory + trade (integration),19 years focusing on test instruments field,14 yearsexporting experience. How to choose the most suitable products? Our professional team will give you the best suggestion as long as you tell us what
kind of test you need to do and the required specification.
How to operate the machine ?
kind of test you need to do and the required specification.
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience.Our goal is to make you satisfied.
What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part
parts change, necessarily, our engineers may go to your place for better service.
parts change, necessarily, our engineers may go to your place for better service.
Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
