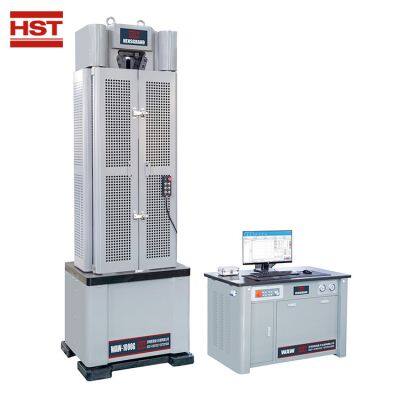

HST WEW-1000D 100T 1000kN Computer Display Hydraulic Universal Testing Machine
US$ 8500 - 9800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST 1000kn Electromechanical Universal Testing Machine for TensileUS$ 89573.12 - 90972.70MOQ: 1 Set -
HST-WAW-F SERIES 2000KN 3000KN Single Test Space Servo- Hydraulic Universal Testing Machine Servo Control Strength TesterUS$ 75000 - 80000MOQ: 1 Set
-
HST-WAW-F SERIES 300KN 600KN Single Test Space Servo- Hydraulic Universal Testing Machine Servo Control Strength TesterUS$ 12900 - 15900MOQ: 1 Set
-
Factory Direct Customized Chain Steel Strand Tensile Test Hydraulic Tensile Testing MachineUS$ 193491.94 - 200020.98MOQ: 1 Set
-
HST Manufacturing Universal Tensile Strength Tester / Universal Testing Machine PriceUS$ 131210.63 - 138327.49MOQ: 1 Set
Accuracy
≤± 1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
2.75KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer Display Hydraulic Universal Testing Machine
Model
HST WEW-1000D
Load Capacity
1000kN
Calibration standard
Class 1
Testing load Accuracy
±1%
Load Measuring Range
2%~100%FS
Load Resolution
1/500,000 of FS
Manual displacement control speed rang
0~100mm/min
Power supply
2.75kW, 3 phase, AC380V±10%, 50Hz
HST WEW-1000D 1000kN Computer Display
Hydraulic Universal Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
WEW Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic
materials for tension, compression, bending and shearing testing.
Types of specimens and materials:
* Metals:wire, rod, tube, strip, plate, strip
* Fasteners:tensile, proof, single and double shear
* Construction materials:reinforcement bar, wire, mesh, folding, compression of concrete and components.,etc.
Applied Standards:
* Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
* Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
WEW Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic
materials for tension, compression, bending and shearing testing.
Types of specimens and materials:
* Metals:wire, rod, tube, strip, plate, strip
* Fasteners:tensile, proof, single and double shear
* Construction materials:reinforcement bar, wire, mesh, folding, compression of concrete and components.,etc.
Applied Standards:
* Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
* Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Specifications:
Product Model |
HST WEW-1000D |
|
Number of columns |
6 (4 columns and 2 screws) |
|
Load Capacity |
1000kN |
|
Load Capacity |
100000kgf |
|
Calibration standard |
ISO 7500 |
|
Calibration standard |
Class 1 |
|
Testing load Accuracy |
±1% |
|
Load Measuring Range |
2%～100%FS |
|
Load Resolution |
1/500,000 of FS |
|
Manual displacement control speed rang |
0～100mm/min |
|
Displacement measurement resolution |
0.01mm |
|
Displacement measurement accuracy |
Better than ≤±0.5% |
|
Deformation measuring range |
1%～100%FS |
|
Deformation resolution |
1/500000FS of the max deformation |
|
Deformation accuracy |
≤±0.5% of Indicating Value |
|
Overload Protection |
≥5% of Full Range |
|
Main frame parameters |
||
Max. Tensile Testing Space |
950mm |
|
Max. Compression Testing Space |
700mm |
|
Column center space |
560mm |
|
Column diameter |
Φ72mm |
|
Max. Piston stroke |
250mm |
|
Piston diameter |
Φ230mm |
|
Loading rate range |
0.02%-2%FS |
|
Max speed of piston moving without load |
100 mm/min |
|
Cross beam adjustment for max speed |
About 220 mm/min |
|
Cross beam moving motor power |
0.4KW |
|
Operating Temperature |
0 to +38° C (+32 to +100° F) |
|
Humidity Range |
10% to 90% non-condensing |
|
Hydraulic servo oil source parameters |
||
Max. pressure |
25MPa |
|
Max. oil pump flow |
4 L/min |
|
Oil filter accuracy |
10um |
|
Main oil pump motor power |
2.2KW |
|
Oil tank capacity |
60L |
|
Accessory parameters |
||
Clamping mode |
Built-in wedge type hydraulic automatic clamping |
|
Overall dimensions of the jaws |
90x90mm |
|
Round specimen clamping range |
Φ13-26, Φ26-40mm,Optional:Φ6-13mm; |
|
Flat specimen clamping thickness |
0-20mm;Optional:20-40mm |
|
Compression plate dimensions |
Φ160mm |
|
Machine parameter |
||
Load frame dimension |
830x720x2160mm |
|
Oil power dimension |
1200x680x750mm |
|
Total weight |
2450kg |
|
Power supply |
2.75kW, 3 phase, AC380V±10%, 50Hz |
|
NOTE: 1. Extra wide and/or extra height frames are available. 2. Power supply system is completely customizable. 3. Specifications are subject to change without notice. |
||
Other tensile grip (optional)
Test area for compression /flexural / bending/shear (optional)
In the lower test area, various testing devices may be coupled, such as compression plates, or test devices for flexural, bending.punching, etc.
Company Profile
Recommend Products
50N-5KN Single Column Universal Testing Machine |
Electronic Universal Testing Machine with 10kN Pneumatic Grips |
Electronic Universal Testing Machine with Hydraulic grips |
Electronic Universal Testing Machine with Temperature Chamber |
50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine |
100kN -2000kN Servo Hydraulic Universal Testing Machine |
Customer Photos
Exhibition
Certifications
FAQ:
Are your company a trading one or a factory ?
Factory + trade (integration),19 years focusing on test instruments field,14 yearsexporting experience. How to choose the most suitable products? Our professional team will give you the best suggestion as long as you tell us what
kind of test you need to do and the required specification.
How to operate the machine ?
kind of test you need to do and the required specification.
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience.Our goal is to make you satisfied.
What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part
parts change, necessarily, our engineers may go to your place for better service.
parts change, necessarily, our engineers may go to your place for better service.
Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
