Home > Instruments & Meters > Test Instrument > Test Machine > 1000kn 2000kn 3000kn Automatic Computer Controlled Hydraulic Servo Universal Testing Machine Hydraulic Universal Testing Machine

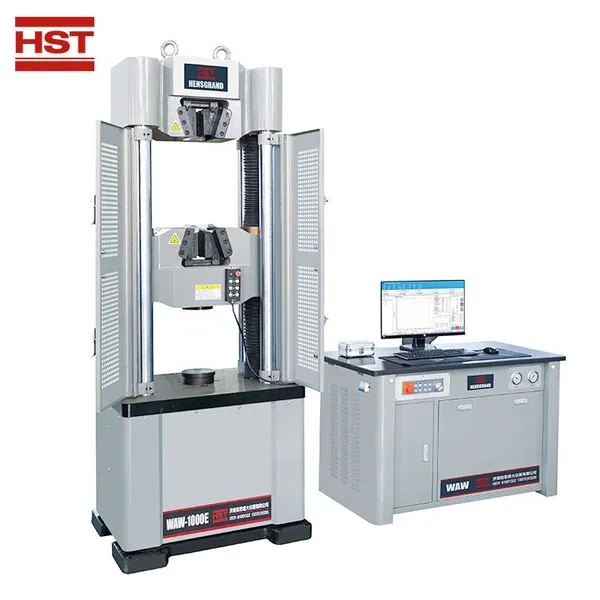

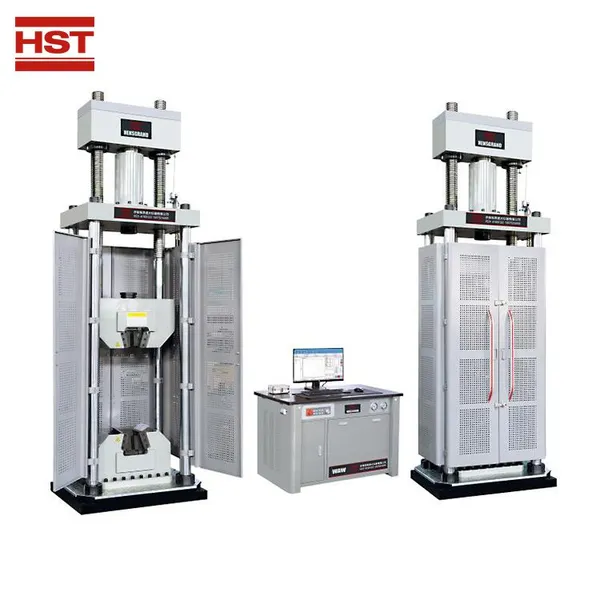

1000kn 2000kn 3000kn Automatic Computer Controlled Hydraulic Servo Universal Testing Machine Hydraulic Universal Testing Machine
US$ 7500 - 18000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Computer Servo Control Electronic Universal Testing Machine With Universal Testing Machine 60T on SaleUS$ 5000 - 25000MOQ: 1 Set -
3000KN Manufacturer Direct Computer Control Servo Hydraulic Universal Testing MachineUS$ 4500 - 20000MOQ: 1 Set
-
1200KN Universal Tensile Computer Servo Control Strength 1 Year Warranty Hydraulic Universal Tensile Testing MachineUS$ 139958.00 - 141357.58MOQ: 1 Set
-
WAW 600kn Hydraulic Universal Testing Equipment With Accessories 1-Year WarrantyUS$ 62981.10 - 104968.50MOQ: 1 Set
-
ASTM A370 600kn Hydraulic Tensile Strength Testing Machine Steel Reinforcing Bar Equipment With Competitive 220v PriceUS$ 10000 - 13000MOQ: 1 Set
Warranty
12months
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, Tensile, comprssion, bending test
customized support
OEM, ODM
power
2.5KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Hydraulic universal test machine
Power supply
380V, 50HZ, 3P or customized
Sturcture
4 columns and 2 screws
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Protection way
Overload, overcurrent, protection net, etc
Max.piston stroke
250mm
Products Description
Application
This machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It is capable of testing the characters of materials on physical & technology properties.
It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and
quality control.
It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and
quality control.
Equipped with the computer & Software & printer, it can display, record, process and print the test results, and control test procedures as per the set program and can draw test curves automatically in real time.
Standards
Load meets or exceeds the following standards:ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
MODEL |
WAW-300A |
WAW-600A |
WAW-1000A |
WAW-2000A |
WAW-3000A |
WAW-4000A |
|||||
Max. Load capacity(kN) |
300 |
600 |
1000 |
2000 |
3000 |
4000 |
|||||
Accuracy of testing load(%) |
±0.5 |
||||||||||
Accuracy of deformation(%) |
±0.5 |
||||||||||
Test Range |
1%-100% |
||||||||||
Max. Tensile space(mm) |
700 |
780 |
850 |
800 |
1000 |
1000 |
|||||
Max. Compression space(mm) |
300 |
650 |
720 |
800 |
1000 |
1000 |
|||||
Actuator stroke(mm) |
250 |
250 |
250 |
250 |
300 |
300 |
|||||
Max. Loading speed (mm/min) |
100 |
100 |
75 |
50 |
50 |
50 |
|||||
Clamping method |
Hydraulic Automatic Clamp With Wedge grip |
||||||||||
Round insert(mm) |
Ф10-32 |
Φ10-40 |
Φ13-40 |
Φ15-70 |
Φ15-70 |
Φ15-80 |
|||||
Flat insert(mm) |
0-30 |
0-40 |
0-60 |
10-70 |
10-80 |
10-80 |
|||||
Dimensions of load frame(mm) |
780×630×2750 |
950×800×3000 |
1078×960×3360 |
1248×1140×4050 |
1508×1300×4500 |
||||||
Weight(kg) |
1500 |
3000 |
5000 |
8500 |
11500 |
||||||
